Product description: Tuya - intelligent energy consumption meter 85 - 265 V - 3 phase - WiFi - Android / iOS application
The Tuya intelligent 3-phase WiFi energy meter is an essential tool for people who want to consciously manage energy consumption in their home or workplace. Thanks to the possibility of ongoing measurement and archiving of energy consumption, you will be able to monitor and optimize the use of electricity, which translates into savings and a more ecological approach to the use of electricity. The device allows energy control independently for each phase , which allows for detailed monitoring of parameters such as voltage, current or power from any location. Thanks to integration with the Tuya application and the ability to voice control via Google Home or Alexa, you can conveniently manage the device from your smartphone or using voice commands. Additionally, easy installation on a DIN rail and compact dimensions make installation of the device simple and quick.
Tuya - intelligent energy consumption meter 85 - 265 V - 3 phase - WiFi - Android / iOS application.
The meter allows you to remotely monitor energy consumption.
Special features
- Energy control for each phase: thanks to the ability to independently control voltage, current and power for each phase, you can monitor in detail the energy consumption of individual electrical circuits.
- Remote power control: the device allows you to remotely turn the power on and off, which allows you to control electrical devices even from a distance, using a mobile application.
- Auto Scenarios: The Auto Scenarios feature allows you to perform specific actions when preset measurements are reached, such as automatically turning off the power when the set voltage is exceeded.
- Communication with 2.4 GHz WiFi: the device provides a stable Internet connection, enabling easy integration with the mobile application and voice control.
- DIN Rail Mounting: The meter can be mounted on a standard DIN rail, making installation simple and quick.
- Prepayment function: if the set energy limit is exceeded, you will receive a notification, which allows you to avoid unexpected costs and consciously manage electricity consumption.
Remote control via the Tuya application
The application enables convenient remote control of electrical installation circuits without the need to physically be in a given place. Through the application on your mobile device, you can easily turn on or turn off the electricity in individual circuits. Mechanical switching of the built-in relay occurs simultaneously for each phase, which ensures effective power management. Thanks to the ability to quickly operate with one click, you can turn off the electricity in the entire house or turn off a specific device , such as a heat pump. This functionality saves energy and provides greater control over power consumption, which translates into comfort of use.
The meter does not use an additional gateway, only a connection to a WiFi network is required for proper operation.

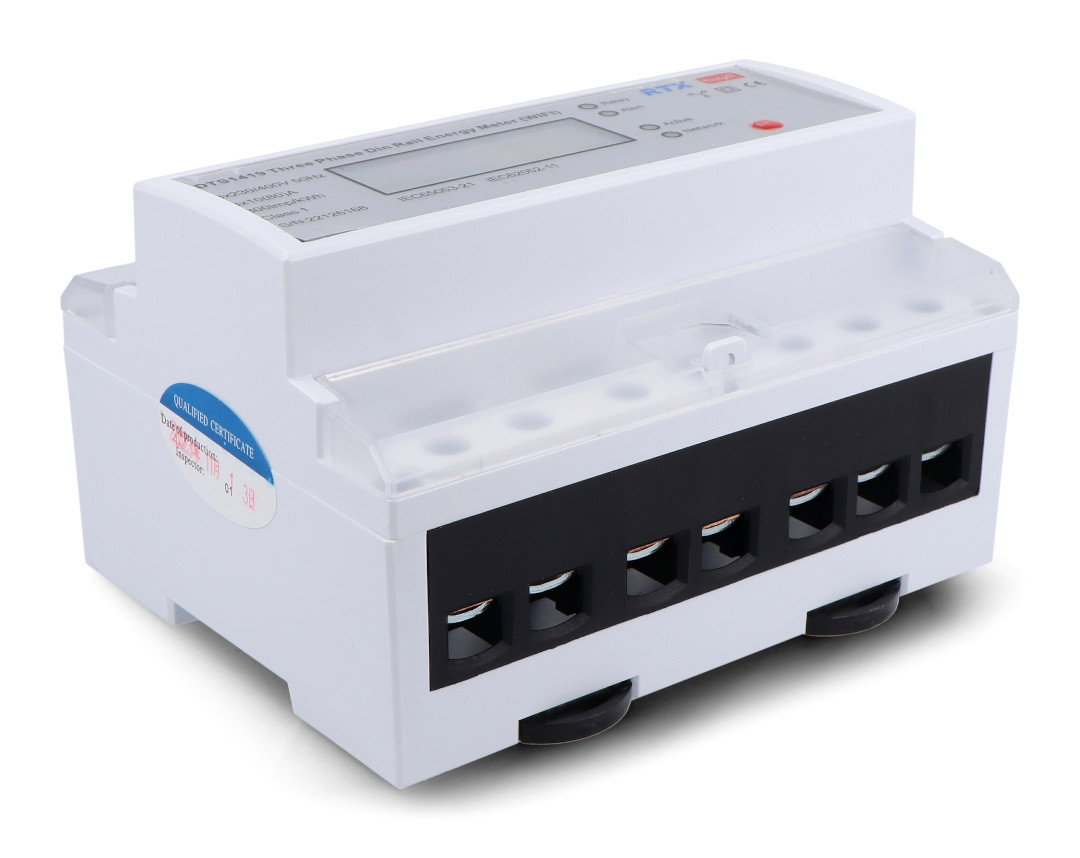

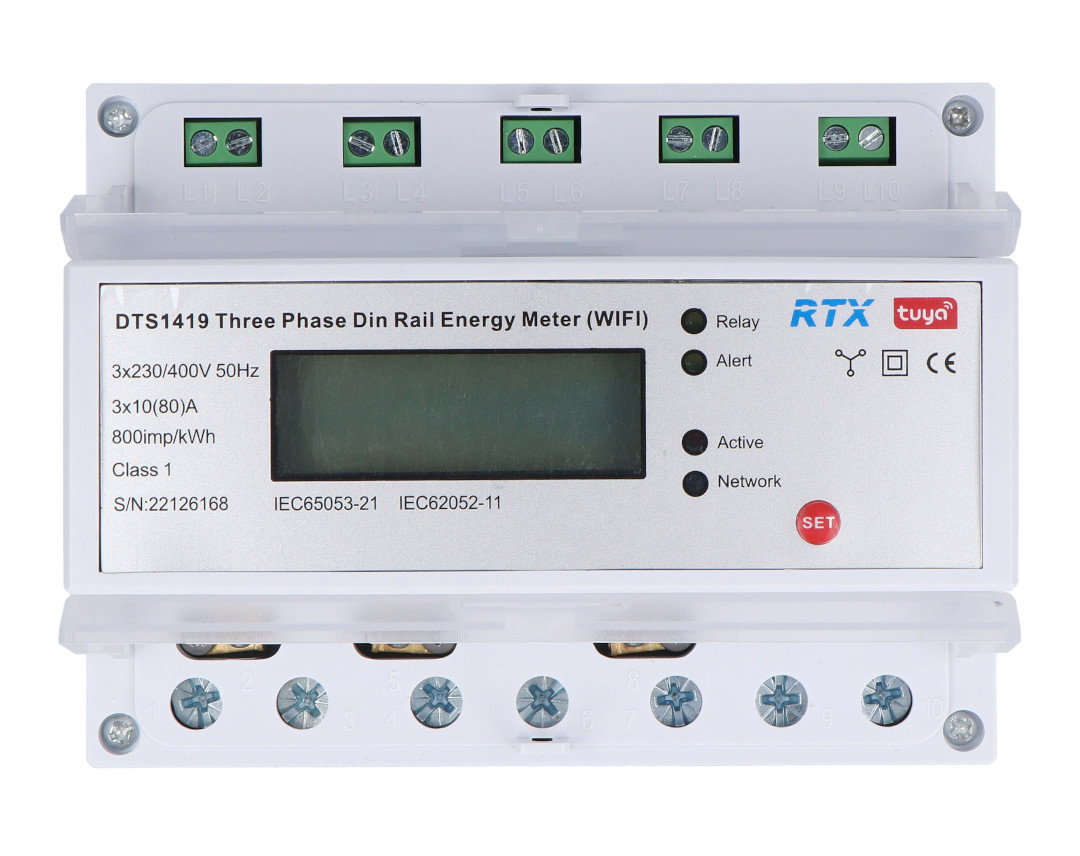

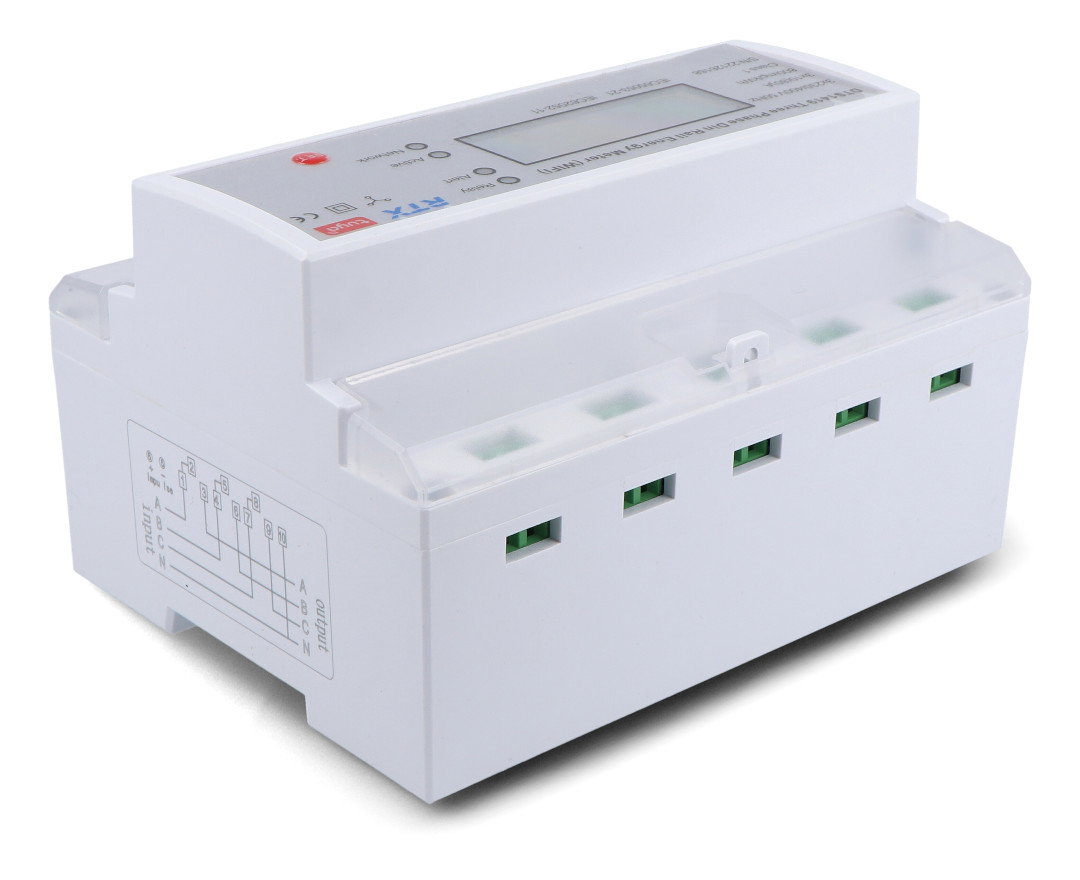

Tuya - intelligent 3-phase energy meter.
Power consumption meter pins
- L1 - first phase wire 230 V
- L2 - second phase wire 230 V
- L3 - third phase wire 230 V
- N - power supply, neutral wire - ground
Technical specifications of the meter
- Control range: unlimited (works with mobile Internet)
- Communication: WiFi 2.4 Ghz
- WiFi range: up to 30 m (depending on ambient conditions)
- Supply voltage: 85 V to 265 V AC / 50 Hz to 60 Hz
- Maximum current: 80 A
- Maximum current per channel: 10 A
- Number of phases: 3
- Measurement frequency: 800 / 1 kWh
- Operating temperature: 0 to 50°C
- Dimensions: 126 x 96 x 80 mm
The device does not require a gateway - it connects directly to the WiFi router.

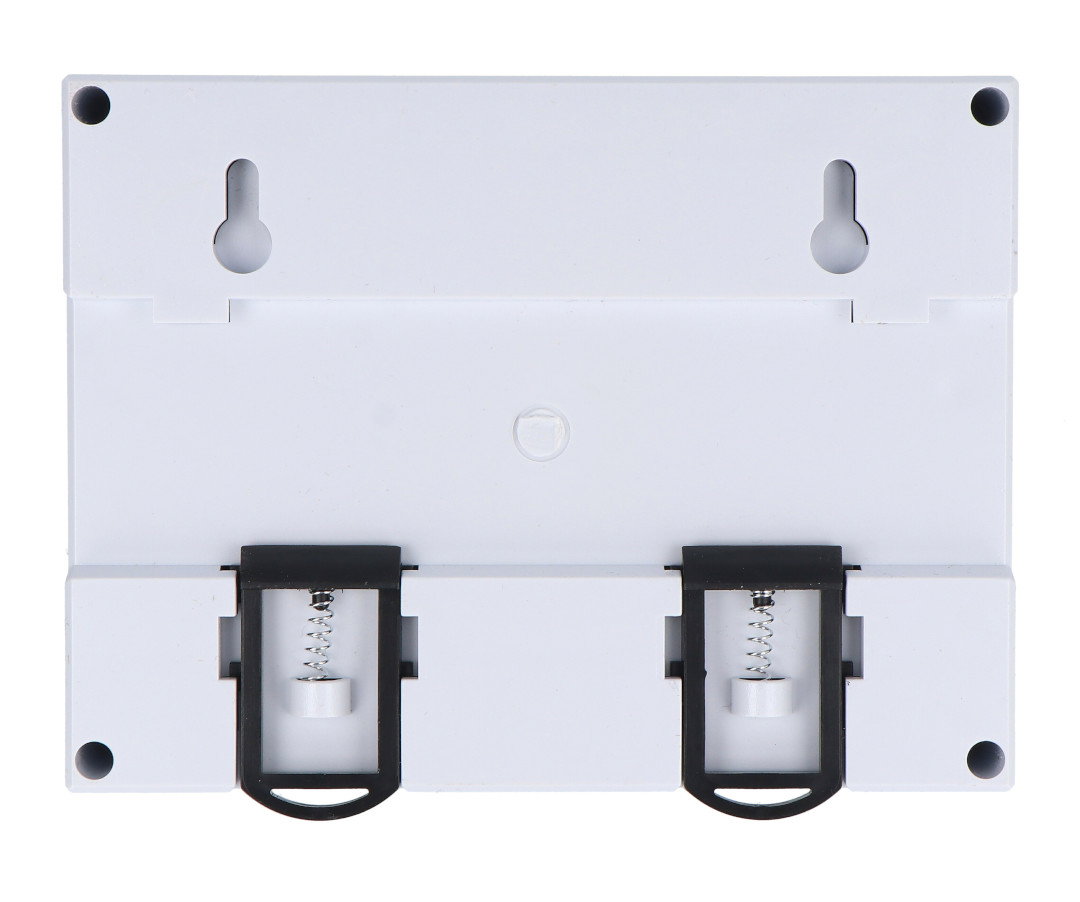

Easy mounting on a DIN rail.
