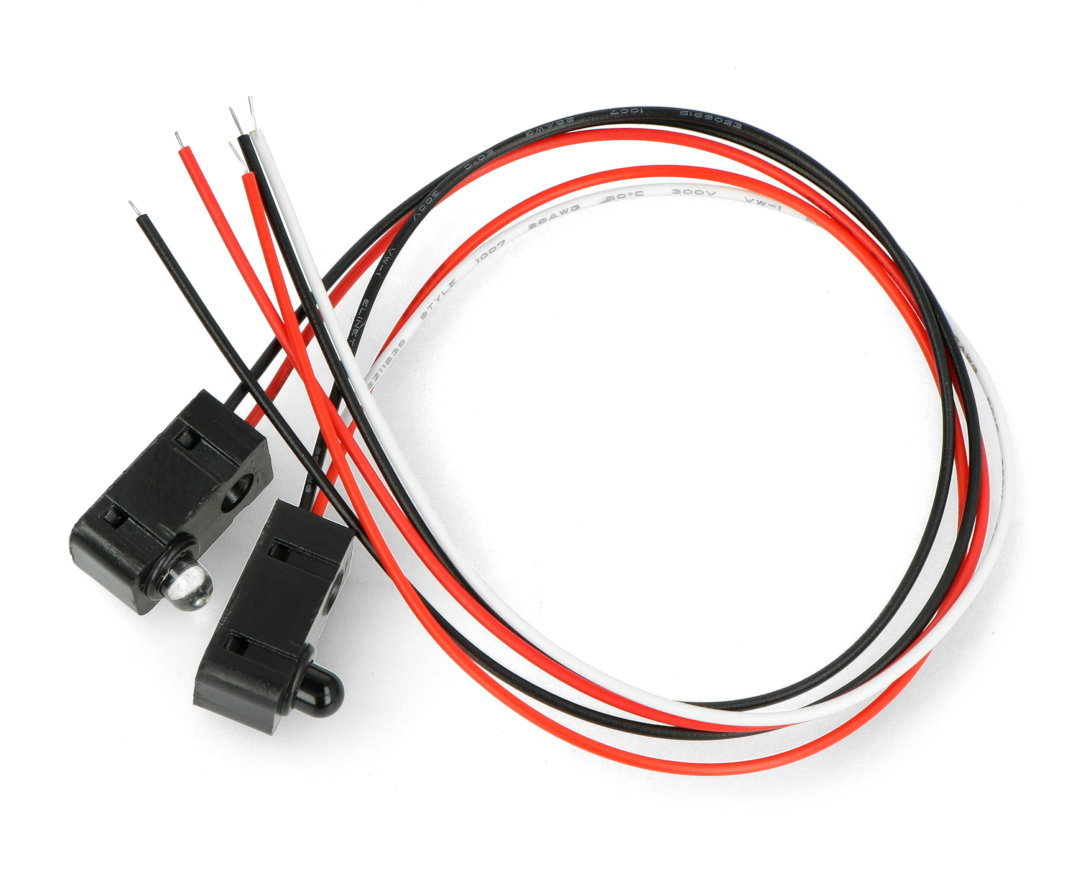

IR beam interruption sensor - LED 5mm - 0-50 cm

Index: DNG-18690 EAN: 5904422366483
The sensor reacts to an interruption of the infrared light beam transmitted between the transmitter and receiver. The receiver indicates when the beam is interrupted by another object. The module is equipped with a 5 mm IR LED with an illumination angle of 20°. Beam interruption systems are used e.g. in measurement gates.
IR beam interruption sensor - LED 5mm - 0-50 cm
€2.90
€2.36 tax excl.
Waiting time: 4-6 weeks
Temporarily unavailable
PayPal payment
IR beam interruption sensor - LED 5mm - range:
Manufacturer: OEM

Product Description: IR Beam Interruption Sensor - LED 5 mm - 0-50 cm

The sensorreacts to an interruptionof the infrared light beamtransmitted between thetransmitterandthe receiver. The receiver indicates when the beam is interrupted by another object. The module is equipped with a5 mm IR LEDwith an illumination angle of20°. Beam interruption systems are used e.g. in measuring gates.

Czujnik przerwania wiązki IR - LED 5 mm.IR beam interruption detector - 5 mm LED.

Specifications of the beam interruption sensor

  • Supply voltage: 3.3 V to 5 V
  • Range: 0 cm to 50 cm
  • Diode: 5 mm IR LED
  • Illumination angle: 20°
  • Response time: up to 2 ms
  • Output: open collector

Detailed description can be found in theuser's guide.

Voltage to 3.3 V
Voltage from 5.0 V
Interface analog
Sensor - type LED IR
Sensor - assembly on wires
Package width 7 cm
Package height 1.5 cm
Package depth 11 cm
Package weight 0.007 kg
