IR beam interruption sensor - LED 5mm - 0-25 cm

Index: DNG-18688 EAN: 5904422366469
The motion detection sensor reacts to the interruption of an infrared light beam that is transmitted between the transmitter and receiver. The devices should be placed opposite each other, in a straight line. When a third element appears between them - the receiver informs about the beam interruption. The module is equipped with a 5 mm IR LED with an illumination angle of 20°. Beam interruption systems are used e.g. in measuring gates.
IR beam interruption sensor - LED 5mm - 0-25 cm
€3.50
€2.85 tax excl.
Available
Shipping in 24 hours
PayPal payment
IR beam interruption sensor - LED 5mm - range:
Manufacturer: OEM

Product Description: IR Beam Interruption Sensor - LED 5 mm - 0-25 cm

Motion detection sensor, reacts to theinterruption of the infrared light beamthat is transmitted between thetransmitterandreceiver. The devices should be placed opposite each other in a straight line. When a third element appears between them - the receiver informs about the beam interruption. The module is equipped with a5 mm IR LEDwith an illumination angle of20°. Beam interruption systems are used, among others, in measuring gates.

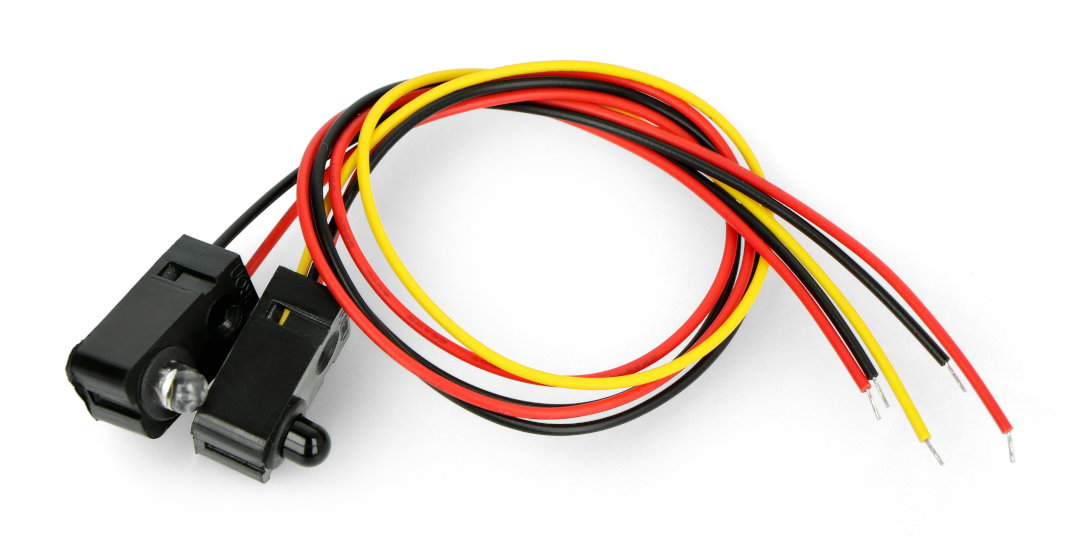

Czujnik przerwania wiązki IR - LED 5 mm.IR beam interruption detector - 5 mm LED.

Specifications of the beam interruption sensor

  • Supply voltage: 3.3 V to 5 V
  • Range: 0 cm to 25 cm
  • Diode: 5 mm IR LED
  • Illumination angle: 20°
  • Response time: up to 2 ms
  • Output: open collector

Detailed description can be found in theuser's guide.

Voltage to 3.3 V
Voltage from 5.0 V
Interface analog
Sensor - type LED IR
Sensor - assembly on wires
Package width 7 cm
Package height 1.5 cm
Package depth 10 cm
Package weight 0.007 kg

Tomasz

05/10/23

Question: When an obstacle is detected, will the sensor on the output run at 5V relative to ground?
Answer: When an obstacle is detected, the voltage drops to 0 V.
