Description: Grove - PIR digital motion detector - Seeedstudio 101020793.
PIRsensor for motion detection using IR diodes. It allows to generate low or high state at the output. It does not requireArduinolibrary for proper operation. It detects movement in the range from 3.2 m to 12 m.It is powered from 3V to 5 V.Applied Grove connector allows for easy connection of the sensor to the BaseShieldcap.

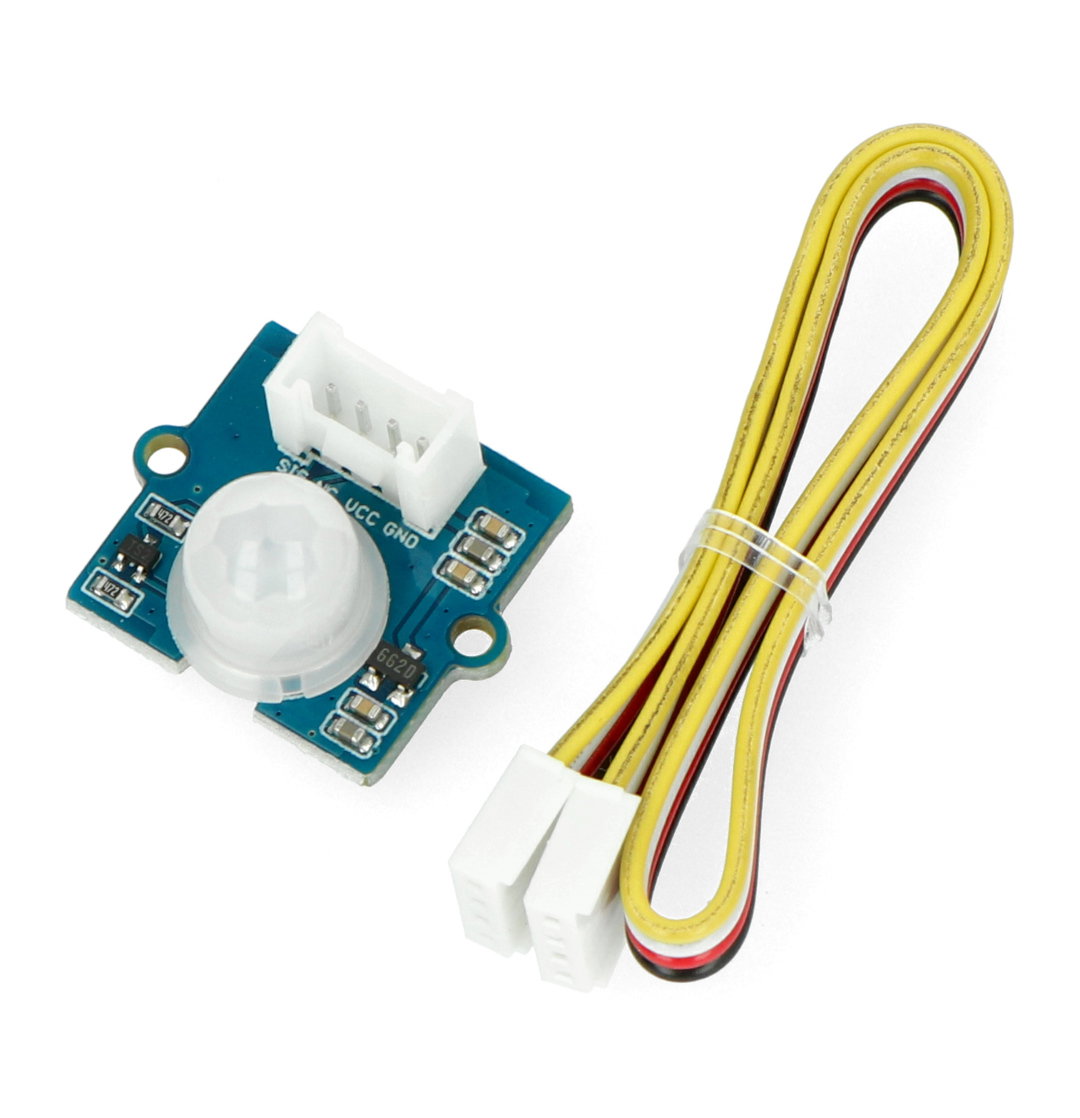

PIR motion sensor with Grove cable.
|
Product compatible with Arduinoand RaspberryPi The manufacturer provides auser guide forArduino and Raspberry Pi. |

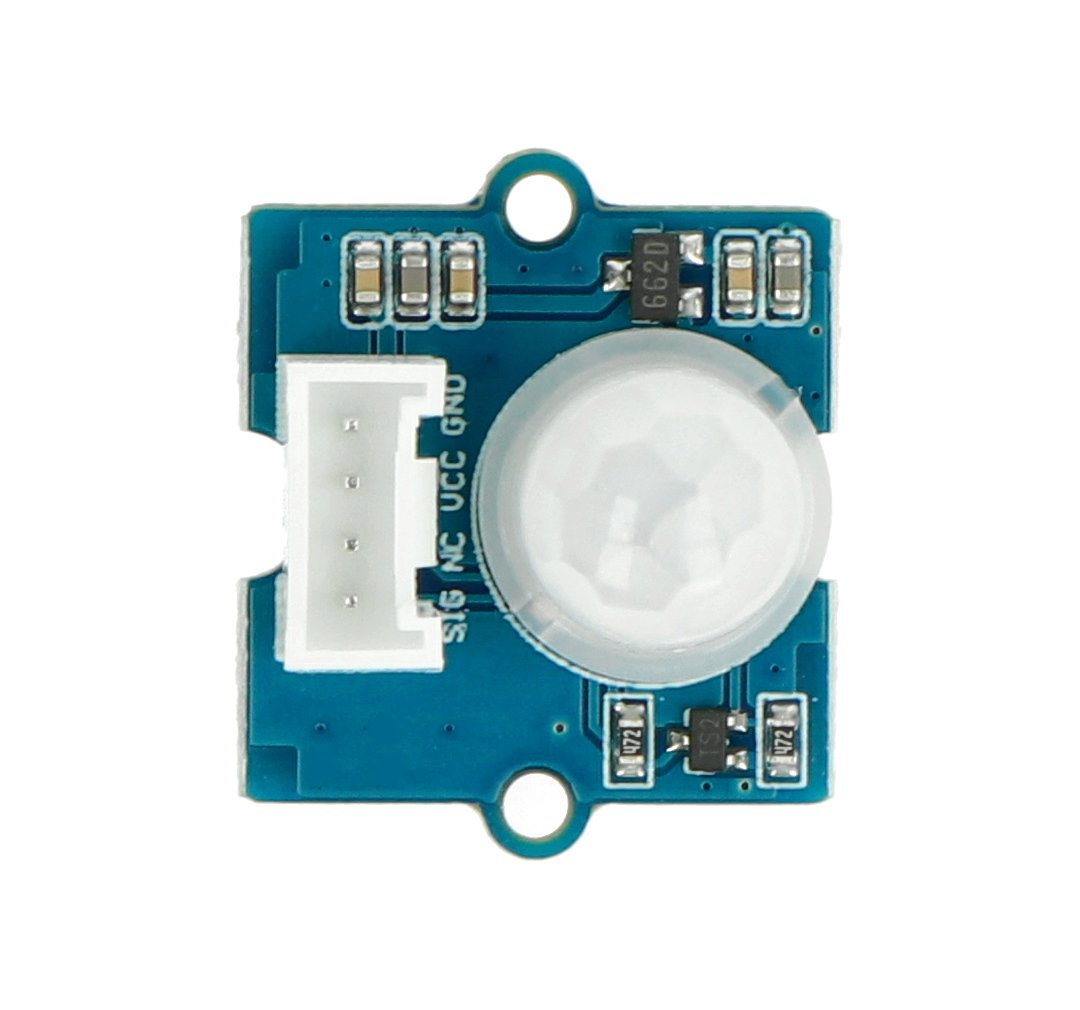

PIR motion detector connection
The sensor should be connected to the digital pin of the microcontroller, e.g. Arduino module or Raspberry Pi mini-computer.
| Pin | Description |
|---|---|
| SIG | Digital signal pin. |
| NC | Not connected. |
| VCC | Supply voltage from 3 V to 5 V. |
| GND | The weight of the system. |
PIR motion detector specification
- Supply voltage: 3 V to 5 V
- Detection angle: 100°
- Detection distance: 3.2 m to 12 m
- Response time: up to 1 s
- Operating temperature: -20°C to 85°C
- Interface: Grove
- Dimensions: 20 x 20 x 11.5 mm
- Weight: 3 g
