Product description: Grove - RPR-220 reflective sensor v1.3

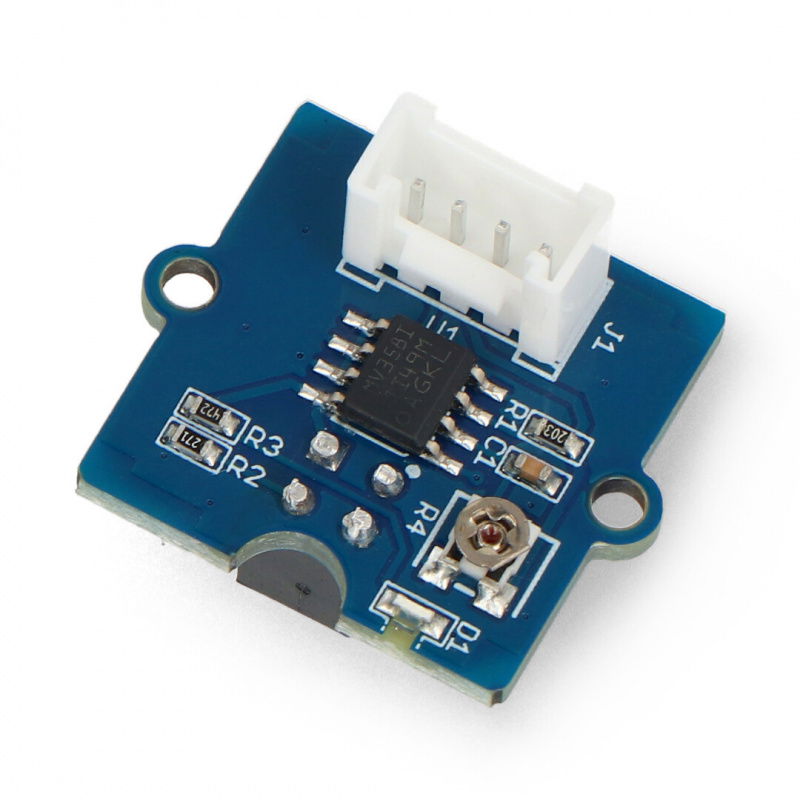

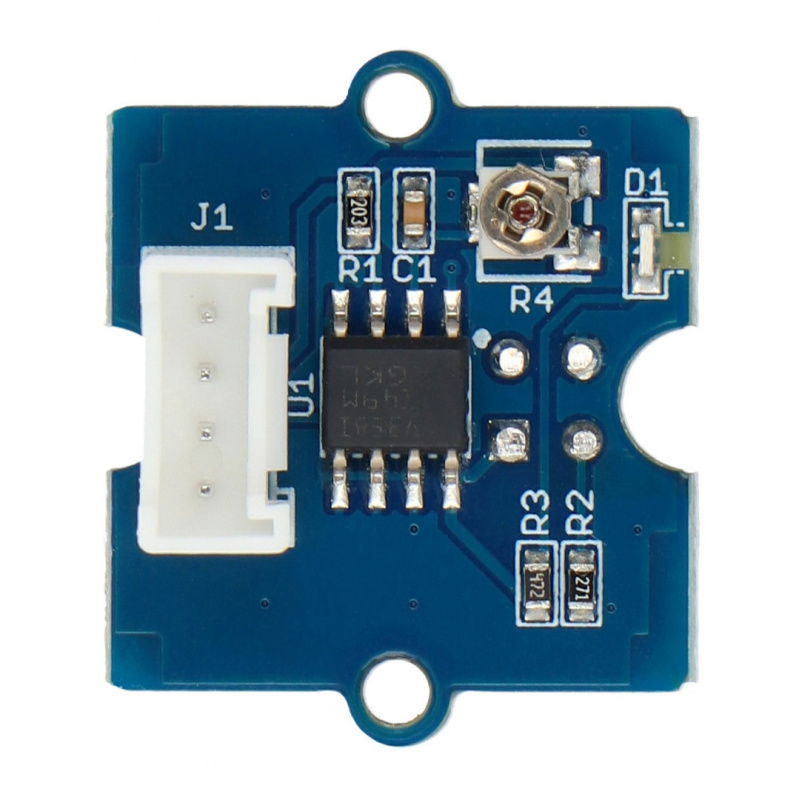

Grove series module based on the RPR-220 reflective sensor . It consists of an infrared light-emitting diode and a high-sensitivity phototransistor. Bright objects in front of the sensor will reflect more infrared light and generate more current in the phototransistor than objects with dark surfaces. It is powered by 5 V. Range from 0 to 45 mm. It has a digital output, which makes it compatible with most start-up modules , including Raspberry Pi and Arduino .

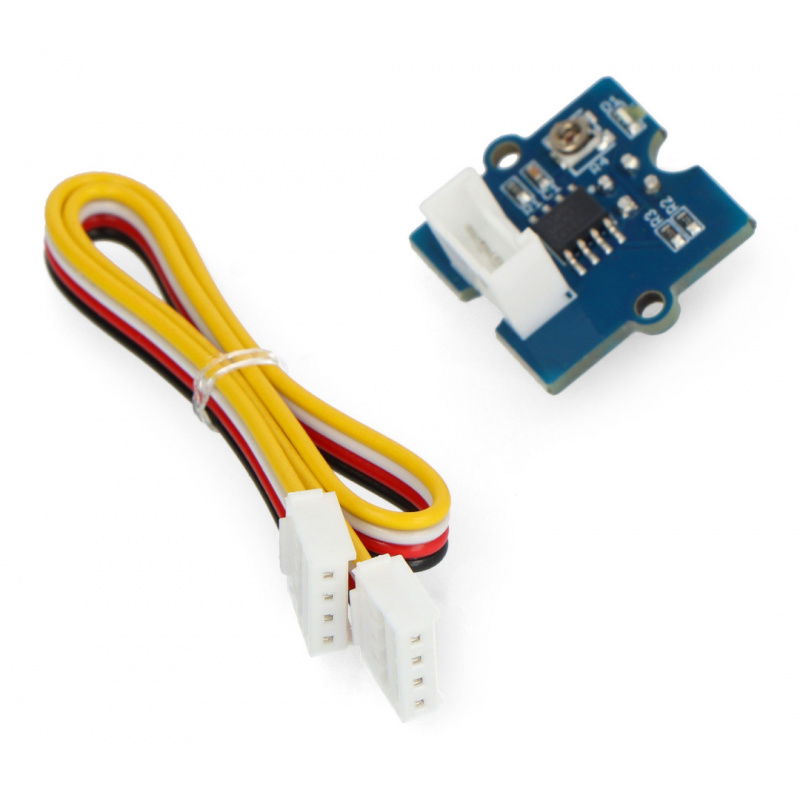

Connection
The module is equipped with a Grove interface that makes it easy to connect it to Arduino with the Base Shield v2.0 or Raspberry using the GrovePi+ Hat.

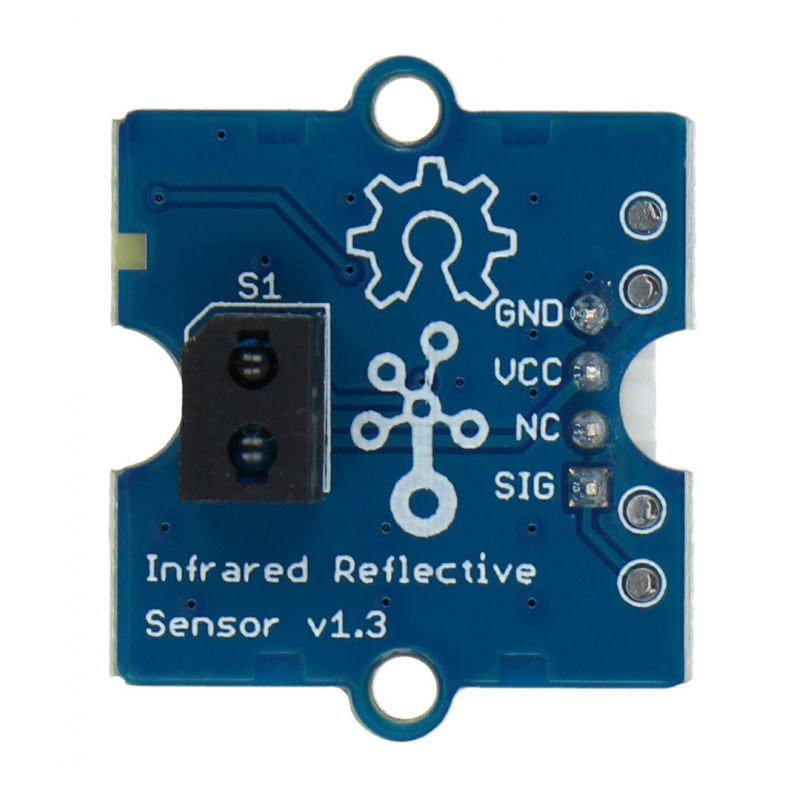

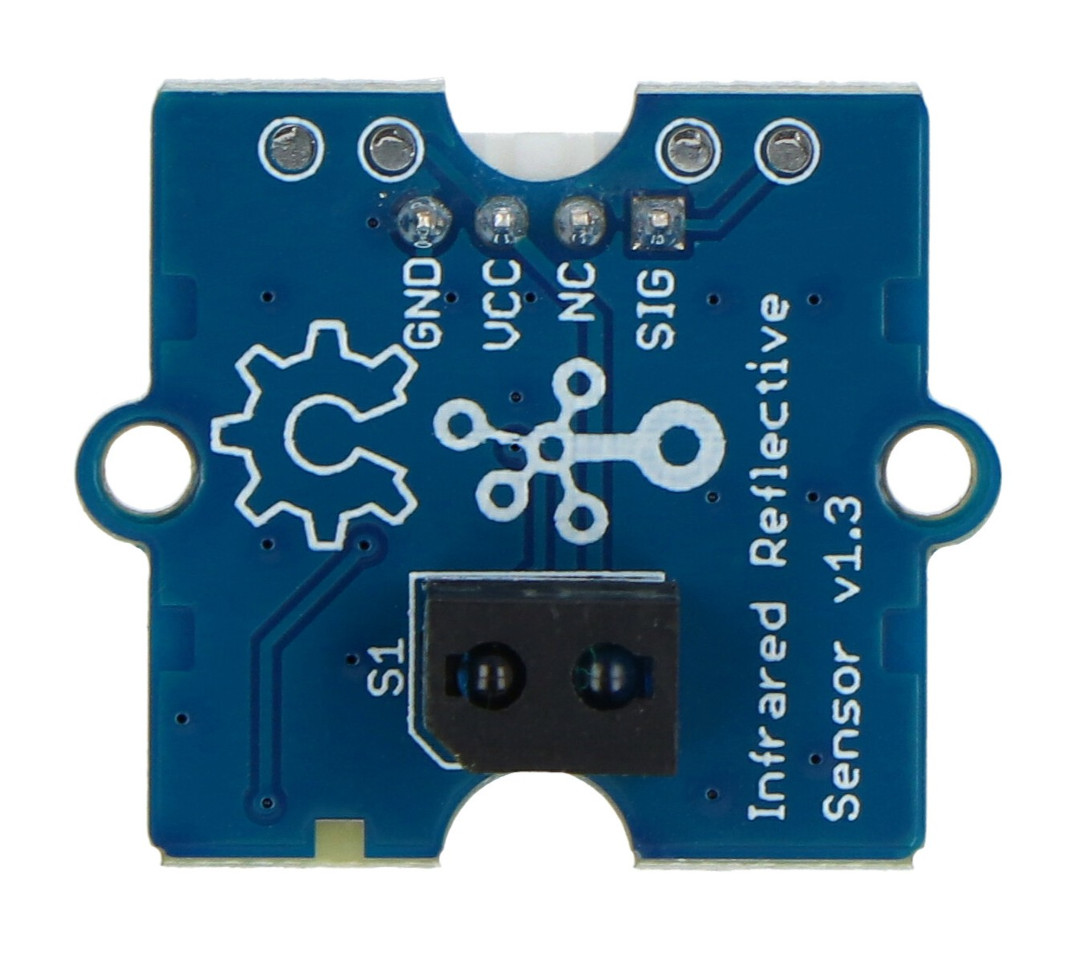

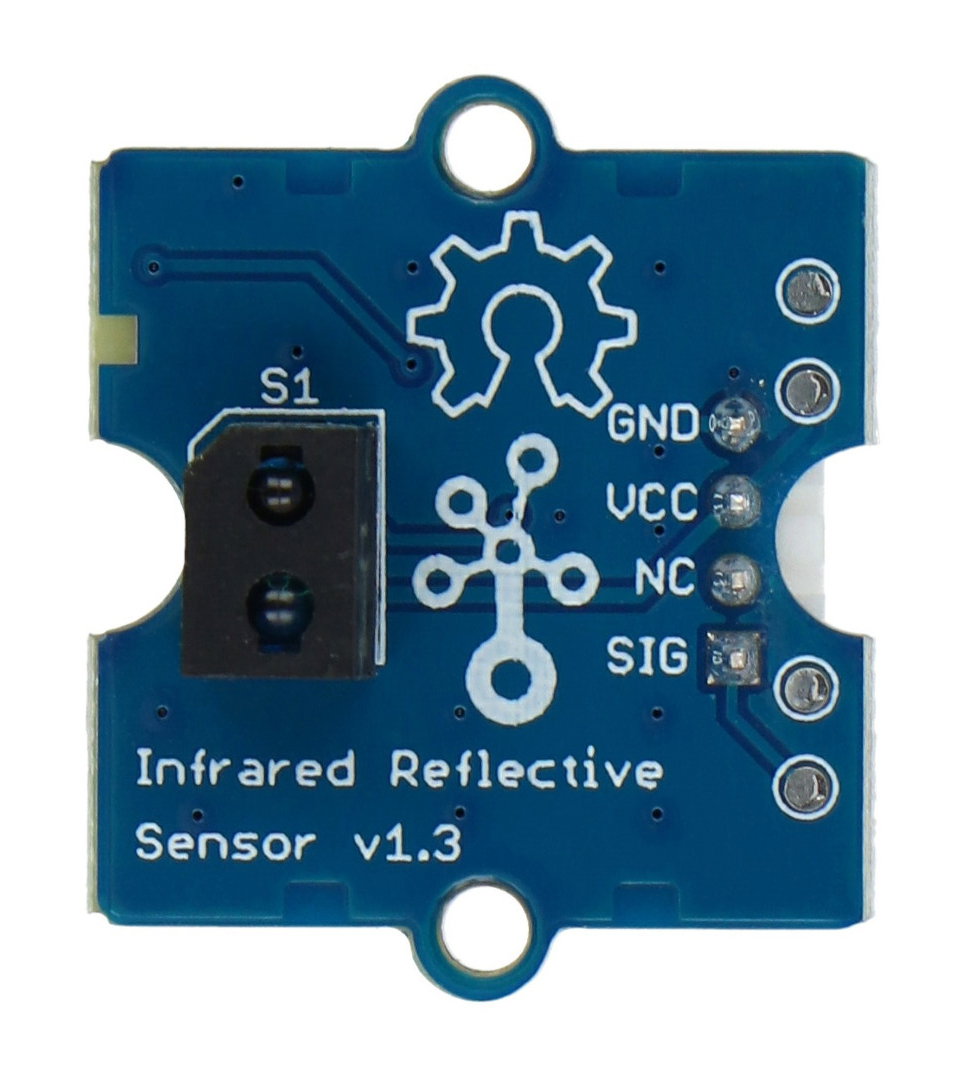

| Pin | Description |
|---|---|
| GND | System mass. |
| VCC | Supply voltage 5 V. |
| NC | Not connected. |
| SIG | Output signal. |
User manual The manufacturer has prepared a user guide for Arduino and Raspberry . |
Specification
- Supply voltage: 5V
- Reflective sensor: RPR-220
- Effective distance: 0 to 45 mm
- Response time: 10 μs
- Dimensions: 20 x 20 mm
- Weight: 4 g
