Grove - ultrasonic distance sensor 3-350cm

Index: SEE-11360 EAN: 5903351247177

Ultrasonic sensor operating in the range from 3 cm to 350 cm. It is powered with voltage of 5 V. The output is a signal, duration of which is proportional to the measured distance.

€6.94
€5.65 tax excl.
In stock, shipping 24 hours!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino Raspberry Pi

Description

Ultrasonic sensor operating in the range from 3 cm to 350 cm. It is powered with voltage of 5 V. The output is a signal, duration of which is proportional to the measured distance.



The product is compatible with Arduino and Raspberry Pi

Attention!

This product is only available in our market in Poland and cannot be sold to other countries.

Connection

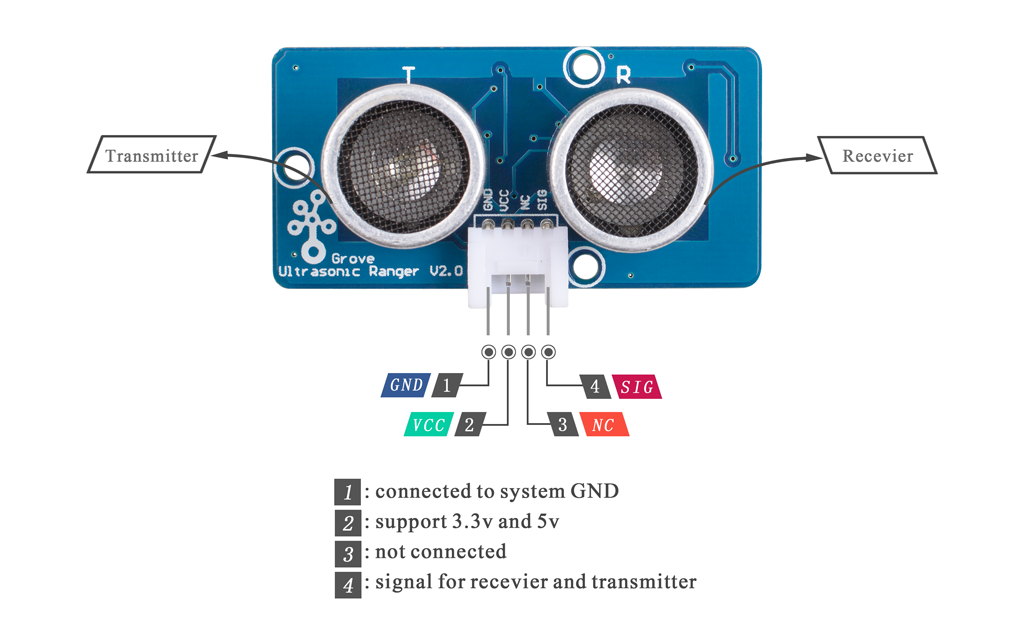

The sensor communicates with the microcontroller in digital form. It has the following pins:

Ultradźwiękowy czujnik odległości 3-350cm

Pin Description
GND The ground of the system - the black wire.
VCC The supply voltage from 3.2 V to 5.2 V - the red wire.
NC Not connected - the white wire.
SIG The signal of the receiver - yellow wire.

Specification

  • Supply voltage: from 3.2 V to 5.2 V
  • Average current consumption: 8 mA
  • Resolution: 1 cm
  • Measuring range: from 3 cm to 350 cm
  • Output: PWM
  • The echo signal: TTL
  • Working frequency: 40 kHz
  • Angle measurement: 15 degrees
  • Operating temperature: -10 °C to 60 °C
  • Dimensions: 50 x 25 x 16 mm
  • Weight: 13 g

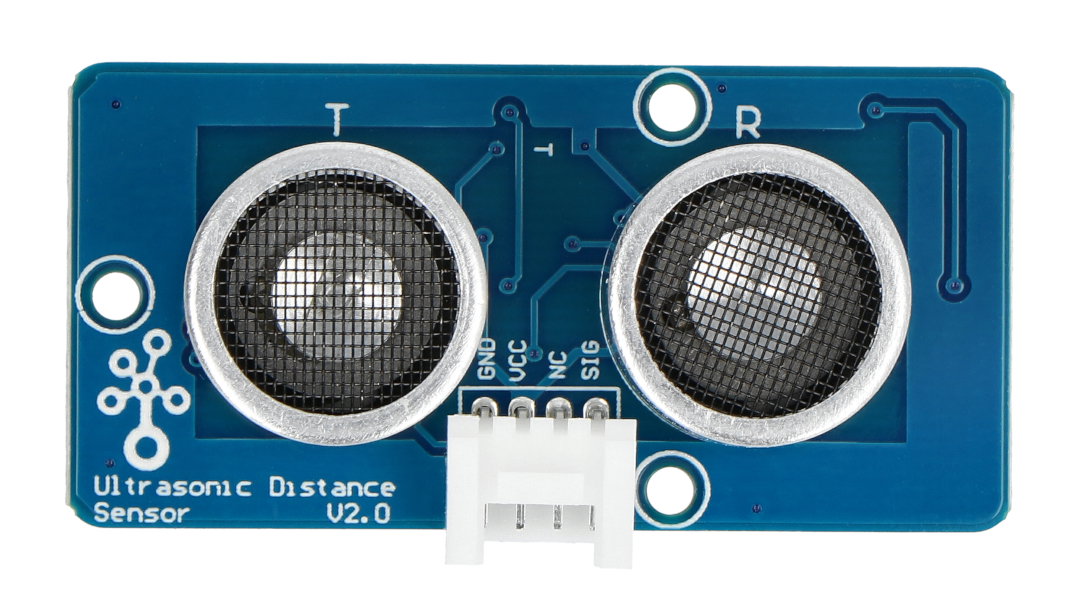

Ultradźwiękowy czujnik odległości 3-350cm

Sensor - type distance
