Product description: DC motor controller 12-40 V /10 A / 400 W - with speed control knob
A simple controller with an integrated rotary potentiometer to control the speed of a DC motor up to 400 W. Powered from 12 V to 40 V.
Controller specifications
- Adjustment range: 12 V to 40 V
- Maximum power: 400 W
- Maximum current: 10 A
- Built-in fuse: 10 A
- Controller: NE555 system
- Potentiometer for engine speed control
- Connection via a screw connection:
- Power +: module supply voltage
- Power -: system weight
- Motor +: engine outputs
- Motor - : engine outputs
- Dimensions: 60 x 55 x 27 mm (without knob)
The connectors are properly signed on the back of the plate.

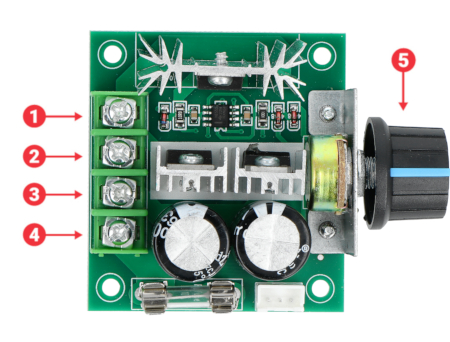

Connection
The module has four screw terminals, two of which are used to connect the power supply, and another two to connect the DC motor. The connectors are properly signed on the back of the board.
| Pin | Description |
|---|---|
| 1 | The engine's output. |
| 2 | The engine's output. |
| 3 | Ground. |
| 4 | Module supply voltage |
| 5 | Potentiometer for motor speed control. |
