Product description: Seeed Xiao nRF54L15 Sense - BLE 6.0 / Thread / ZigBee / Matter / NFC - Seeedstudio 101991422
The Xiao nRF54L15 Sense is an enhanced version of the classic Xiao nRF54L15 , enhanced with a PDM microphone and a 6-DOF IMU sensor . Based on the Nordic nRF54L15, the board offers high performance, energy efficiency, and the latest wireless technologies, including Bluetooth LE 6.0 with Channel Sounding and support for Matter, Thread, and ZigBee . Its compact size, integrated power management, and battery charging capabilities make it an ideal solution for smart wearables, sensors , and IoT prototyping.

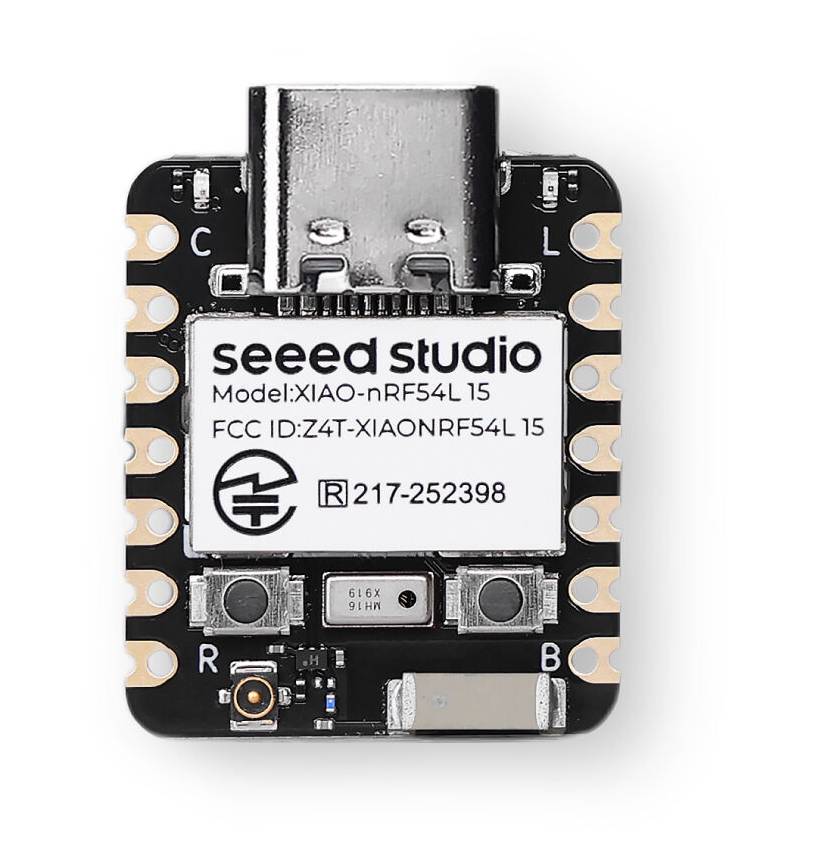

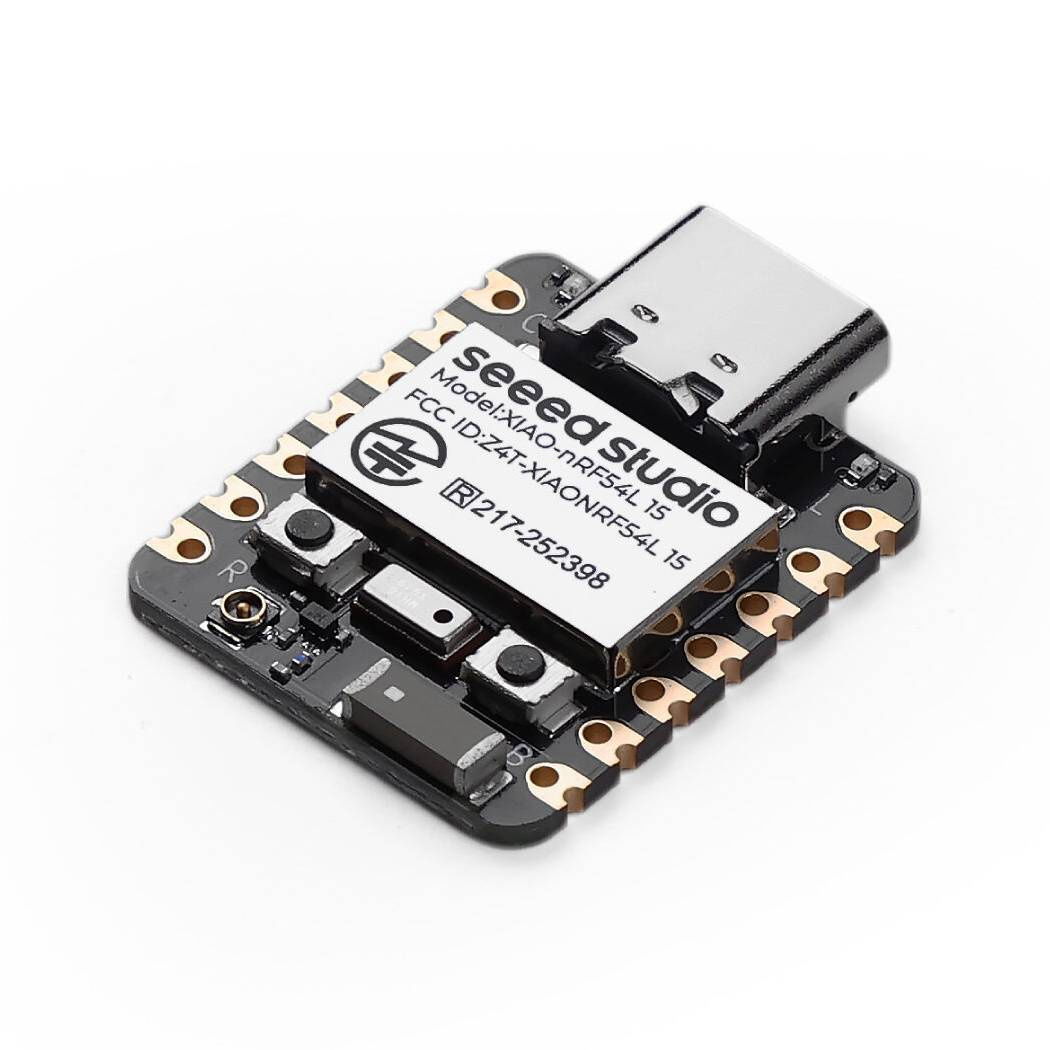

Seeed Xiao nRF54L15 Sense - BLE 6.0 / Thread / ZigBee / Matter / NFC - Seeedstudio 101991422.
The board is based on the Nordic nRF54L15 SoC.
Main features of Xiao nRF54L15 Sense
- Advanced SoC : Arm Cortex-M33 128 MHz + RISC-V 128 MHz FLPR
- Support for multiple protocols : BLE 6.0, Matter, Thread, ZigBee, Amazon Sidewalk, NFC
- Built-in sensors : PDM digital microphone and 6 DOF IMU sensor
- Extremely low power consumption : less than 0.6 µA in System OFF mode (at SoC level)
- Integrated battery charging : PMIC chip and USB Type-C port
- 14 GPIO : I2C, SPI, UART, ADC, RTC support
- Hardware security : TrustZone, Secure Boot, cryptographic protection, tamper detection
Communication pins and interfaces
The Xiao nRF54L15 Sense offers 14 GPIO pins , including I2C, UART, SPI, and ADC analog inputs . The board includes JTAG/SWD debug pins, antenna outputs (ceramic + IPEX4 connector), NFC, and dedicated power management pins. Additional features include a user LED, charging LED, and reset and user buttons . Wireless communication includes BLE 6.0 (including Channel Sounding), Thread, ZigBee, Matter, and proprietary 2.4 GHz protocols up to 4 Mbps.

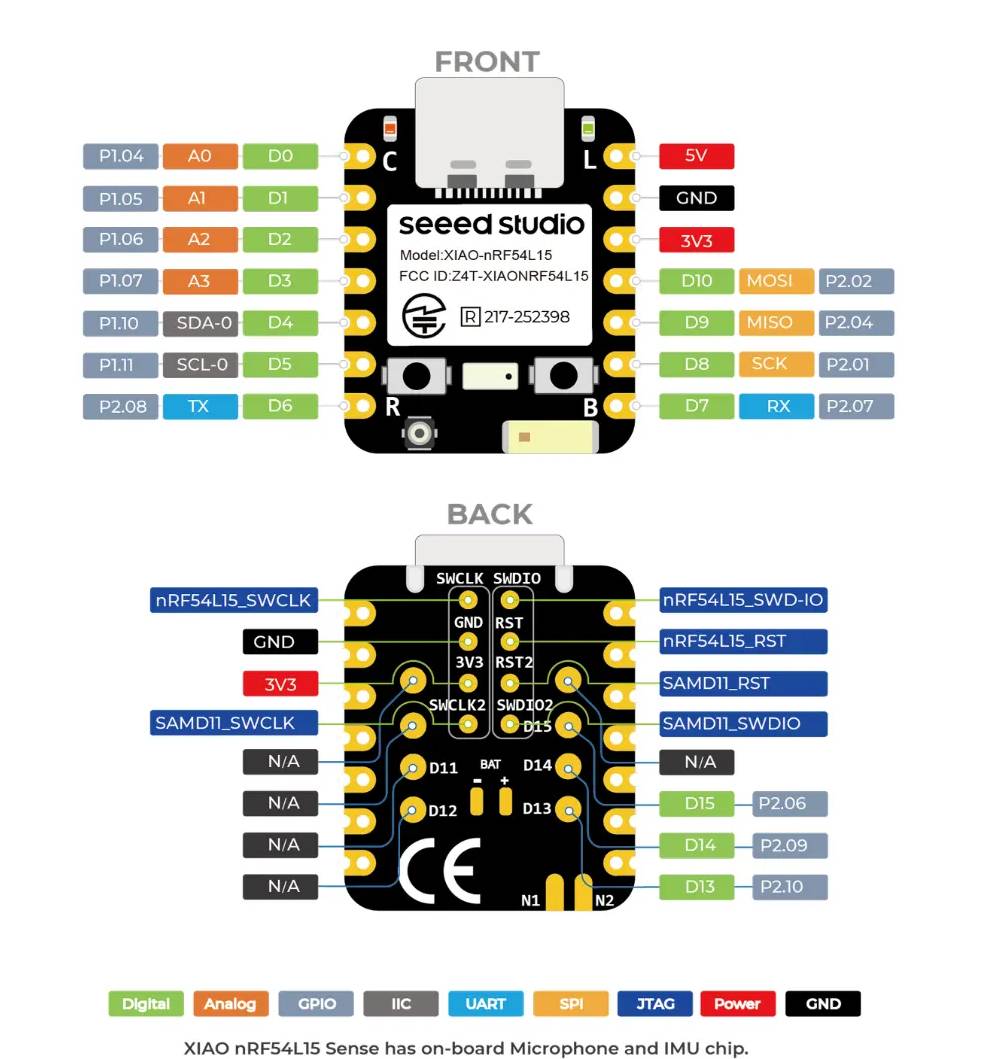

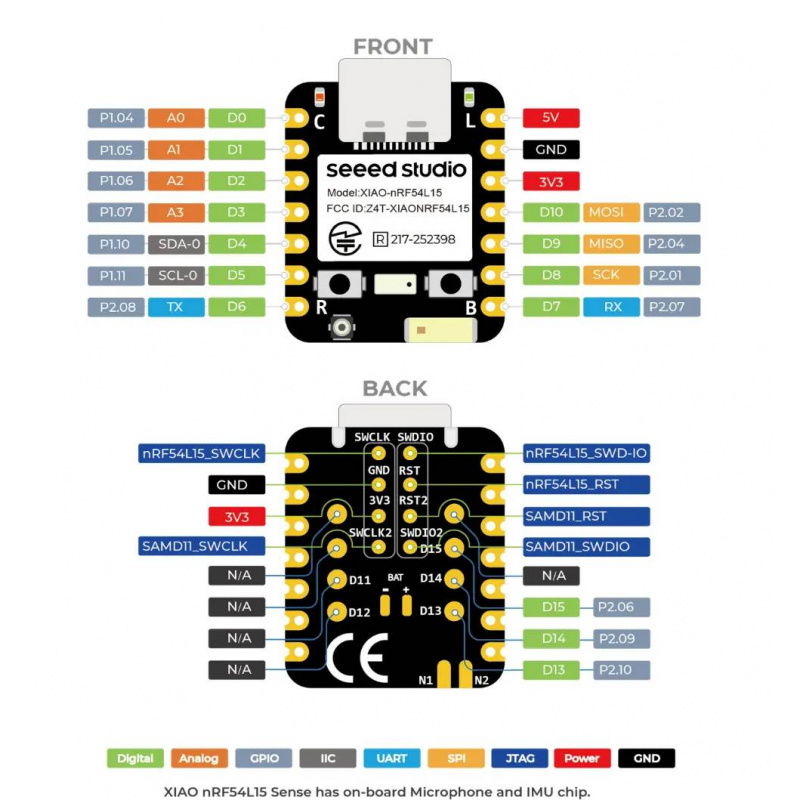

Board pins.
The board supports multiple wireless protocols, including BLE 6.0, Matter, Thread, and ZigBee (IEEE 802.15.4-2020).
SDK programming and support
The module is programmed via the nRF Connect SDK and PlatformIO with Zephyr RTOS support . The module does not support the Arduino IDE . Nordic Semiconductor's SDK ecosystem offers numerous examples, drivers, and libraries , allowing you to quickly build IoT solutions, including support for BLE, Thread, ZigBee, and hardware security. Integration with VS Code allows for comfortable work in a complex environment.
Differences between Xiao nRF54L15 and Sense version
The Xiao nRF54L15 Sense version has been enhanced with two key components: a PDM digital microphone and a 6-axis IMU sensor (LSM6DS3TR-C) . This enables projects based on sound analysis and motion detection. Compared to the standard Xiao nRF54L15 model, the Sense version offers identical performance, communication features, and pinout , but also expands application possibilities in areas such as wearables, HMIs, and gesture interfaces. Both versions are fully compatible with the nRF Connect SDK and Zephyr RTOS.
Xiao nRF54L15 Sense Technical Specifications
- Microcontroller: Nordic nRF54L15
- Main processor: Arm Cortex‑M33 128 MHz
- Coprocessor: RISC‑V 128MHz FLPR
- Memory: 256 kB RAM + 1.5 MB NVM
- Sensor: PDM digital microphone, IMU 6 DOF (LSM6DS3TR-C)
- GPIO interfaces: 16 pins
- Communication interfaces: 2x I2C, 2x SPI, 1x UART
- ADC: 14-bit analog-to-digital converter (SAADC)
- RTC: global real-time clock
- Wireless connectivity: Bluetooth LE 6.0 (including Channel Sounding), Thread (IEEE 802.15.4‑2020), ZigBee, Matter, Amazon Sidewalk, Proprietary (proprietary 2.4 GHz protocols up to 4 Mb/s), NFC
- Antenna: Built-in ceramic antenna + IPEX4 connector for external antenna
- On-board LEDs and buttons: 1x user LED (1 color), 1x charging LED, 1x reset button, 1x user button
- Power supply: USB Type-C (5V) or external 3.7V Li-Ion battery (built-in PMIC chip supports charging)
- Operating temperature: -40°C to 105°C
- SDK Compatibility: Nordic nRF Connect SDK, PlatformIO (Zephyr RTOS)
- Dimensions: 21 x 17.8 mm
Contents of the set
- 1x Xiao nRF54L15 Sense
- 2x 7-pin goldpin strip (2.54 mm)

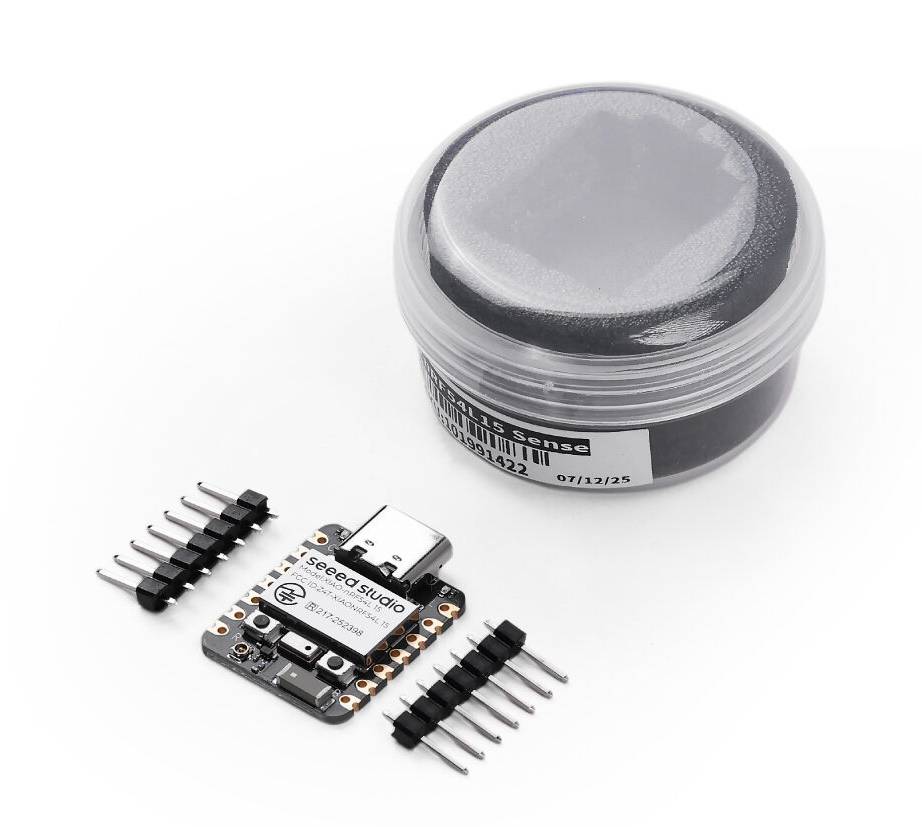

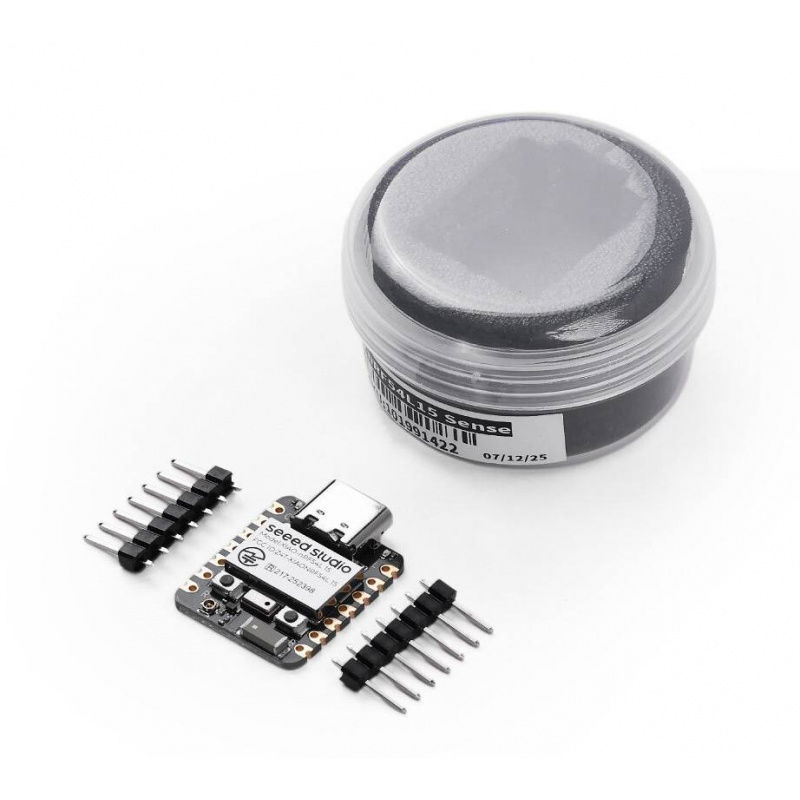

Elements included in the set.
