Product description: Seeeduino Xiao Expansion Board - extension board for Xiao main module
A board extending the functionality ofSeeeduino Xiaomodule. Enables faster and simpler prototyping with this miniature main module. On the board there are, among others,Grove systemconnectors,0.96"OLED display,2.0 mm JSTconnector enabling connection ofLi-pol battery,RTCclock, space for lozenge battery andmicroSD card slot. The set consisting of extension board and main module can be programmed using Python language. All the connectors on the board have already been removed and there is no need for additional soldering. The total dimensions of the expansion board are58 x 42.5 mm.

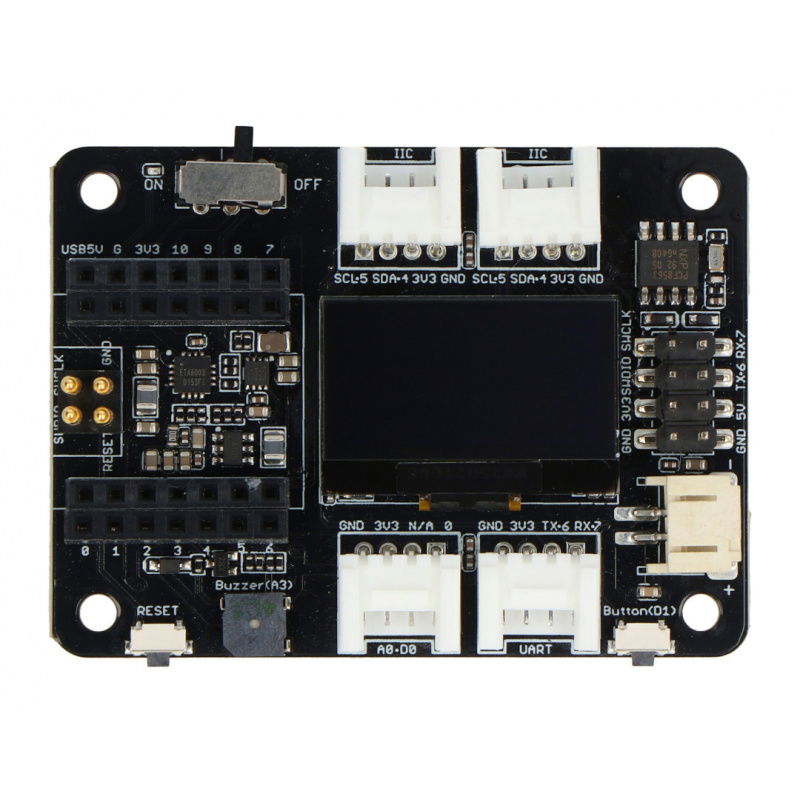

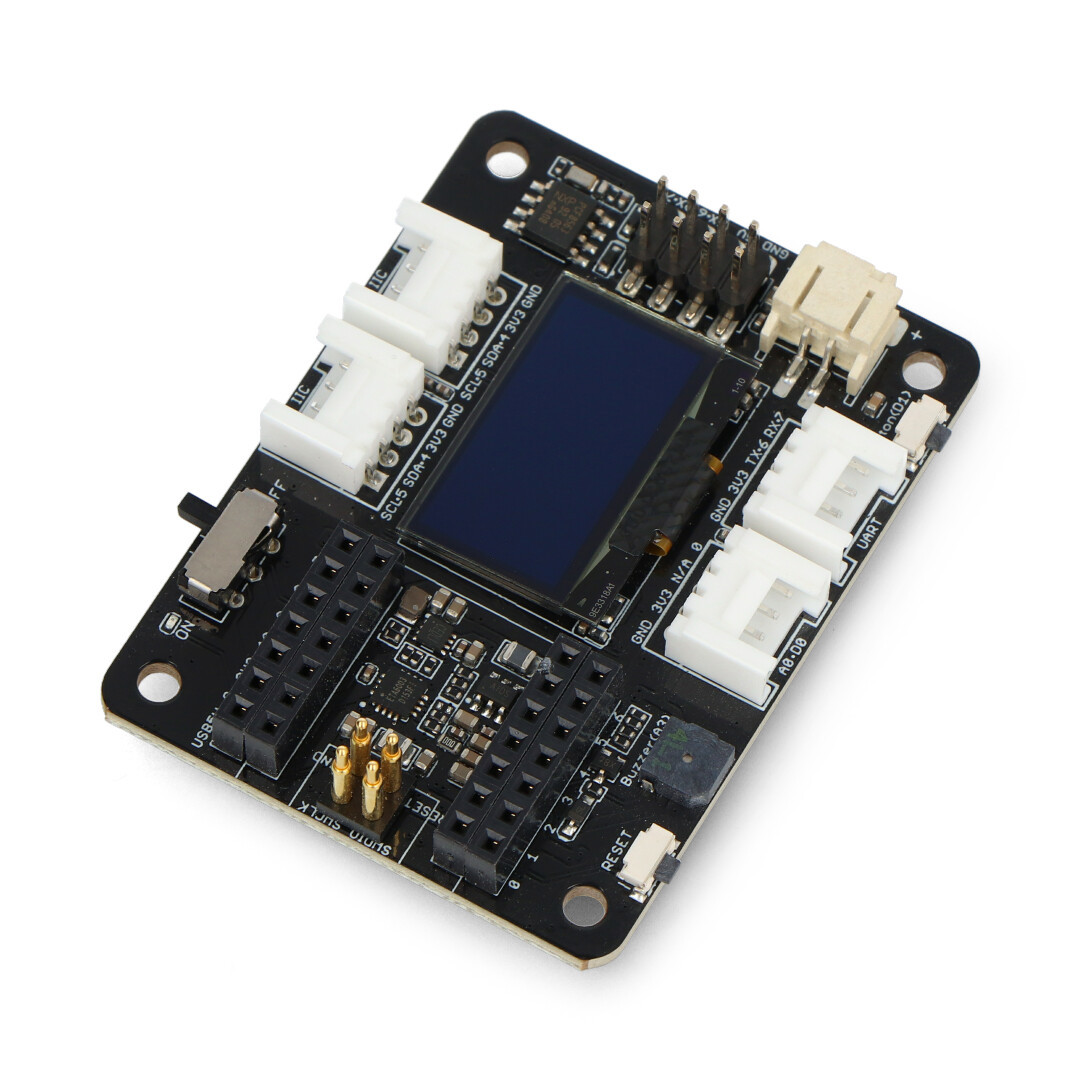

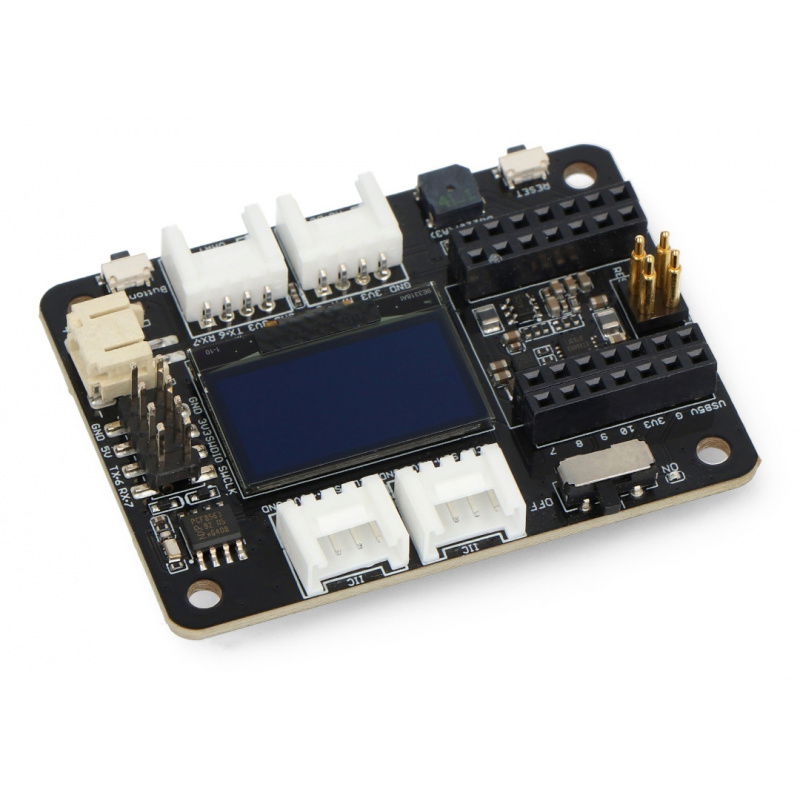

A richly equipped extension board for Seeeduino Xiao.

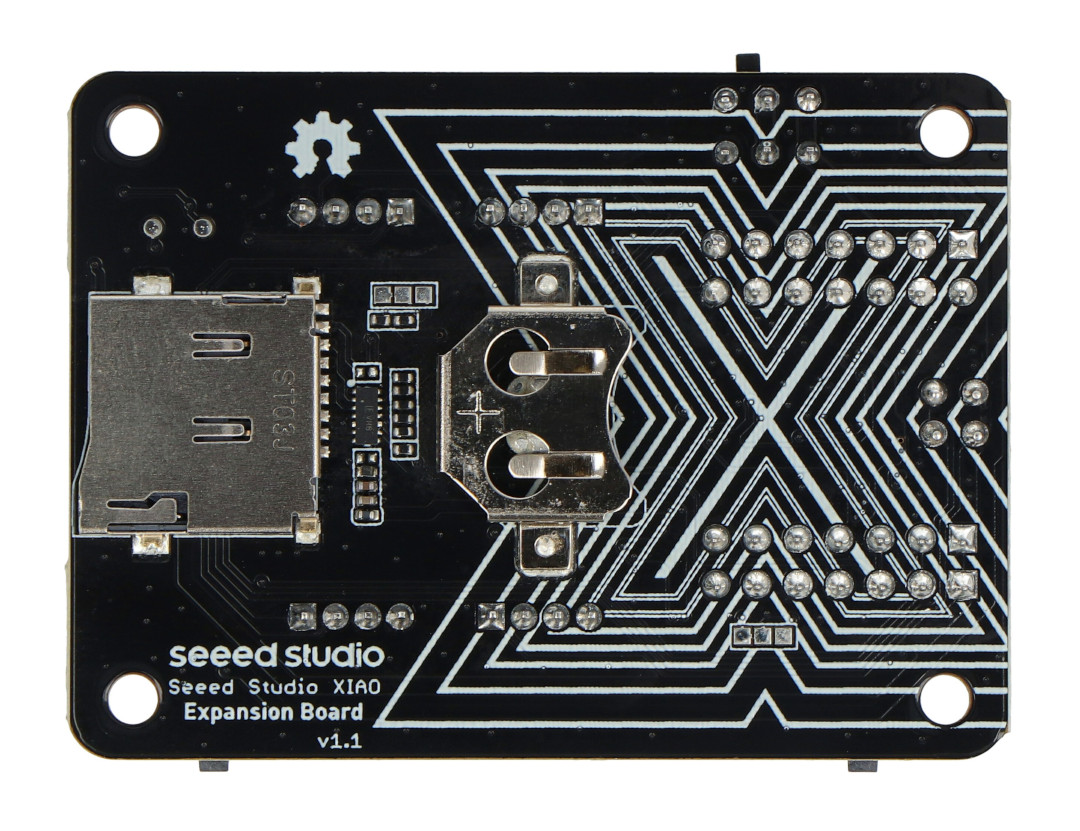

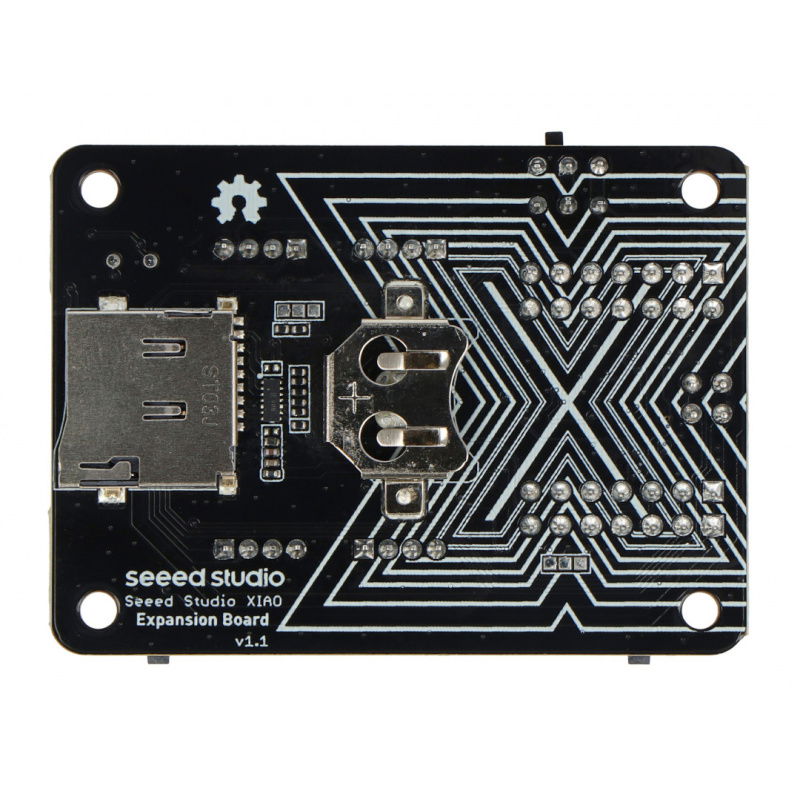

Slots for microSD card and CR1220 battery are on the back of the board.
Key features of the board
- Connectors according to Seeeduino Xiao
- Integrated OLED display 0.96"- allows for visual display of data, which allows for more efficient and convenient debugging and testing of new solutions
- SWD male connector- for connecting the programmer-debugger
- MicroSD card slot- the ability to expand memory means you don't have to worry about limited memory when programming with libraries
- Precision real-time clockPCF8563Twith additionalbatterypower supplyCR1220
- Programmable physicalbutton
- Grove connectors- popular plug and play connectors supporting protocols
- JST 2.0mmconnectorfor Li-pol battery
- 5V servo connector- 5V male connectors for servo
Comparison of extensions to Seeeduino Xiao
| Basic information | |||
|---|---|---|---|
 |
 |
||
| Model | Grove - Shield for Seeeduino XIAO | Seeeduino XIAO Expansion Board | |
| Technical Specification | |||
| Peripheries | None |
|
|
| Grove connectors |
|
|
|
| Memory extension | SPI Flash Memory Space | MicroSD card slot | |
| Battery connector | For self-brazing | ST 2.0 | |
