Product description: Seeed Xiao BLE nRF52840 - Arduino / MicroPython - Bluetooth 5.0 with built-in antenna - Seeedstudio 102010448
Compact development board manufactured by Seeedstudio, equipped with the efficient Nordic nRF52840 ARM Cortex M4 chip with a clock speed of 64 MHz. The board is equipped with Bluetooth 5.0 wireless connectivity (it also has a built-in antenna), NFC and ZigBee . It allows you to create applications based on artificial intelligence together with TinyML . The board also features the BQ25101 battery charging system and numerous communication interfaces that allow you to create mobile wireless projects.
Kit contents.
Leads of the Seeed Xiao nRF52840 board.Seeed Xiao series of tiles
Xiao BLE nRF52840 from Seeedstudio is the next product in the Seeed Xiao series. It is the equivalent of the Seeed Xiao BLE nRF52840 Sense board - the only difference is the lack of an IMU sensor and a PDM microphone. Xiao BLE nRF52840 has a small size of 21 x 17.5 mm and numerous communication interfaces, such as: 1x UART, 1x I2C, 1x SPI, 1x NFC, 1x SWD, 11x GPIO, 6x ADC, 1x LEDN 3in1, 1x user LED. Programming and powering the board takes place via the USB type C interface - it also charges the battery. The board is equipped with 2 MB of Flash memory, it can be programmed in Arduino, MicroPython, CircuitPython and other programming languages.
Main features of Seeed Xiao BLE nRF52840
- High-quality processor: Nordic nRF52840, ARM Cortex M4 32-bit with 64MHz FPU
- Wireless connectivity: Bluetooth 5.0, NFC and ZigBee with a built-in Bluetooth antenna
- Ultra small dimensions: 21 x 17.5 mm
- Ultra-low power consumption in standby mode: 5 μA
- Battery charging system: BQ25101 chip that supports lithium batteries
- Rich in useful interfaces: 1x reset button, 1x UART, 1x I2C, 1x SPI, 1x NFC, 1x SWD, 11x GPIO, 6x ADC, 1x 3-in-1 LED, 1x user LED
- Built-in 2 MB Flash memory
- Components placed on one side of the board by the surface method
- Perfect for IoT / smart clothing projects
- Suitable for TinyML artificial intelligence projects: detection, processing, 3-in-1 communication
Application of Seeed Xiao nRF52840
- Devices to diversify clothes
- Wireless communication
- Built-in machine learning projects
- IoT applications and TinyML artificial intelligence (AI)
- Module for miniature Arduino projects

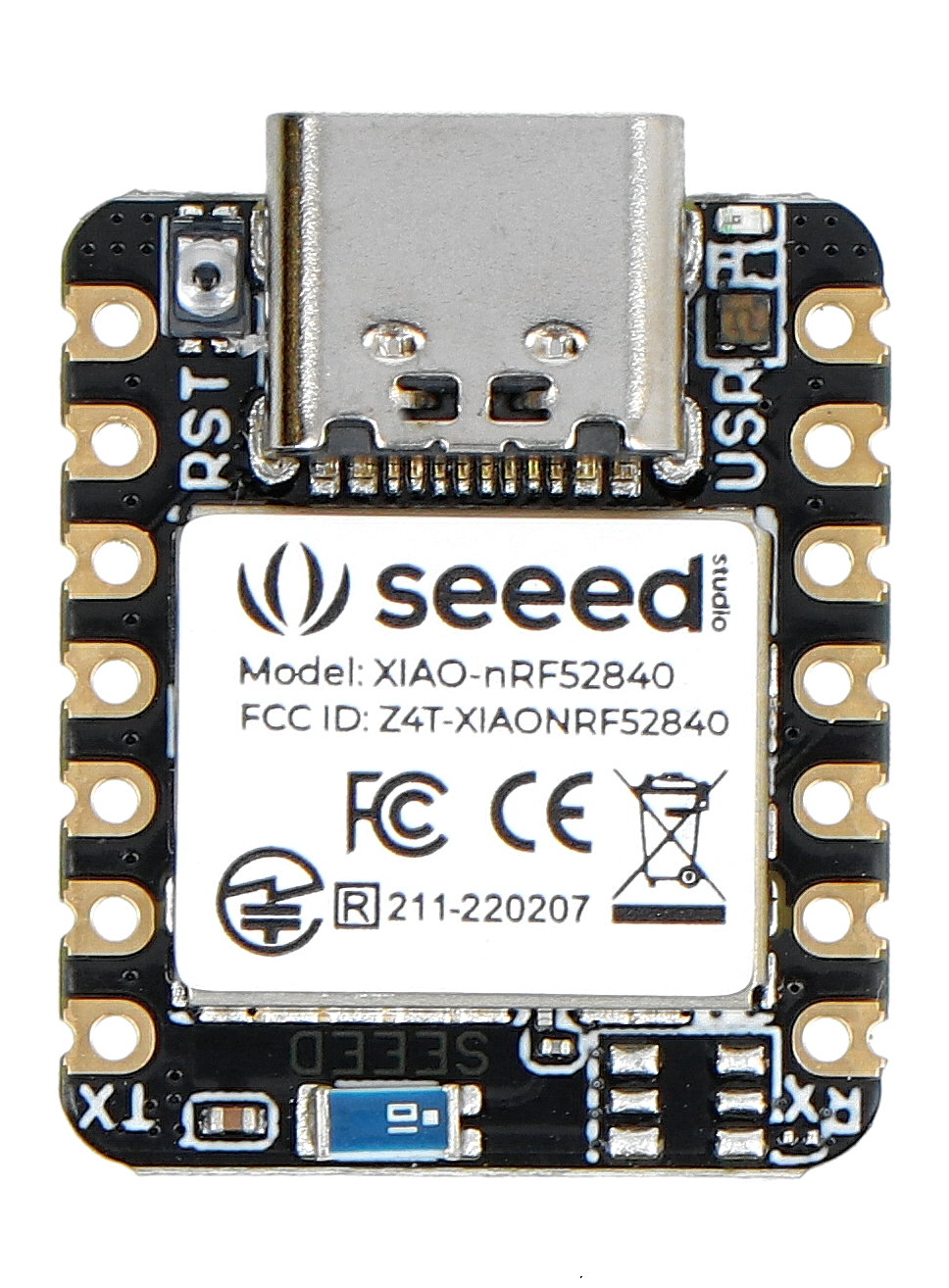

Seeed Xiao nRF52840.
Seeed Xiao BLE nRF52840 - Arduino / MicroPython - Bluetooth 5.0 with built-in antenna - Seeedstudio 102010448.

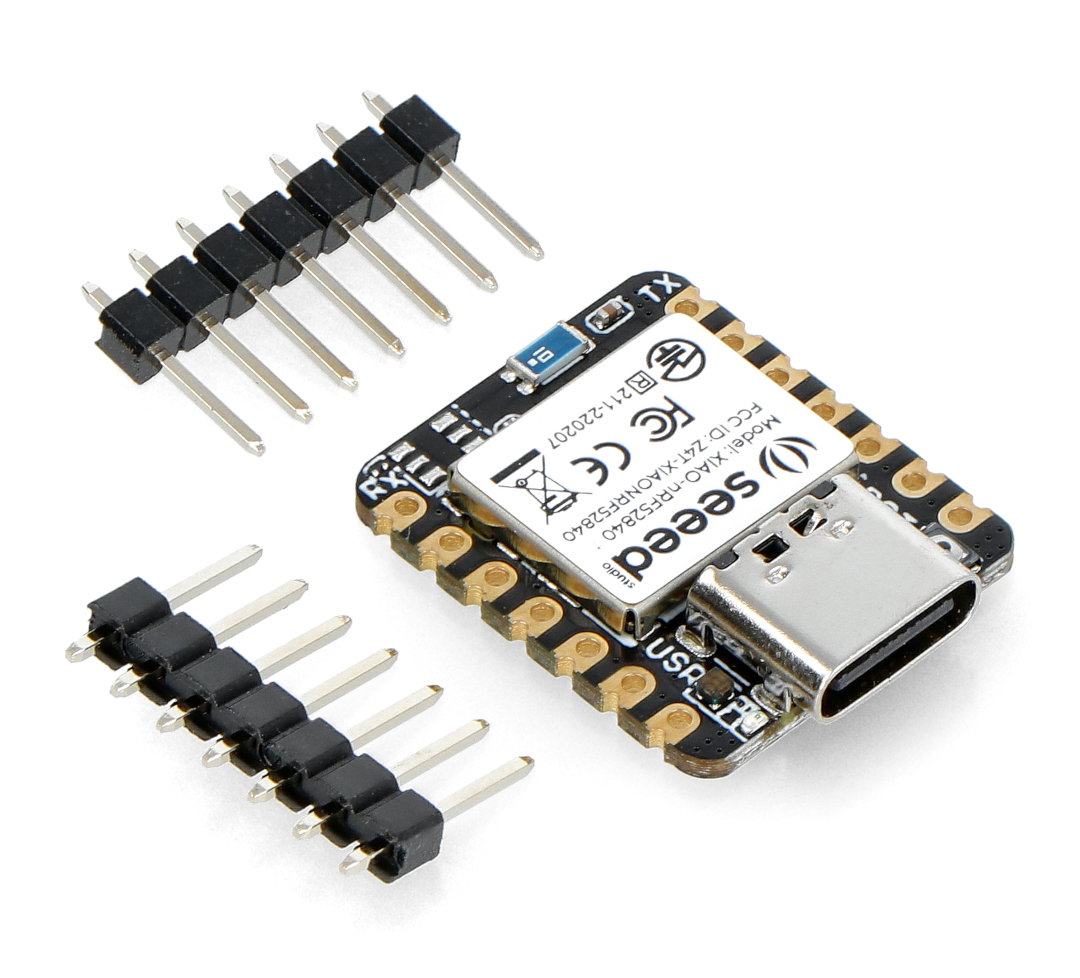

Kit contents
- Seeed Xiao BLE nRF52840 - Arduino / MicroPython - Bluetooth 5.0 with built-in antenna - Seeedstudio 102010448
- 2x male goldpin strip 1x 7-pin
Specification of Seeed Xiao nRF52840
- Processor: Nordic nRF52840, ARM Cortex-M4 64 MHz
- Wireless Connectivity: Bluetooth 5.0, NFC, ZigBee
- Chip memory: 1 MB Flash memory and 256 KB RAM memory
- Board memory: 2 MB of QSPI Flash memory
- Interfaces:
- 1x UART
- 1x I2C
- 1x SPI
- 1x NFC
- 1x SWD
- 11x GPIO (PWM)
- 6x ADC
- Working voltage: 3.3 V / 200 mA
- Charging current: 50 mA / 100 mA
- Input voltage: 5V
- Standby current consumption: less than 5 μA
- Dimensions: 21 x 17.5 mm
