Product description: Seeed Xiao ESP32-S3 Sense - set with camera OV2640 - WiFi / Bluetooth - Seeedstudio 113991115
A set from Seeedstudio consisting of two modules - Seeed Xiao ESP32-S3 and the OV2640 camera. The Seeed Xiao module is equipped with the ESP32-S3 system with a dual-core Xtensa 32-bit LX7 processor operating at a frequency of up to 240 MHz . It has 8 MB of PSRAM and 8 MB of Flash memory, it also enables wireless communication with WiFi 2.4 GHz and Bluetooth 5.0 and Bluetooth mesh . The module with the camera also offers the user an integrated digital microphone , thanks to which it extends the functionality of the Seeed Xiao ESP32-S3 with video and sound capabilities. The resolution of the camera is 1600 x 1200 px. The Xiao series modules are small in size and versatile in IoT applications, and thanks to the built-in computing power and image processing functionality, they can also be used in work with artificial intelligence.
Also check the manufacturer's user guide .

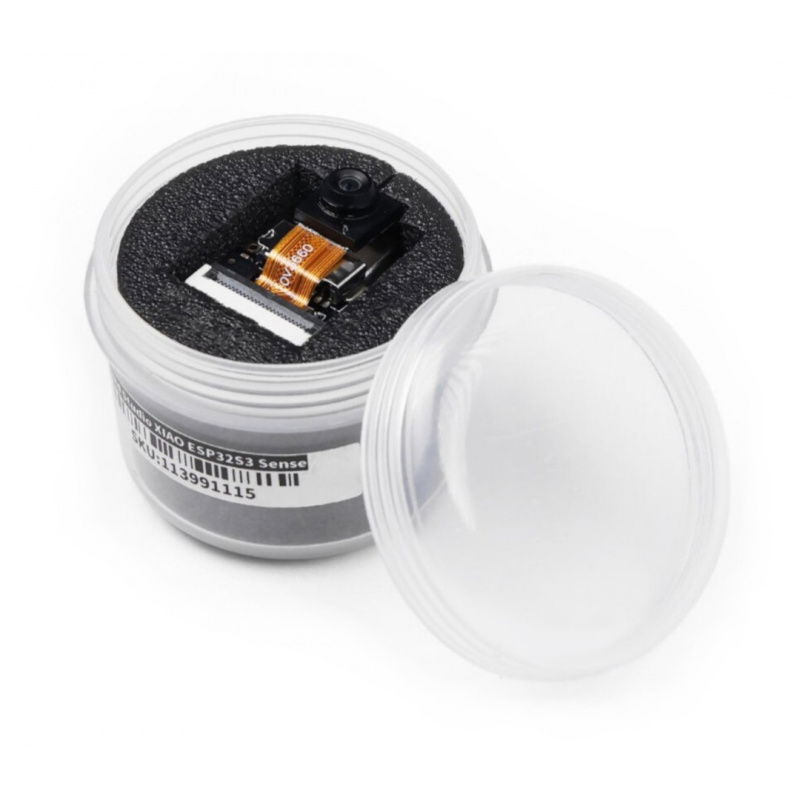

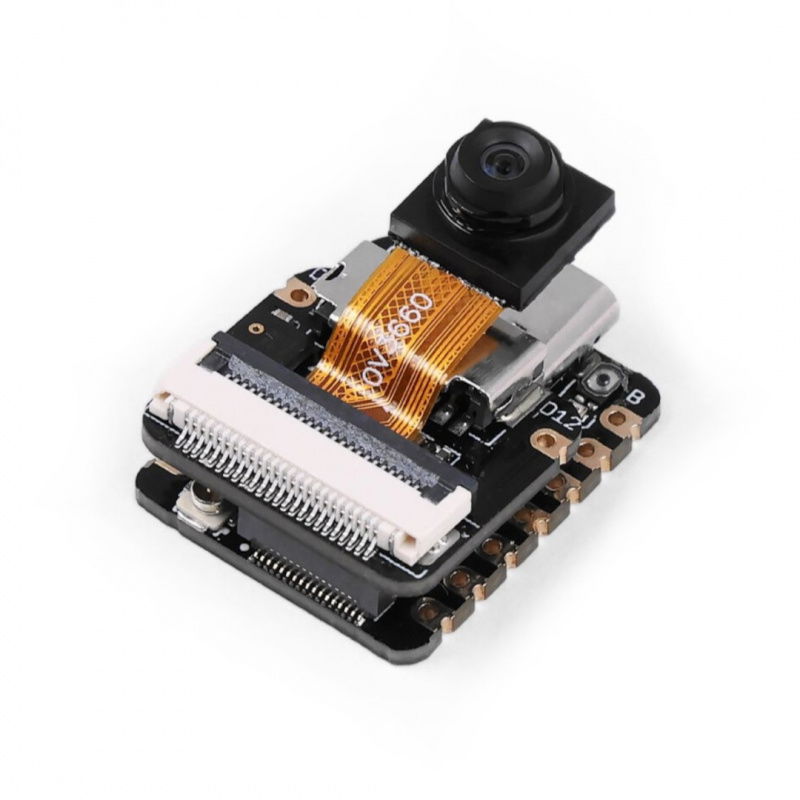

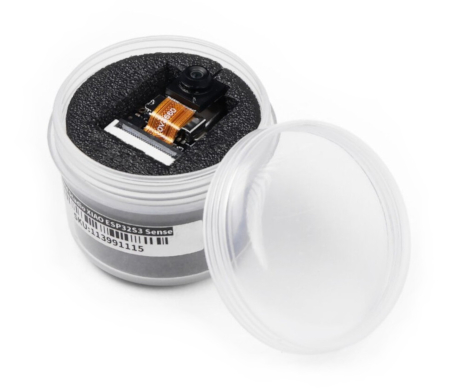

Seeed Xiao ESP32-S3 Sense - set with camera OV2640 - WiFi / Bluetooth - Seeedstudio 113991115.
Xiao series tiles are compatible with the Grove ecosystem.
Special features of Seeed Xiao ESP32-S3
- Efficient layout: the board is based on the ESP32-S3 system from Xtensa.
- Range of interfaces: the board offers the user many communication ports, is supported by the Arduino IDE and CircuitPython.
- Wireless communication: the module has a built-in WiFi 2.4 GHz and Bluetooth Low Energy 5.0 communication system, and the maximum data transmission distance is 100 m (with the U.FL antenna mounted included in the set)
- Small dimensions: the dimensions of the board are only 21 x 17.5 mm, which allows it to be used also in projects with limited space.
Seeed Xiao ESP32-S3 Sense technical specification
- Model: Seeed Xiao ESP32-S3 Sense - set with the OV2640 camera
- Chip: ESP32-S3R8 dual-core 32-bit Xtensa LX7 processor running at up to 240MHz
- Wireless communication: WiFi 2.4 GHz, Bluetooth 5.0, Bluetooth mesh

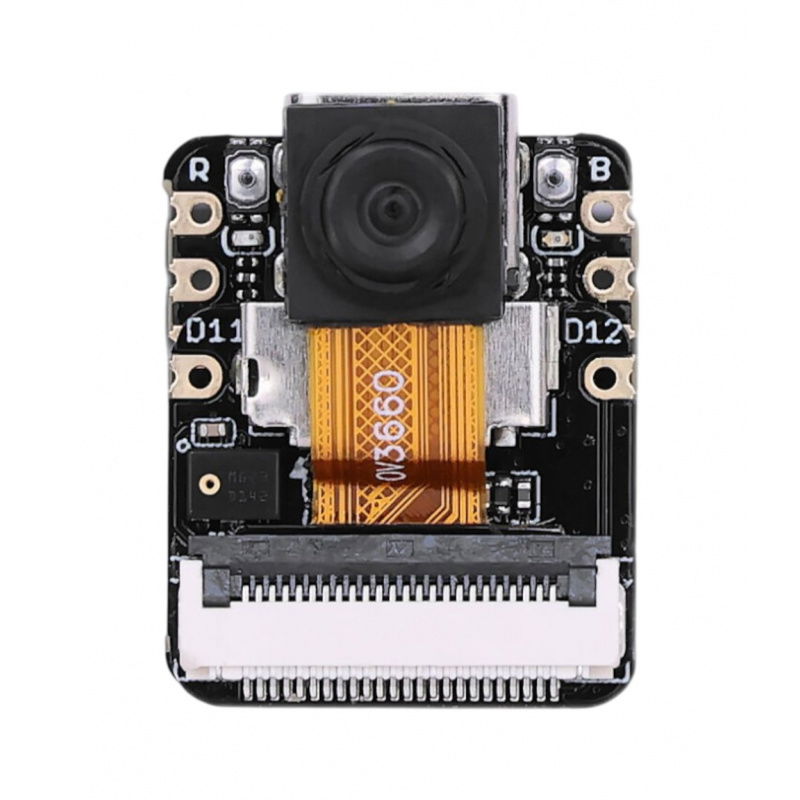

- Built-in sensors: OV2640 camera module with a resolution of 1600 x 1200 px, digital microphone
- Memory: Built-in microSD memory card slot, 8MB PSRAM and 8MB Flash, supporting 32GB FAT
- Interfaces: 1x UART,1x I2C,1x I2S,1x SPI,11x GPIO (PWM),9x ADC,1x User LED, 1x Charge LED, 1x B2B connector (with 2 additional GPIOs), 1x Reset button, 1x Boot button
- Power parameters: Input voltage (USB type C): 5 V; input voltage (BAT): 4.2V
- Standby power consumption: USB Type-C: 5V / 38.3mA; BAT: 3.8V / 43.2mA (with camera)
- Battery charging current: 100mA
- Power consumption with WiFi on: ~ 110 mA (with camera)
- Power consumption in BLE mode: ~ 102 mA (with camera)
- Operating temperature: -40°C to 65°C

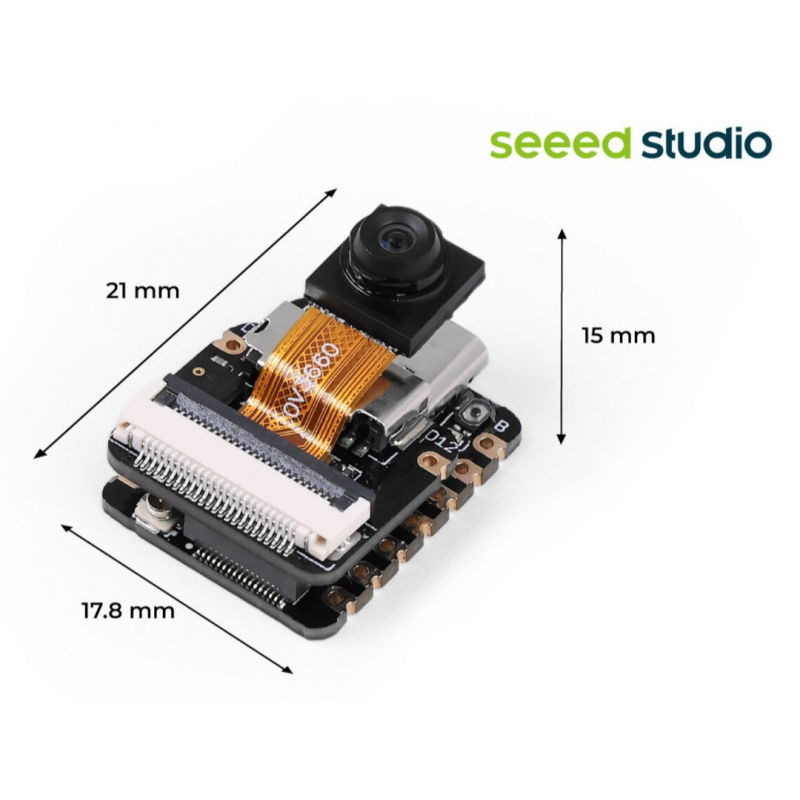

- Board dimensions: 21 x 17.5 x 15 mm (with camera)

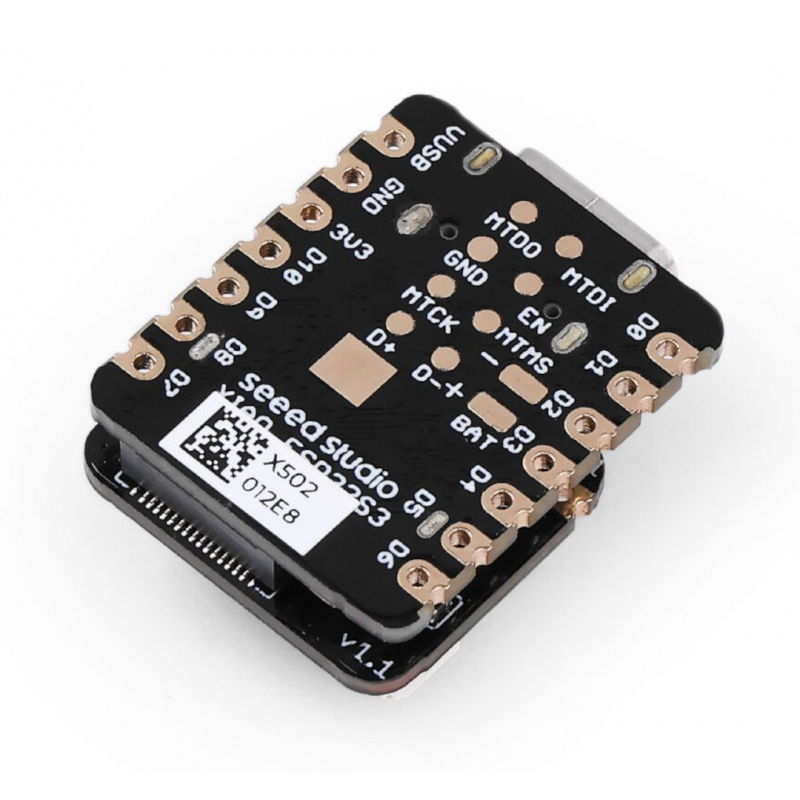

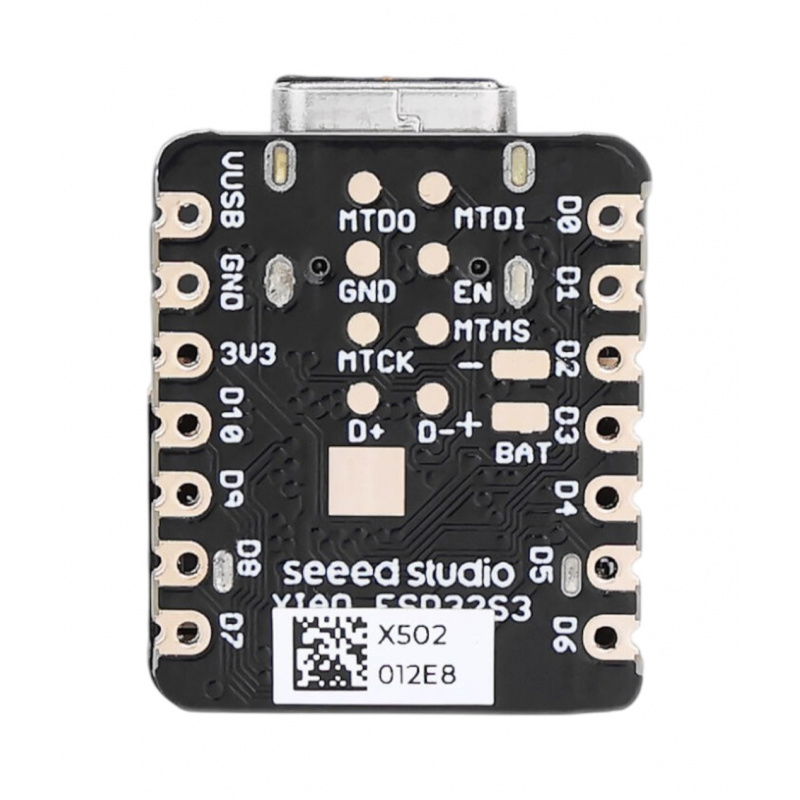

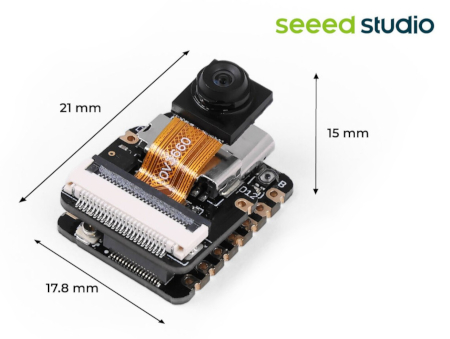

Seeed Xiao ESP32-S3 Sense.

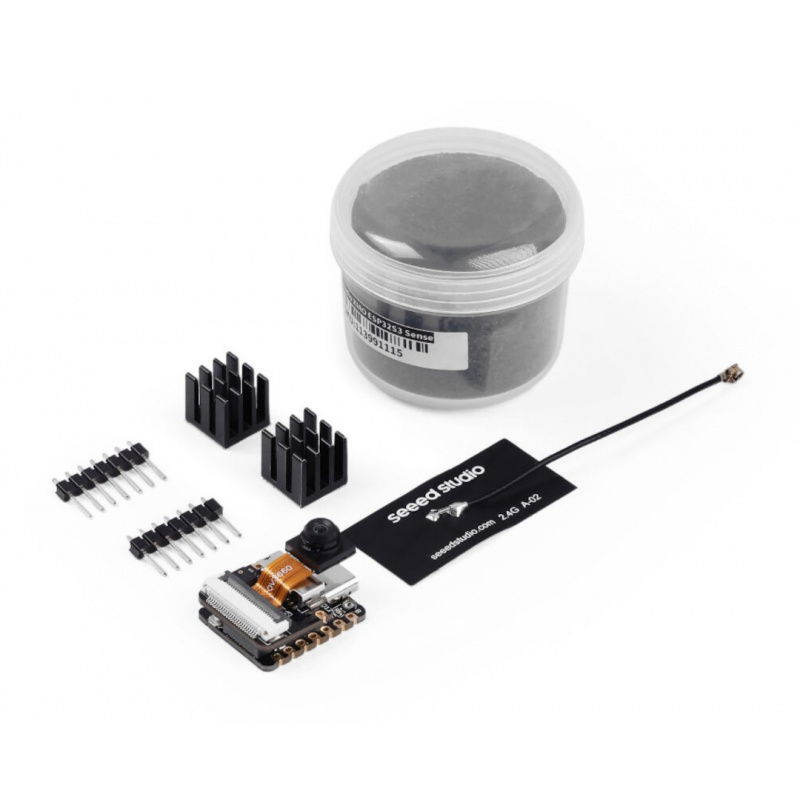

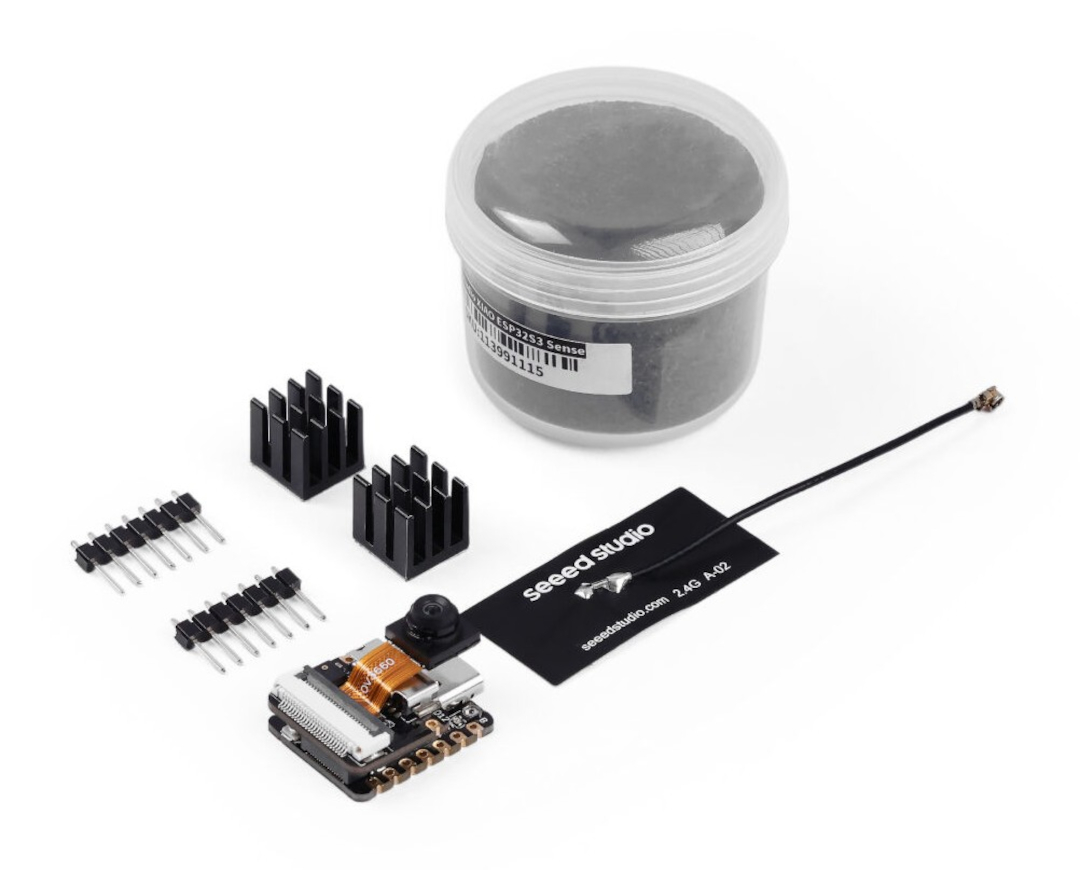

Components included in the set.
