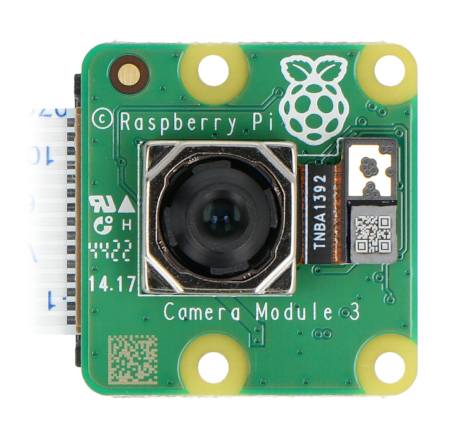

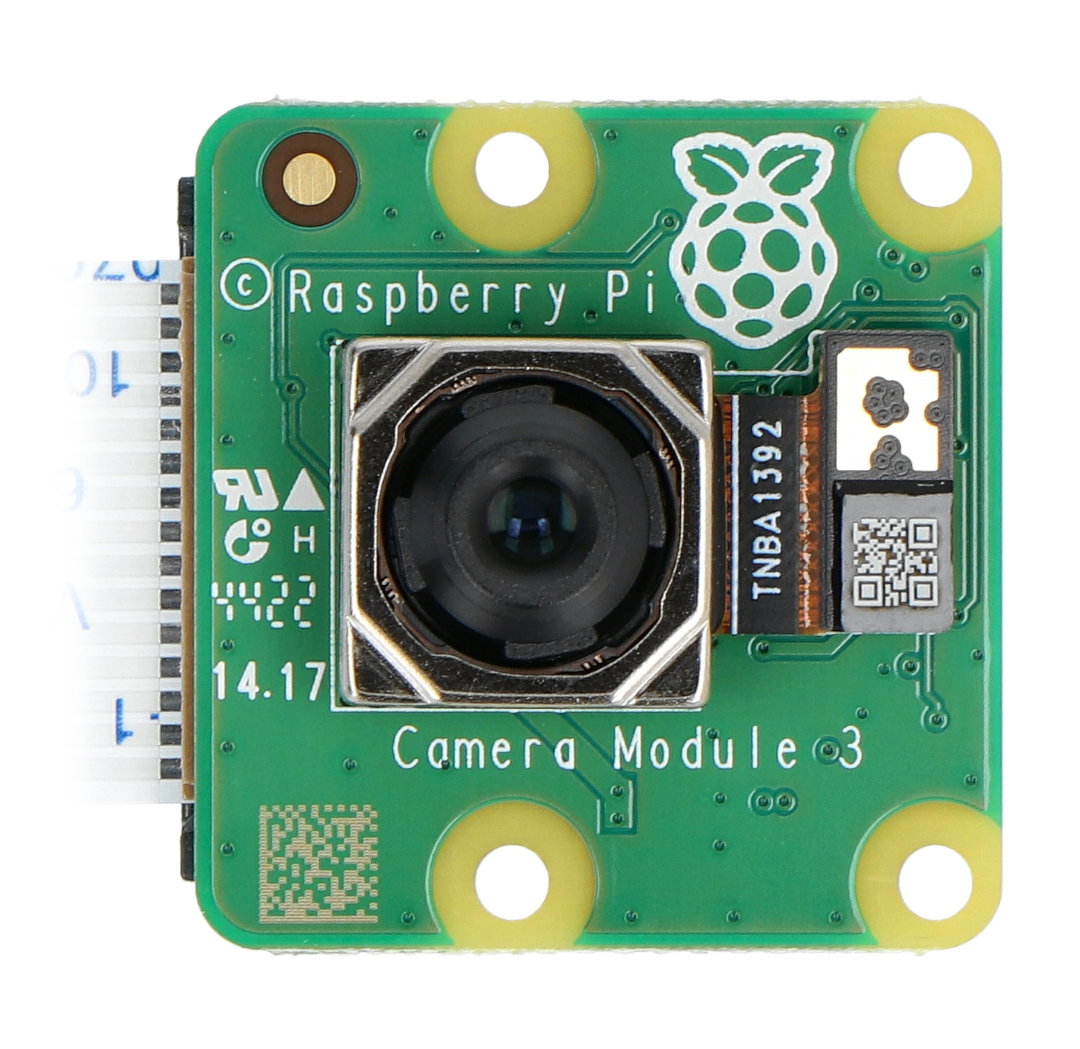

Product description: Raspberry Pi Camera HD v3 12 MPx - original camera for Raspberry Pi
The third installment of the official Raspberry Pi camera , which can be connected directly to the connector of the minicomputer. The module is equipped with a Sony IMX708 sensor with a resolution of 12 MPx . The third version of the camera supports a wide dynamic range (HDR - High Dynamic Range) and autofocus, the sensitivity in low light has been improved. The camera's angle of view (FoV) is 76° . The Raspberry Pi minicomputer has hardware support for this camera, thanks to which it does not consume processor power. The Raspberry Pi OS system has been equipped with the appropriate drivers for the camera, so there is no need to install them yourself, and the configuration of the camera itself is simple and user-friendly. In our offer you will also find a camera with a larger viewing angle of up to 120°, a night camera without an IR filter and a night camera with a larger viewing angle.
Official Raspberry Pi Camera v3.Our store's offer also includes housings, holders and connecting tapes of various lengths for Raspberry Pi cameras. We also recommend HQ cameras with C-mount and M12 lenses.
Simple setup and full compatibility with Raspberry Pi
The third version of the popular camera module from the Raspberry Pi foundation is fully compatible with the drivers installed in the latest version of the Raspberry Pi OS (formerly known as Raspbian). By choosing the official Raspberry Pi camera, you can count on full support in the field of documentation, guides and programming libraries, as well as a large community.
How to run the Raspberry Pi camera?
In order to run the camera from the Raspberry Pi minicomputer, you only need to run the camera interface via raspi-config and run the appropriate command from the terminal to take a photo or record a video, e.g. raspistill.
Main Features of Raspberry Pi Camera v3
- 12-megapixel Sony IMX708 CMOS sensor
- High signal-to-noise ratio (SNR)
- Built-in 2D Dynamic Pixel Defect Correction (DPC)
- Phase Detection Autofocus (PDAF) for fast autofocus
- QBC re-teasing function
- HDR mode (output up to 3 megapixels)
- CSI-2 serial data output
- 2-line serial communication (supports I2C fast mode and fast mode plus)
- 2-line serial control of the focus mechanism
Raspberry Pi Camera HD v3 specification
- Sensor: Sony IMX708
- Matrix resolution: 11.9 MPx
- Sensor size: 7.4 mm diagonal
- Focal length: 4.74mm
- Pixel size: 1.4 x 1.4 μm
- Resolution: 4608 x 2592 px
- Video modes: 1080p50, 720p100, 480p120
- Output: RAW10
- Viewing angle: 75°
- Aperture: F1.8
- Focus setting: autofocus
- Focus range: from 10 cm to infinity
- HDR: yes
- IR filter: no

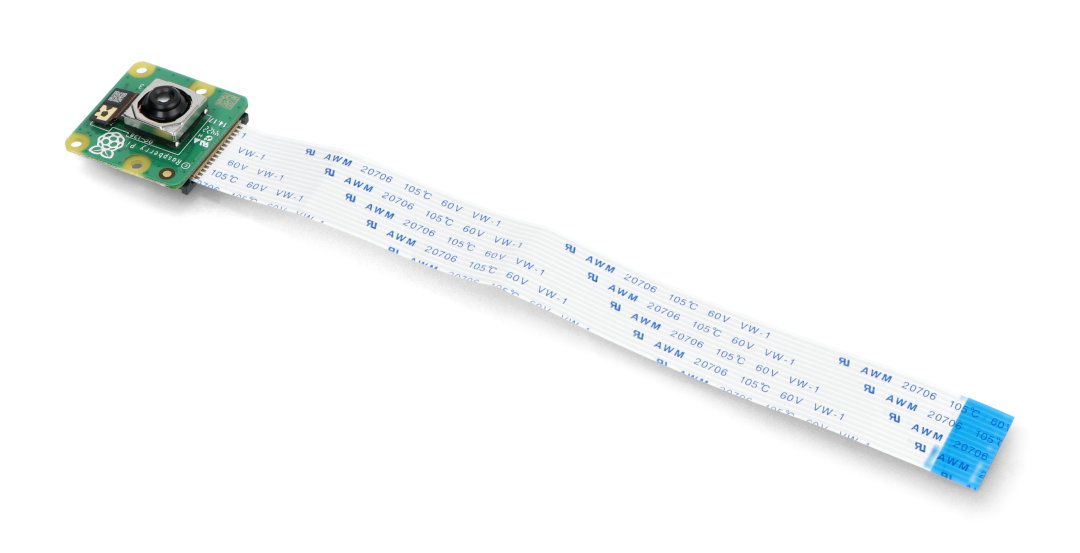

- Belt length: 200 mm
- Connector: 15x1mm FPC
- Dimensions: 25x24x11.5mm
Raspberry Pi Camera HD v3 12 MPx - original camera for Raspberry Pi.
