Product description: Raspberry Pi Global Shutter IMX296 1.5 Mpx camera - for Raspberry Pi

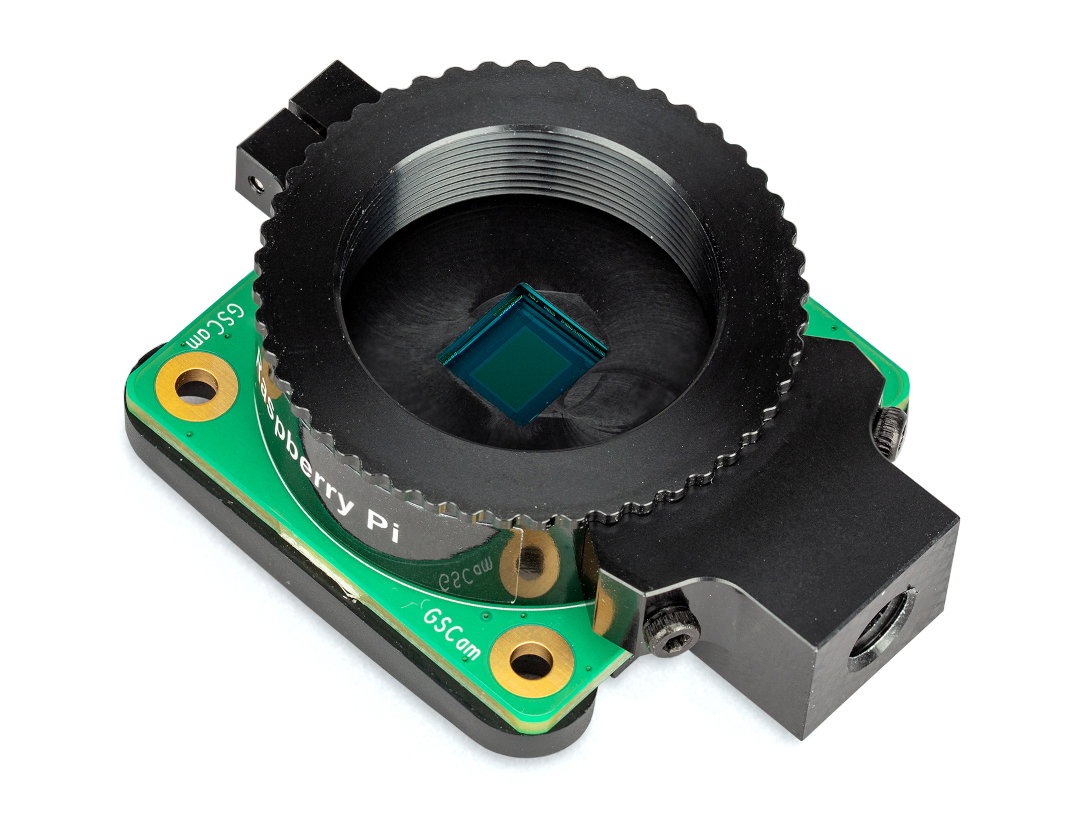

The official Raspberry Pi camera with Global Shutter is based on the Sony IMX296 sensor with a resolution of 1.5 Mpx, 1456 x 1088 px . Works with the same lenses as the official Raspberry Pi HQ C-/CS-mount camera. This type of camera is ideal for applications that require accurate capture of high-speed moving images, including sports photography and machine vision. The camera is compatible with all Raspberry Pi models using the latest software from the website: https://www.raspberrypi.org/
Attention!
The camera is not equipped with a lens , it must be purchased separately
Raspberry Pi Global Shutter IMX296 1.5 Mpx camera - for Raspberry Pi.What is Global Shutter?
Global Shutter is a technology in which the sensor simultaneously starts and ends exposures. This means that the images from Global Shutter cameras are snapshots of a single point taken instantaneously, resulting in sharp images of moving objects, without the effect of noise and distortion. However, even though the images are taken at the same time, with no time difference, the image reading is slow because this technology has a limited read speed due to having only one analog-to-digital converter (ADC).
Raspberry Pi Global Shutter camera specification
- Sensor: Sony IMX296LQR-C
- Resolution: 1.58 Mpx
- Technology: Global Shutter (global shutter)
- Lens mount: C- / CS-mount
- Sensor diagonal: 6.3 mm
- Pixel size: 3.45 x 3.45 μm
- Output format: RAW10
- Back focus: adjustable (from 12.5mm to 22.4mm)
- Sealing class: IP40
- Tripod mount: 1/4" - 20
- Dimensions: 38 x 38 x 19.8 mm (29.5 mm with protective cap adapter)
- Weight: 34 g (41 g with adapter and protective cap)

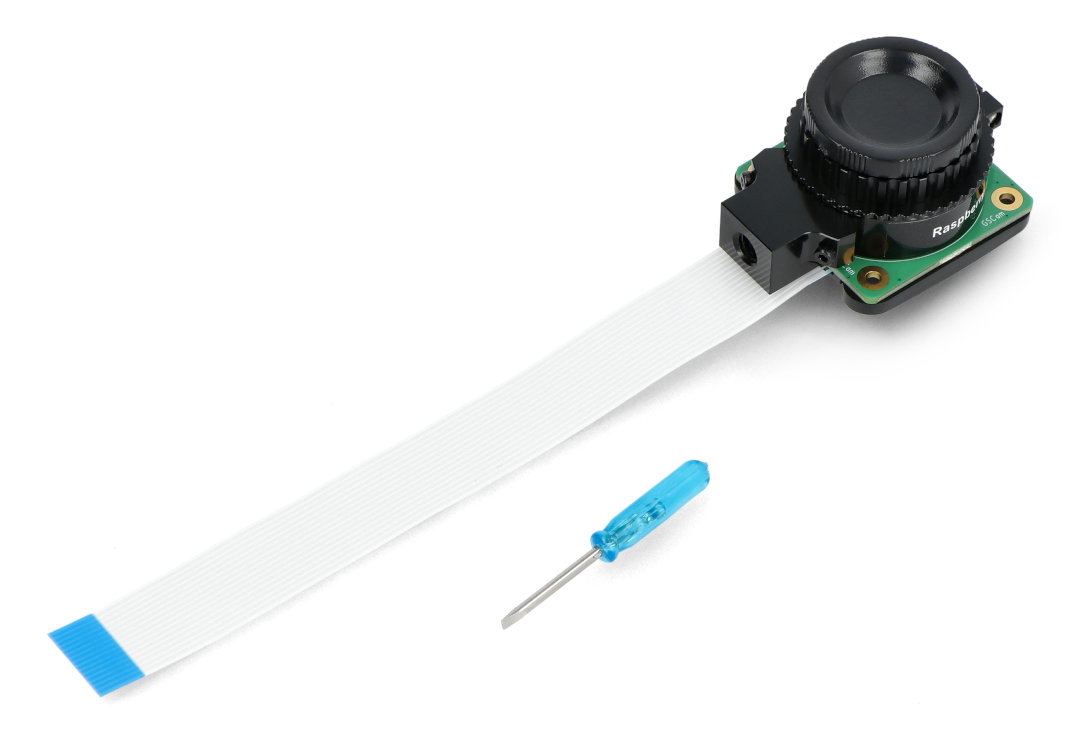

Kit contents
- Raspberry Pi Global Shutter IMX296 1.5 Mpx camera - for Raspberry Pi
- 150mm FPC cable
- Aluminum lens holder with a tripod and a focusing ring
- C-Mount lens adapter
- A small, flat screwdriver
The official Raspberry Pi Global Shutter camera.
