Raspberry Pi 4 model B WiFi Dual Band Bluetooth 4GB RAM 1.8GHz

Index: RPI-14647 EAN: 5056561800349

Raspberry Pi 4 model B with 4 GB RAM. The model is equipped with two microHDMI ports, two USB 3.0 ports and 2 USB 2.0 ports as well as a USB-C power supply connector. The board also has dual-band 2.4 GHz and 5 GHz WiFi, Bluetooth 5 / BLE, Ethernet port with speed up to 1000 Mbps and the ability to supply power via PoE. The other elements are the same as in Raspberry Pi 3 B+.

Raspberry Pi 4 model B WiFi Dual Band Bluetooth 4GB RAM 1.8GHz
€62.90
€51.14 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Raspberry Pi

Description of product: Raspberry Pi 4 model B, WiFi, 2x microHDMI, USB-C, USB 3.0, 4 GB of RAM 1.8 GHz

Raspberry Pi 4 model with the increased RAM of 4 GB. This model has a more efficient processor, Broadcom BCM2711 quad-core 64-bit ARM-8 Cortex-A72 1.8 GHz, two microHDMI portstwo USB 3.0 ports and 2 USB 2.0 ports, as well as a USB-C power supply connector. The board is supplied with dual-band 2.4 GHz and 5 GHz WiFi, Bluetooth 5 / BLE, Ethernet port with speed to 1000 Mbps and the possibility of power supply via PoE. The other characteristics remain the same as in model 3 B+. Onboard there are still: 40 pin GPIO header (2x20 pin, raster: 2.54), microSD slot for memory cards, DSI and CSI connectors, which allow for the extension with a camera and a display. Thanks to four mounting holes it is very easy to install the board in the chosen spot.

What is new in Raspberry Pi 4?

Feature Description

3 versions of minicomputer

Raspberry Pi 4 is sold in three versions, differing in RAM:

Processor BCM2711

Chipset Broadcom BCM2711 64-bit core Quad-core ARM-8 Cortex-A72 processor, running at 1.8 GHz offers more power than the previous Raspberry Pi models.

2 microHDMI display ports

Raspberry Pi 4 has two microHDMI ports, making it possible to simultaneously connect two HDMI monitors with resolutions up to 4K (4K and 60 fps for a single display, and 4K and 30 fps for two displays).
2 USB 3.0 ports Minicomputer has 4 USB port. Two in 2.0 version and two powerful USB 3.0 ports.
Ethernet speed up to 1000 Mbps

Ethernet connector in fullGigabit version, ethernet provides faster cable Internet.

USB-C power connector

The power connector has been adapted to modern standards. Raspberry Pi has a USB-C connector. The manufacturer recommends a supply voltage of 5 V / 3 A.

Bluetooth 5.0

The new wireless standard, offering data transfer speeds up to 2 Mb/s.

Layout of connectors

The layout of the board remains the same, but the layout of the connectors has changed.

Image and sound in minicomputer Raspberry Pi 4

Raspberry Pi has two microHDMI ports, through which it can pass the image and sound even at 4 K and 60 fps for one display and 30 fps for two displays. Built-in 4-pin 3.5 mm Jack for headphones, speaker systems or for video output using standard RCA Composite. Raspberry Pi supports the H265 (4Kp60), H. 264 (1080p30) compression standard OpenGL ES 1.1, 2.0 and 3.0 graphics.

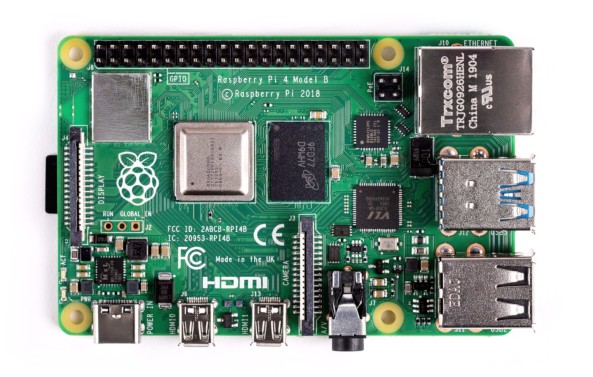

Raspberry Pi 4 model B

Raspberry Pi 4 model B - top view.

Operating system for Raspberry

The drive of the minicomputer is still the microSD memory card. The manufacturer did not use eMMC memory. The operating system can be downloaded via the computer with the card reader. In our offer you will find a corresponging card with preinstalled software NOOBs that enables you to install one of systems: Raspberry Pi OS, Openelec, RaspBMC, or OSMC Linux at the first run.

Check out how to install the operating system Raspberry Pi OS



System installation and first start of Raspberry Pi.

Communication in Raspberry Pi 4

Raspberry Pi is equipped with 4 popular communication interfaces, available in a traditional PC. The main ones are:

  • 2 microHDMI ports for simultaneous connection of two videos receivers even in 4K.

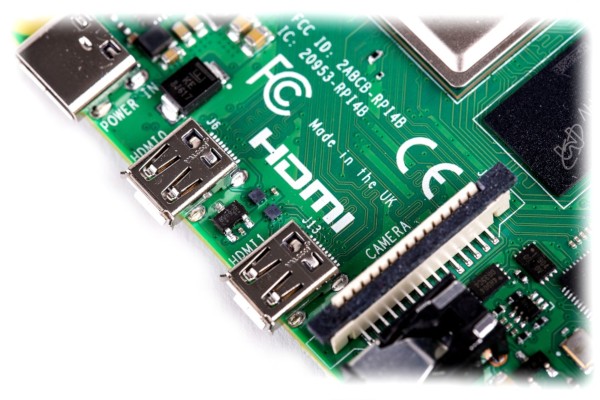

Raspberry Pi 4 - złącza microHDMI

  • 2 USB 3.0 and 2 USB 2.0 ports, which can connect peripheral devices. USB 3.0 provides fast transfer from the external drive. The use of an extra USB Hub allows you to add additional connectors.

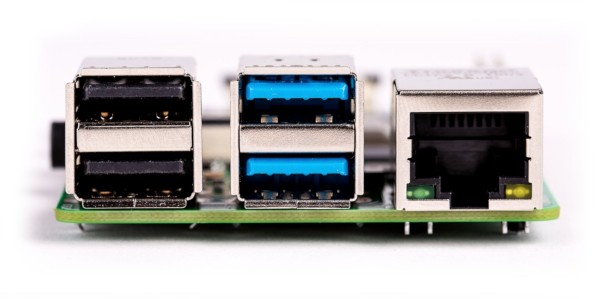

Raspberry Pi 4 - złącza USB 3.0

  • Ethernet connector, for connection to the cable network at speeds up to 1 GB/sec.

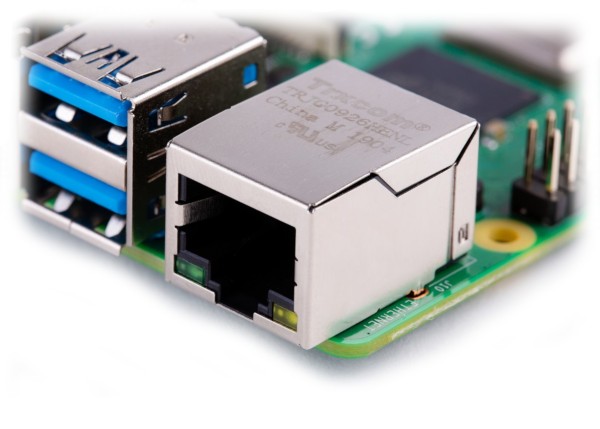

Raspberry Pi 4 - złącze Ethernet

  • WiFi module - dual band 2.4 GHz and 5 GHz, 802.11 b/g/n/ac, working with the drivers built in the latest system Raspbian / NOOBs
  • Bluetooth 5 module is a popular wireless network in the newest 5.0 standard
  • GPIO - 40 pin GPIO header used for LEDs, buttons, motor drivers and interfaces: I2C, SPI, and UART and many more.

ThingSpeak platform for Arduino and Raspberry Pi IoT.

Power supply of minicomputer Raspberry Pi 4

Raspberry Pi 4 need a power supply with USB-C connector and an output voltage of 5 V. The minimum recommended current is 3 A. We recommend to use power supply units from our offer.

Specification and comparison of the Raspberry Pi 3, 3+ and 4

Basic information
  Raspberry Pi 3 vs 2 Raspberry Pi 3 vs 3 B+ Raspberry Pi 3 vs 3 B+ vs 4
Model Raspberry Pi 3 model B Raspberry Pi 3 model B+ Raspberry Pi 4 model B
Edition 3 - 2016. 3 - by 2018. 6 - 2019.
Technical specification
Processor chipset Broadcom BCM2837 64-bit Broadcom BCM2837B0 64-bit Broadcom BCM2711 64-bit
Core Quad-Core ARM Cortex A53 Quad-Core ARM Cortex-A53 Quad-Core ARM Cortex-A72
Operating systems

Linux Raspberry Pi OS

Windows 10 IoT

Linux Raspberry Pi OS

Windows 10 IoT

Linux Raspberry Pi OS

Clock frequency 1.2 GHz 1.4 GHz 1.8 GHz
Architecture ARMv8-A ARMv8-A ARMv8-A
RAM 1 GB LPDDR2 @ 900 MHz 1 GB LPDDR2 @ 900 MHz

Three versions:

  • 2 GB LPDDR4
  • 4 GB LPDDR4
  • 8 GB LPDDR4
Memory microSD memory card microSD memory card microSD memory card
Connectors GPIO

40 GPIO pin header (2x20 pin)

raster 2.54 mm

40 GPIO pin header (2x20 pin)

raster 2.54 mm

40 GPIO pin header (2x20 pin)

raster 2.54 mm

Power supply

A 5.1 V / 2.5 A

via microUSB

  • 5.0 V / 2.5 A
    via microUSB
  • 5 V through GPIO
  • PoE with
    additional extension
  • 5.0 V / 3 A
    via USB-C
  • 5 V through GPIO
  • PoE with
    additional extension
Dimensions 85 x 56 x 17 mm 85 x 56 x 17 mm 85 x 56 x 17 mm
Interfaces
USB interface 4x USB 2.0 - connector type A 4x USB 2.0 - connector type A

2x USB 2.0, connector type A

2x USB 3.0 connector type A

Network interface Ethernet port 10/100 Mbps Ethernet port 300 Mbps Ethernet port 100/1000 Mbps
Wi-Fi interface 802.11 b/g/n 150 Mbps

Dual Band (2.4 GHz and 5 GHz

802.11 b/g/n/ac

Dual Band (2.4 GHz and 5 GHz

802.11 b/g/n/ac

Bluetooth Low Energy, BLE 4.1 Low Energy, BLE 4.2 Low Energy, BLE 5
Camera CSI connector CSI connector CSI connector
Touchscreen display DSI connector DSI connector DSI connector
Video HDMI HD 1080px / 30 fps

HDMI HD 1080px / 30 fps

1080p30 H. 264

OpenGLES 1.1, 2.0

2 x microHDMI
H. 265 4K 60 fps
H. 264, 1080p, 30 fps
OpenGLES 1.1, 2.0, 3.0

Communication UART, SPI, I2C, GPIO UART, SPI, I2C, GPIO UART, SPI, I2C, GPIO



Advantages

  • Equipped with a powerful Broadcom BCM2711 quad-core ARM Cortex
  • A72 1.8 GHz processor.
  • Available in multiple RAM options: 2 GB, 4 GB, and 8 GB for versatile performance needs.
  • Dual microHDMI ports support up to two 4K displays simultaneously.
  • Includes both USB 3.0 and USB 2.0 ports for fast data transfer and peripheral connectivity.
  • Gigabit Ethernet port provides high-speed wired internet connection up to 1000 Mbps.
  • Supports dual-band WiFi (2.4 GHz and 5 GHz) and Bluetooth 5 / BLE for robust wireless connectivity.
  • Modern USB-C power supply connector with recommended voltage of 5 V / 3 A.
  • Maintains compatibility with existing Raspberry Pi accessories like GPIO headers, DSI, CSI connectors, etc.
  • Enhanced multimedia capabilities including H265 (4Kp60) video support and OpenGL ES graphics.

Disadvantages

  • Can be challenging for users not familiar with Linux due to the complexity of driver installation and system configuration.
  • Lack of eMMC memory; relies on microSD cards which can be slower and less reliable than onboard storage solutions.

AI generated based on user reviews

UC - Microcontroller BCM2711
UC - Core Cortex A72
UC - RAM 4 GB
UC - core 4. Quad Core
UC - Digital pins 40
UC - External memory microSD card
UC - freq 1.5 GHz
UC - Ethernet yes
UC - WiFi yes
UC - USB 2x USB 3.0 + 2x USB 2.0
UC - microSD yes
UC - Bluetooth yes
UC - HDMI yes
UC - I2C yes
UC - UART yes
UC - Connector USB typ C
UC - SPI interface yes
UC - LCD interface yes
UC - Camera interface yes
UC - Linux yes
UC - Android no
UC - Windows no
Package width 7 cm
Package height 9.5 cm
Package depth 2.7 cm
Package weight 0.066 kg

Fred

10/11/21

Question: What is the load capacity of the USB ports on the Raspberry Pi 4. Is it possible to directly connect a 2.5'' drive via USB ? Is the date of availability of this model for sale ?
Answer: The maximum output current of the USB ports is 1.2 A. You can connect a 2.5" drive through the USB port. The term is current.
