Description: RetroPie Gaming Kit - Raspberry Pi 4B - 4GB console building kit.
A set to build a gaming console based on theRaspberry Pi 4Bminicomputerin 4 GB version, together witha microSD cardwith NOOBs uploaded and a 3 A power supplyand an effectively coolingaluminum housing. Additionally, 2 controllers like those from the NintendoSuper console are included in the set. The set allows for free use of the RetroPie emulator.
| L.p. | Photo | Name |
|---|---|---|
| 1 |  |

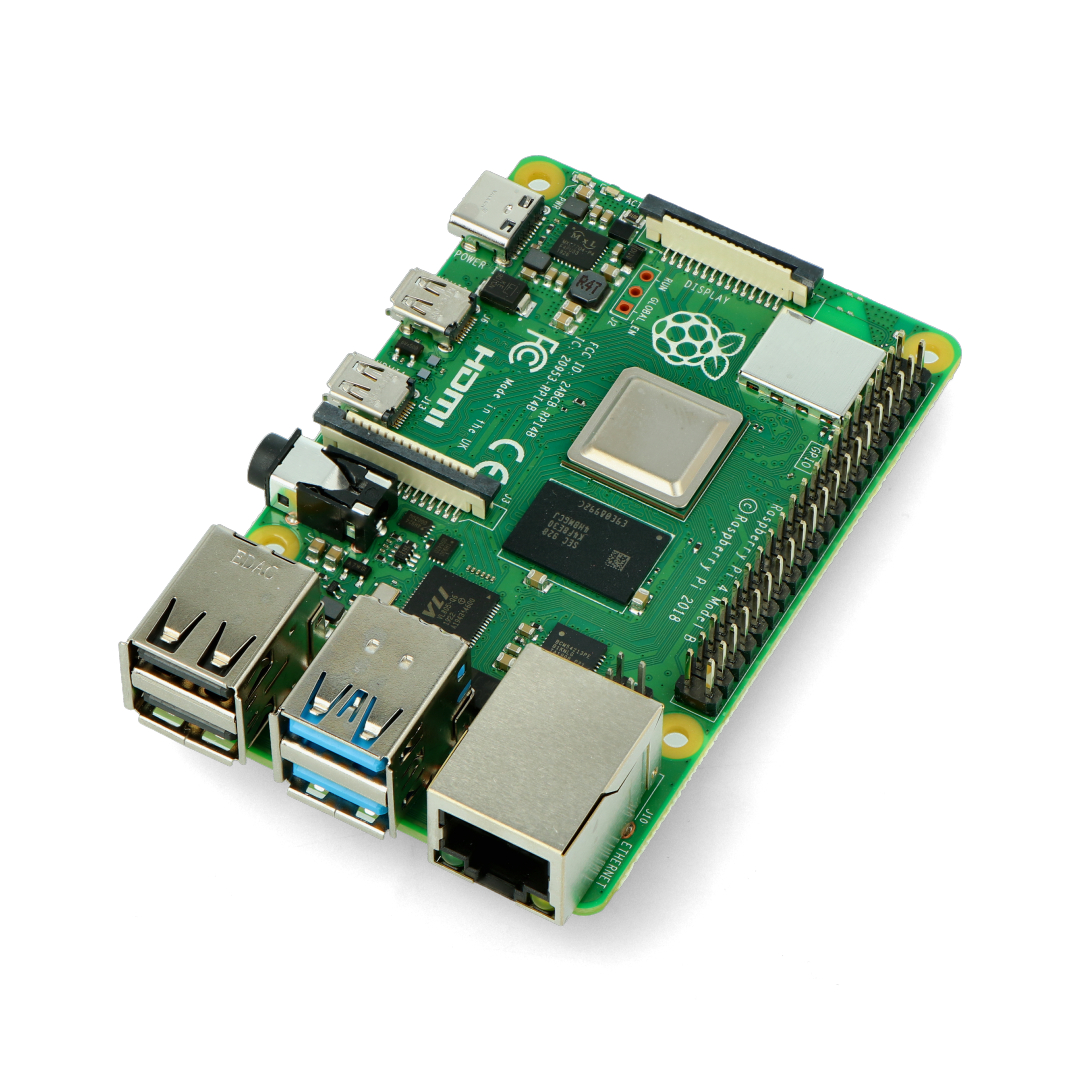

Raspberry Pi 4 Model B 4 GB RAM-The latest release of the popular Raspberry Pi 4 B mini-computer.This model distinguishes more efficient Broadcom BCM2711 quad-core 64-bit ARM-8 Cortex-A72 1.8 GHz processor. In addition, the board has dual band 2.4 GHz and 5 GHz WiFi, Bluetooth 5 / BLE,Ethernetport with a speed of up to 1000 Mbps and the ability to power through PoE. |
| 2 |  |
Raspberry Pi power supply- Apower supply with a USB C-type connector compatible with the Raspberry Pi mini-computer with a maximum current output of 3 A. |
| 3 |  |

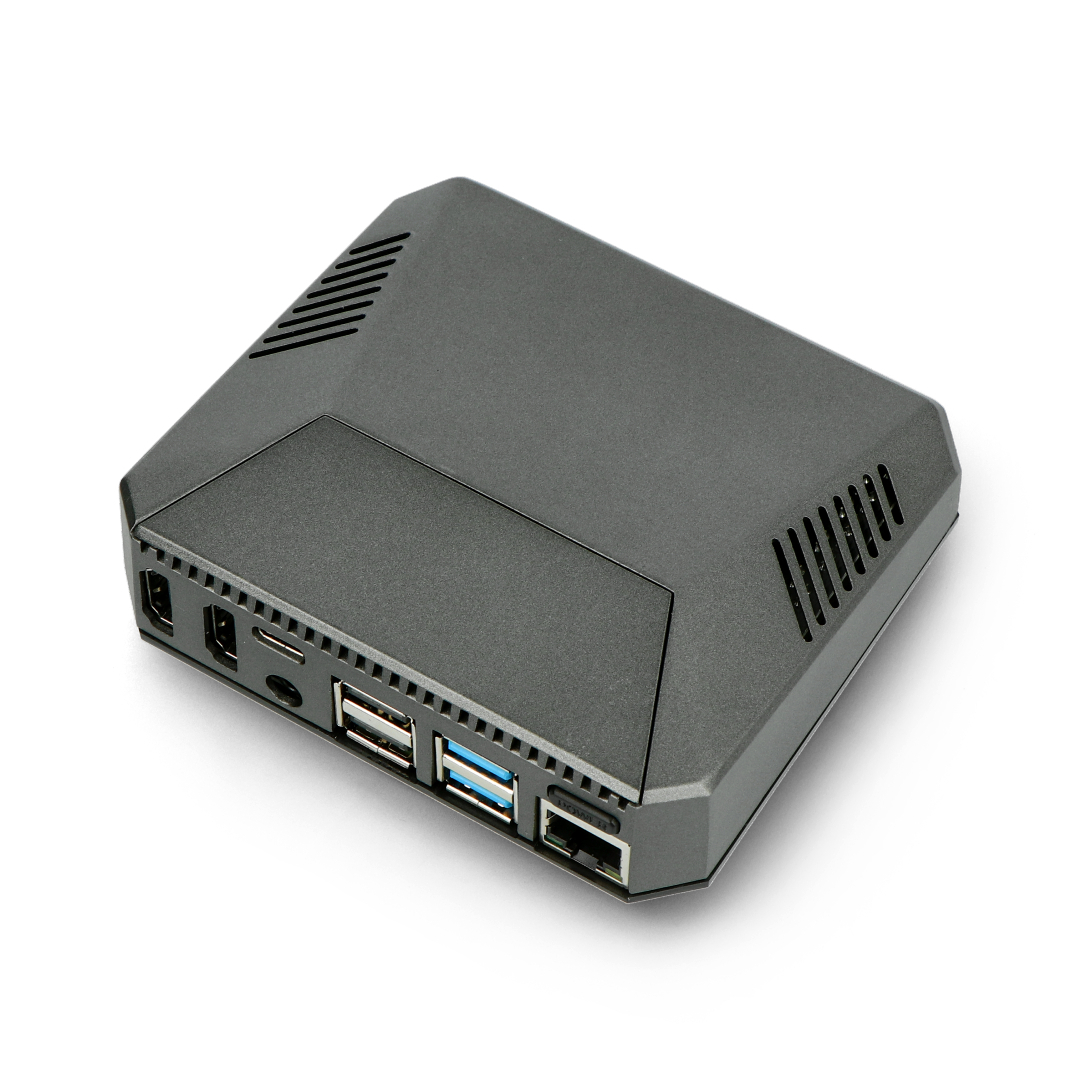

Argon One- An aluminum enclosure that acts as a heat sink and has a built-in fan to actively cool the Raspberry Pi 4B minicomputer. |
| 4 |  |

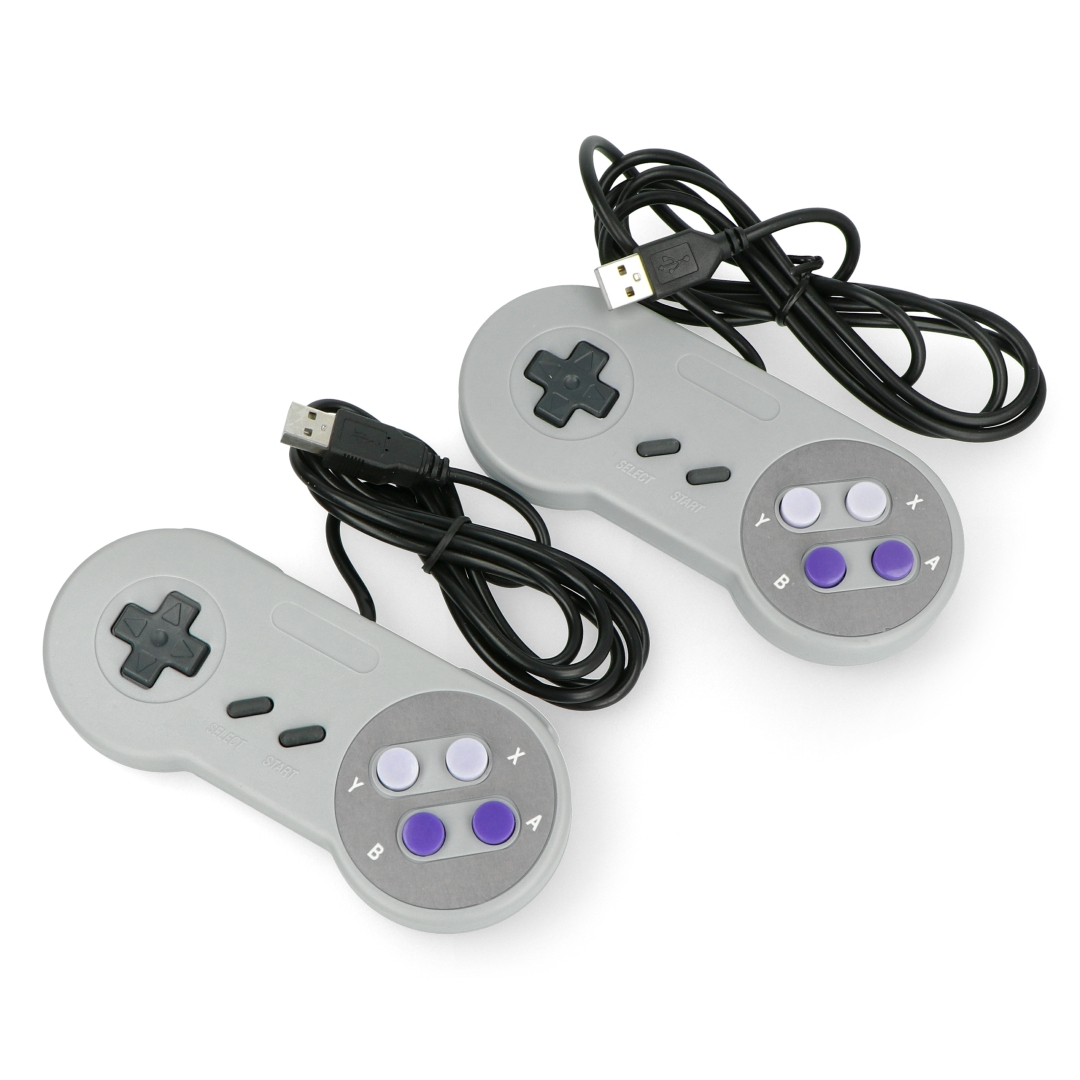

SNES - retro gaming controller-Wired controller for PC and Raspberry Pi minicomputer imitating classic controller from Super Nintendo console. It has 8 function buttons and 4 directional buttons. It communicates with the USB connector. |
| 5 |  |
32 GB microSD memory card with NOOBs system-Memory card with NOOBs installer uploaded to install popular operating systems for Raspberry Pi.Class 10 card with UHS-I interface with 100 MB/sec reading and 10 MB/sec writing speed. |
| 6 |  |

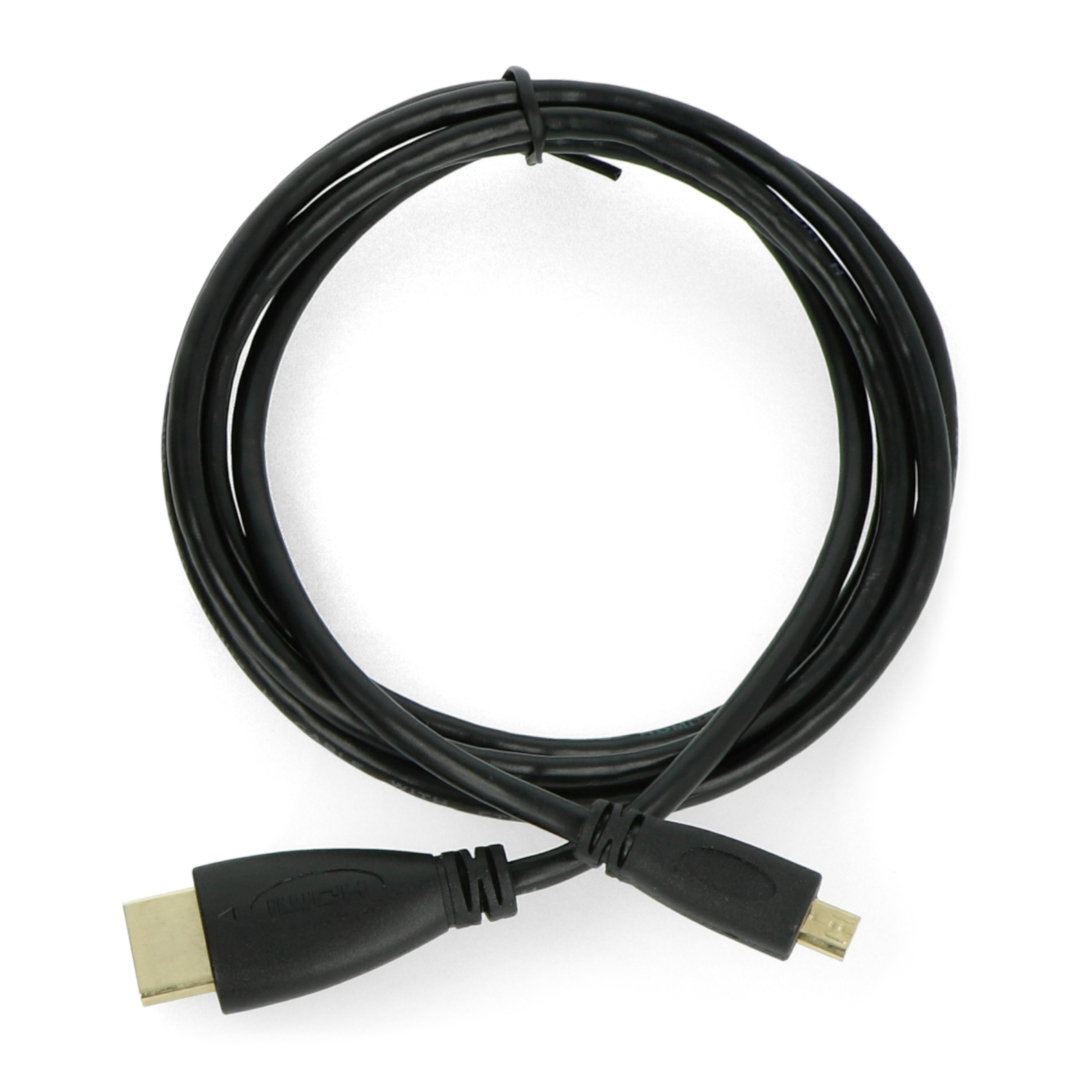

HDMI - HDMI cable-Allows you to connect standard-compliant audio-video devices, includingRasbperry Pi. The cable has gold-plated ends and is 1.5 m long. |
| 7 |  |

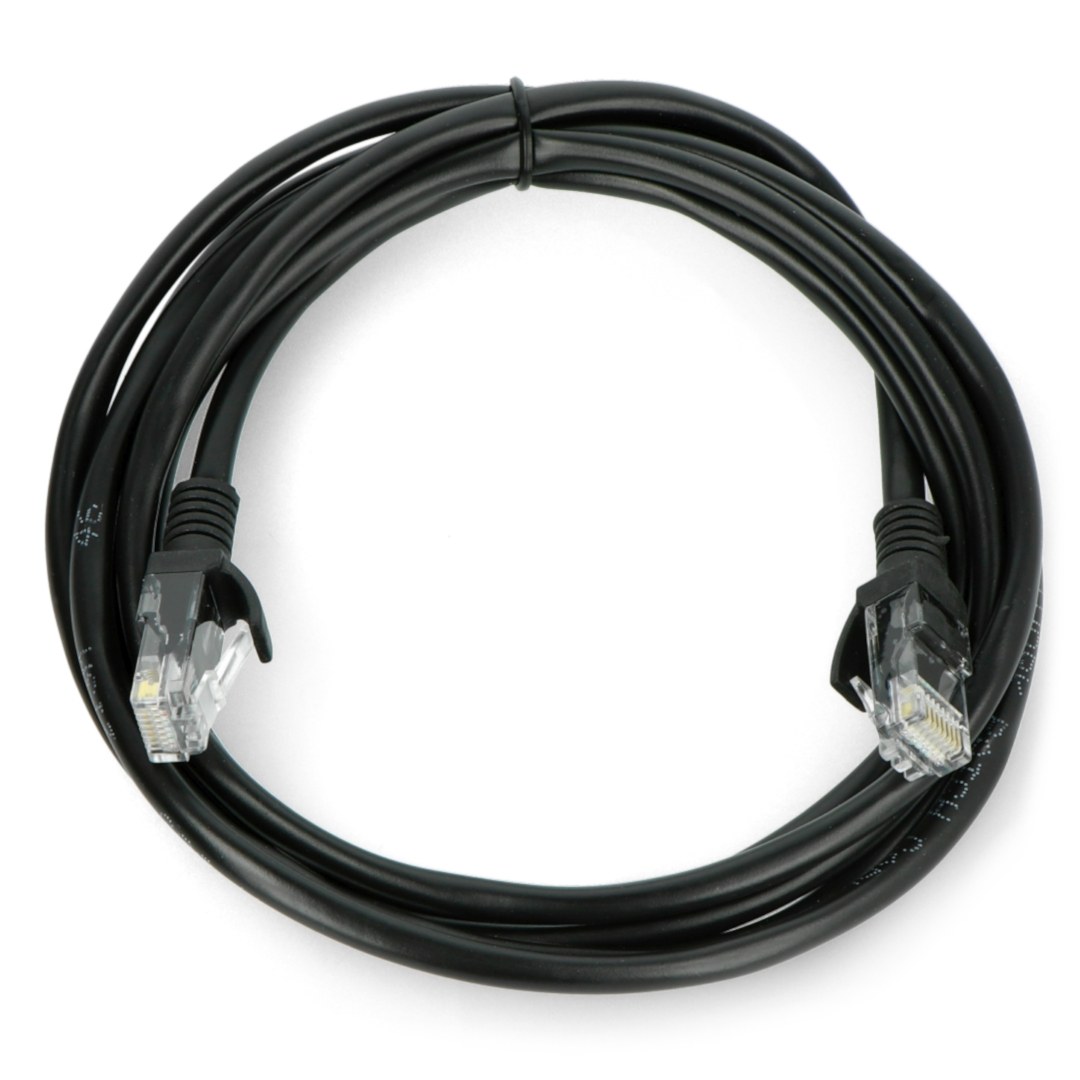

Cat 5e Patchcord cable- This allows you to connect to the Internet via an Ethernet connection. Cable length 2 m, black. |
Operating system
The minicomputer has amicroSD memory cardslot. Acard with the NOOBs program installedis included in the set, which allows you to choose the installation from among the systems at first start-up: Raspbian, OpenELEC, RaspBMC, OSMC Linux. You can also install Windows 10 IoT on your own. In thetutorialcreated by us weshow how to properly install RetroPieon Raspbian. It is also possible to upload the emulatordirectly to the SD card.
Installation of games
Raspberry Pi games can be installed in several ways, via an external memory stick such as aUSB flash drive(not included in the package, to be purchased separately), connecting via theSSH protocol or Samba network server. The RetroPie team has prepared a detailedtutorial on how to install games on a cd.
Raspberry Pi 4B specification
| Basic information | |
|---|---|
 |
|
| Model | Raspberry Pi 4 model B |
| Edition | 6 - 2019 r. |
| Technical specification | |
| Chipset processor | Broadcom BCM2711 64-bit |
| Core | Quad-Core ARM Cortex-A72 |
| Operating systems |
Linux Raspberry Pi OS |
| Clocking | 1.8 GHz |
| Architecture | ARMv8-A |
| Memory RAM |
Two versions
|
| Memory | microSD card |
| GPIO socket |
40-pin connector (2x20 pin) raster 2.54 mm |
| Power supply |
|
| Dimensions of the tiles | 85 x 56 x 17 mm |
| Interfaces | |
| USB interface |
2x USB 2.0 - socket type A 2x USB 3.0 - socket type A |
| Network interface | Ethernet port 100/1000 Mbps |
| WiFi interface |
Dual Band 2.4 GHz and 5 GHz 802.11 b/g/n/ac |
| Bluetooth | Low Energy, BLE 5 |
| Camera | CSI socket |
| Touchscreen display | DSI socket |
| Video |
2 x microHDMI H.265 4K 60 fps H.264 1080p 30 fps OpenGLES 1.1, 2.0, 3.0 |
| Communication | UART, SLEEPING, I2C, GPIO |
