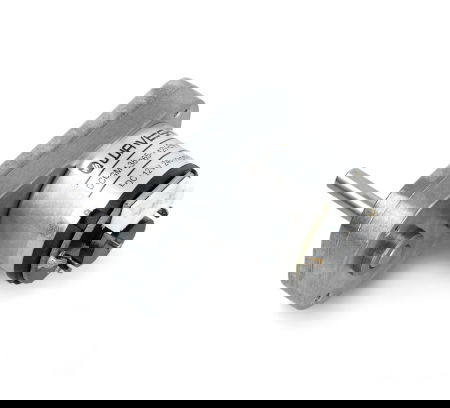

DC 12V 240RPM L-type motor with metal gearbox - magnetic Hall encoder - Waveshare 22346
DC motor – an L- shaped geared motor. Equipped with metal gears and a magnetic Hall encoder . The module does not have a self-braking function, and the motor output shaft can be rotated manually. This motor is primarily used in robots with a short wheelbase. No-load speed reaches up to 240 rpm . The supply voltage is 12 V DC .
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 12V 240RPM L-type DC motor with metal gear - magnetic Hall encoder - Waveshare 22346
DC motor – an L- shaped geared motor. Equipped with metal gears and a magnetic Hall encoder . The module does not have a self-braking function, and the motor output shaft can be rotated manually. This motor is primarily used in robots with a short wheelbase. No-load speed reaches up to 240 rpm . The supply voltage is 12 V DC .
The manufacturer has also prepared a detailed user guide - check it out!

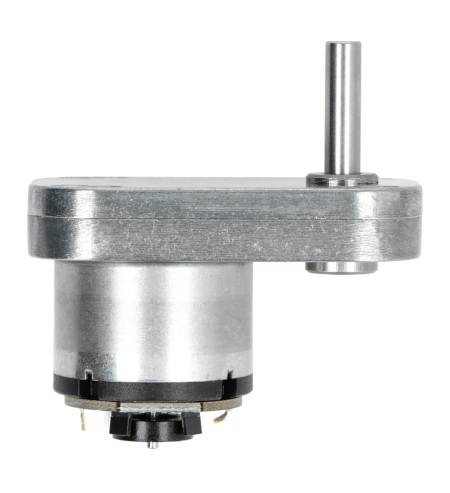

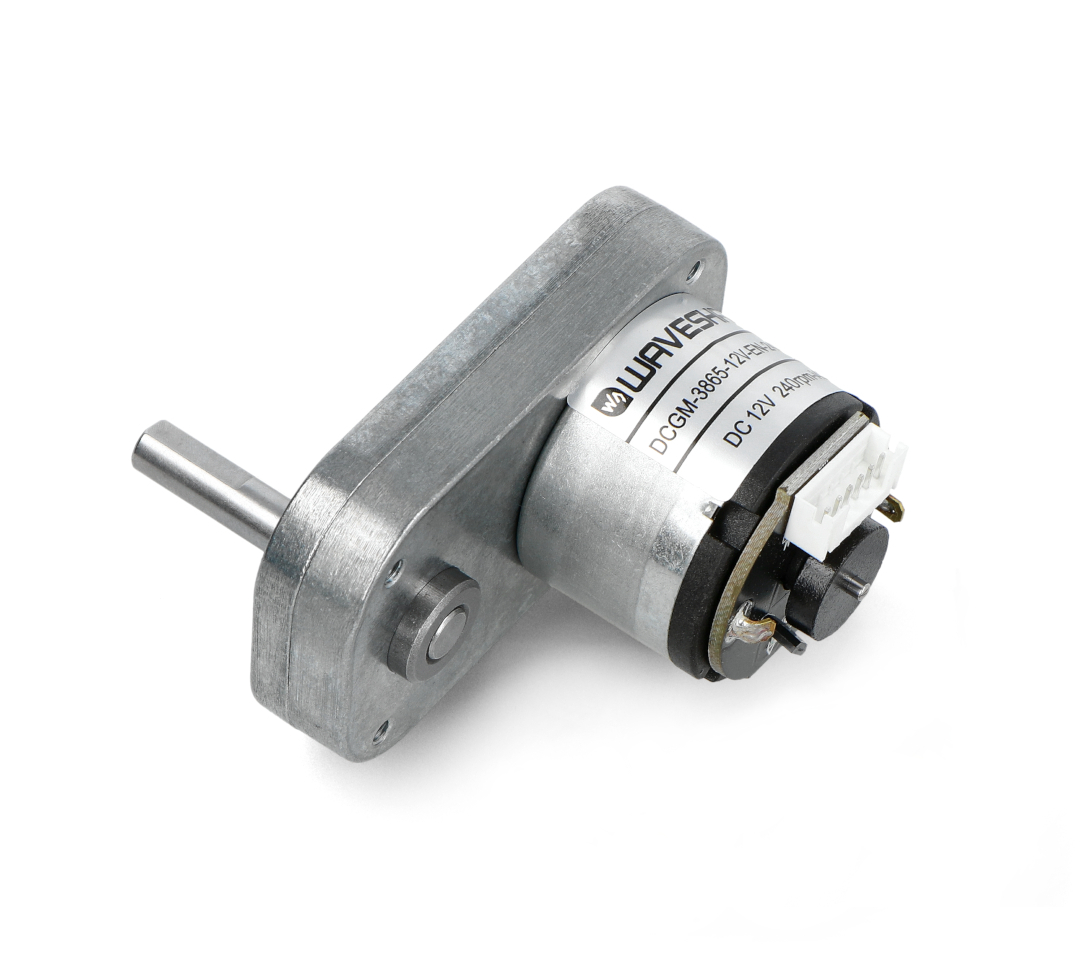

DC 12V 240RPM L-type motor with metal gear - magnetic Hall encoder - Waveshare 22346.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
The engine has a convenient 6-pin connection connector with a 2 mm pitch.
Special features
- L-shaped module, dedicated to robots with a short wheelbase
- 11-wire Hall effect encoder
- No-load speed up to 240 rpm
- The torque when the shaft is stopped can reach 8.5 kg*cm
- The rated load is 4 kg*cm
- Convenient 6-pin connection connector with a 2 mm pitch
Suggested use
- Self-balancing two-wheeled vehicle
- Smart tracking car
- Smart mobile devices
- Multifunctional robot
- Camera rocker arm
Pinout description
The motor has a 6-pin connector, the pins of which indicate:
- M2 engine power supply
- Encoder VCC - 3.3V / 5V
- Encoder C2 phase B
- Encoder C1 phase A
- Encoder GND - system ground
- M1 engine power supply
Contents of the set
- L motor with metal gear - 12V 240RPM - magnetic Hall encoder - 1 piece
Pin numbers.

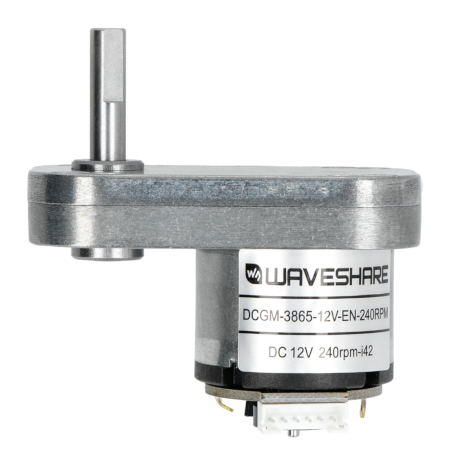

L 12V 240 RPM motor with metal gear.
Engine technical specifications
- Manufacturer's code: DCGM-3865-12V-PL-240RPM
- Operating voltage: 12 V
- Rated power: 5.2 W
- No-load speed: 240 rpm
- Torque with shaft stopped: ≥ 8.5 kg*cm
- Maximum no-load current consumption: 0.15 A
- Maximum current consumption with shaft stopped: ≤ 3.5 A
- Rated load: 4 kg*cm
- Hall encoder resolution: Basic 11 PPR × 42 = 462 PPR
- Rated speed: 125 rpm
- Gear reduction ratio: 1:42
Encoder technical specifications
- Type: AB two-phase incremental magnetic Hall encoder
- Line rate: 11 PPR base impulse x gear ratio
- Supply voltage: 3.3V/5V DC
- Interface: 6-pin connector, 2.54 mm pitch
- Output signal type: AB phase square wave
- Response frequency: 100 kHz
- Basic impulses: 11 PZR
- Number of magnetic poles: 22
Useful links
| Name | Value |
|---|---|
| Voltage to | 12.0 V |
| Voltage from | 12.0 V |
| Motor - current | 1000 mA |
| Motor - gear | 1:42 |
| Rotation speed | 240 obr/min |
| Torque | 4.0 kg*cm |
| Voltage nominal | 12 V |
| Width | 10 cm |
| Height | 15 cm |
| Depth | 4 cm |
| Weight | 0.17 kg |
