Description

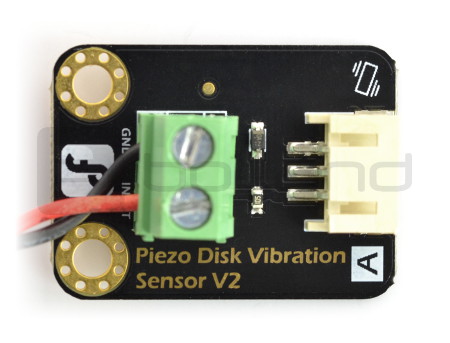

Analog vibration sensor with piezoelectric membrane. It is powered with the voltage from 3.3 V to 5 V, it works with Arduino modules. The kit includes a cable adapted toDFRobot IO Expansion Shield.
|
The product is compatible with Arduino Sample code and detailed information can be found inthe user guide. |
Connection
The sensor works in conjunction with any microcontroller that has analog inputs, includingArduino. On the output of the module, you can read voltage changes taht are proportional to the vibration force.
Board is suitable for connectors of DFRobot IO Expansion Shield for Arduino V7.1.
Specification
- Supply voltage: from 3.3 V to 5 V
- Communications: the analog signal
- Cable for connection withDFRobot IO Expansion Shield
- Board sizes: 22 x 30 mm

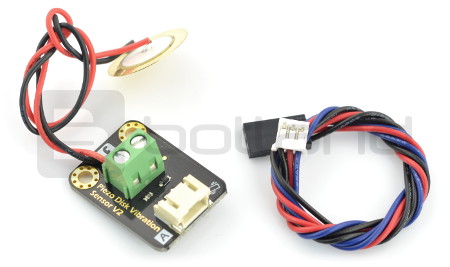

Set includes:
- Analog vibration sensor with piezoelectric membrane
- Connecting cable
