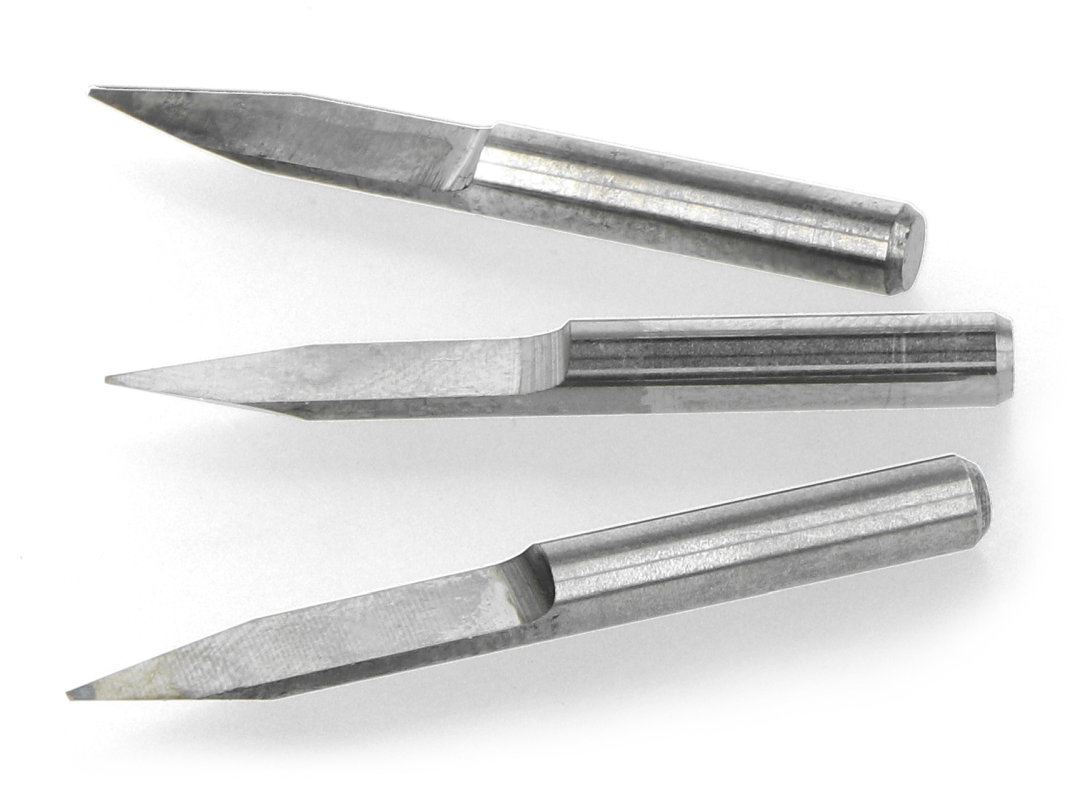

Description: CNC router bit type V 20° - 0.4 mm
V-type 20°milling cutter with a diameter of the blade of0.4 mm. Used as a cutting element inCNC milling machines. The product is made of bend-resistant tungsten steel with increased wear resistance. It is also covered with an additional layer of titanium. The cutters can be used to cut among others fibreboards, PVC, copper, aluminium and wood. They are also used in the electronics industry, e.g. for engraving PCB boards. The package is sold in a plastic box,contains 10 pieces of bladesadditionally protected by a rubber cap.
Each cutter blade is protected by a rubber overlay.
Specifications of the cutter
- Material: titanium-coated tungsten steel
- Shank diameter: 3.175 mm
- Blade diameter: 0.4 mm
- Type: V
- Angle of cutter: 20°
- The cutter can be used to machine among others: copper, aluminium, plastics, resin, wood, carbon fibre
|
Components sold in packages of 10 pieces. |
