Product description: Set of 3 CNC milling cutters + ER11-A 4 mm collet - for Snapmaker Artisan / 2.0
The Snapmaker Milling Bit Set is the perfect tool for precision machining of metals such as H62 brass and 6061 aluminum . Made of hardened YK25UF - tungsten carbide alloy , it guarantees excellent abrasion resistance and long life. The set includes a V Bit (60°), flat and triple flute (4 mm) and a double-blade ball end mill (2 mm), which allow for both rough milling and precise engraving. The ER11-A collet (4 mm) provides stable clamping of the cutters, eliminating vibrations and improving the quality of the machining. The cutters are compatible with Snapmaker Artisan and Snapmaker 2.0 (using the reinforcement kit ). It is recommended to use the appropriate feed rates and depths of cut to obtain the best results and avoid damage to the tools.
Set of 3 CNC cutters + ER11-A 4 mm collet - for Snapmaker Artisan / 2.0.
The set includes three types of cutters for different applications.
Characteristics of cutters
Conical V Bit Cutter (60°)
- Perfect for engraving and precise detailing in metals
- It has a non-stick coating that prevents chips from sticking
- Diameter of the flat part of the blade: 0.2 mm
Triple-blade flat cutter
- Provides fast and efficient roughing of aluminum and brass
- The three-flute geometry ensures efficient chip evacuation and uniform cutting.
- Cutting diameter: 4 mm
Double-blade ball nose cutter
- Perfect for 3D processing and fluid shapes
- The two-bit design reduces tool strain while ensuring precision
- Cutting diameter: 2 mm
Comparison table of processing parameters
| Device | Processing mode | Material | Processing time | Feed speed | Cutting depth |
|---|---|---|---|---|---|
| Snapmaker 2.0 A350 + Bracing Kit | Roughing: Flat milling cutter (4 mm) Engraving: Conical cutter (4 mm) |
Brass H62 | 4.5 hours | Roughing: 100 mm/min Engraving: 200 mm/min |
0.1mm |
| Snapmaker 2.0 A350 + Bracing Kit | Roughing: Flat milling cutter (4 mm) Engraving: Conical cutter (4 mm) |
Aluminum 6061 | 5 hours | Roughing: 100 mm/min Engraving: 200 mm/min |
0.1mm |
| Snapmaker 2.0 A350 + Bracing Kit | Roughing: Flat milling cutter (4 mm) Engraving: Double-blade ball end mill (2 mm) |
Aluminum 6061 | 4.2 hours | Roughing: 100 mm/min Engraving: 200 mm/min |
0.1mm |
Technical specifications of milling cutters
- Cutter material: hardened tungsten carbide YK25UF
- Shank diameter: 4 mm
- Compatibility: Snapmaker Artisan, Snapmaker 2.0 (with Booster Kit)
- Application: engraving and milling metals (brass, aluminum)
Contents of the set
- 1x Conical V Bit (60°, 0.2 mm)
- 1x Three-flute flat cutter (4 mm)
- 1x Double-flute ball milling cutter (2 mm)
- 1x ER11-A collet (4mm)

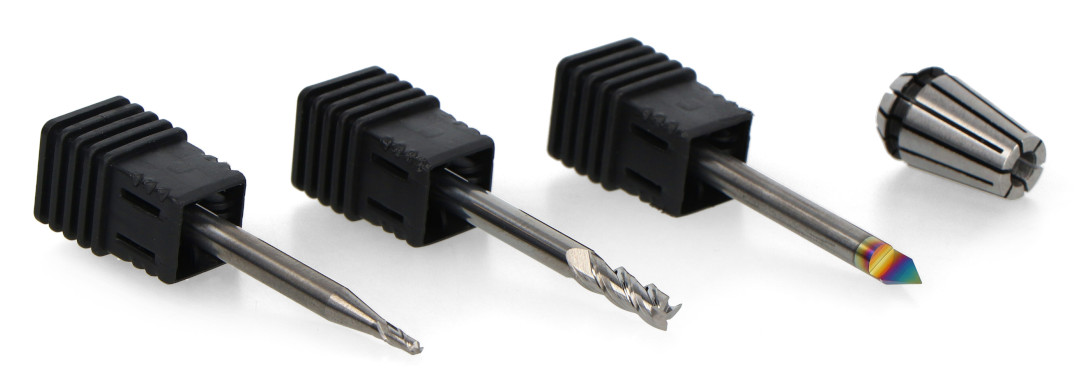

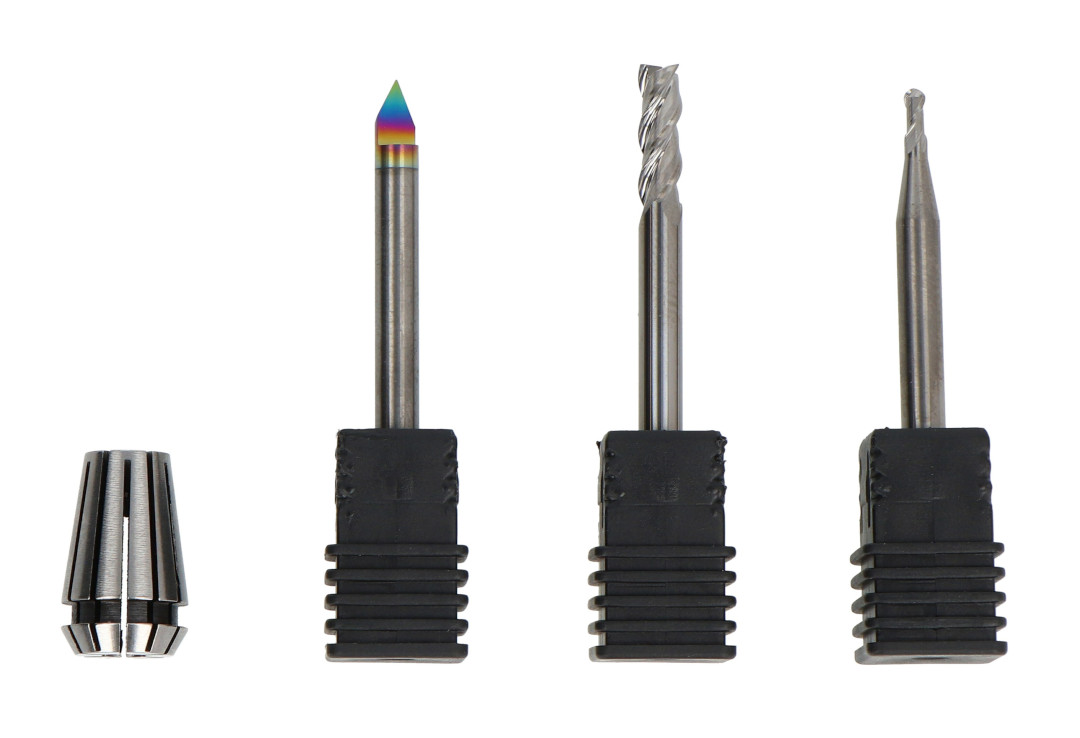

Items included in the set.
