Description: Waterproof probe with temperature sensor DS18B20 - 1 m
High qualityprobewithDS18B20temperature sensor, enclosed in a sealed and waterproof stainless steel housing. The probe is poweredfrom 3 V to 5.5 V. It operates in temperaturesfrom -55°C to 125°C.It is used together with measuring devices in high humidity conditions or in polluted environment. The purpose of the probes is to facilitate measurements in places that are difficult to reach or potentially dangerous for the user. The sensor housing has dimensions of 6 x 50 mm and the power supply cable is1 mlong.
| A4.7kΩ resistorconnectedbetween the power supply and the signal cable is required for correct temperature reading. |

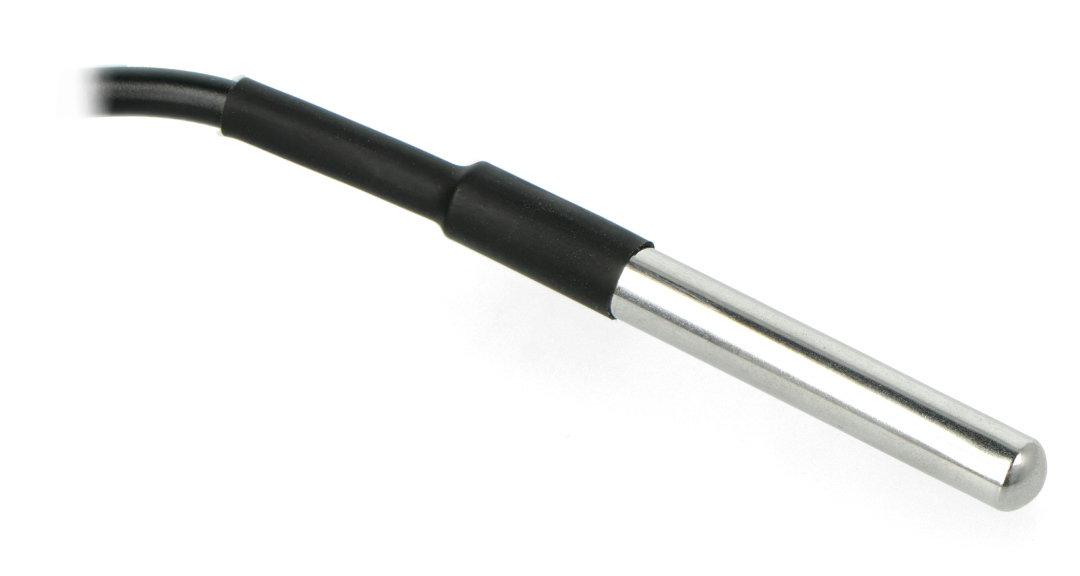

The sensor is hidden in a waterproof stainless steel housing.
|
Product compatible withArduinoandRaspberry Pi The user guide forArduinois available atthis address. The sensor can also be operated via RaspberryPiby connecting as described in thisarticle. |
Waterproof probe outputs with DS18B20 sensor - 1 m
The sensor communicates via a single-wire 1-Wire interface and operates with voltages from 3 V to 5.5 V.
| NCOPY10 | Description | Cable |
|---|---|---|
|
1 |
Sensor power supply. 3 to 5.5 volts. | red |
|
2 |
The weight of the system. | black |
|
3 |
Signal wire. | Yellow |

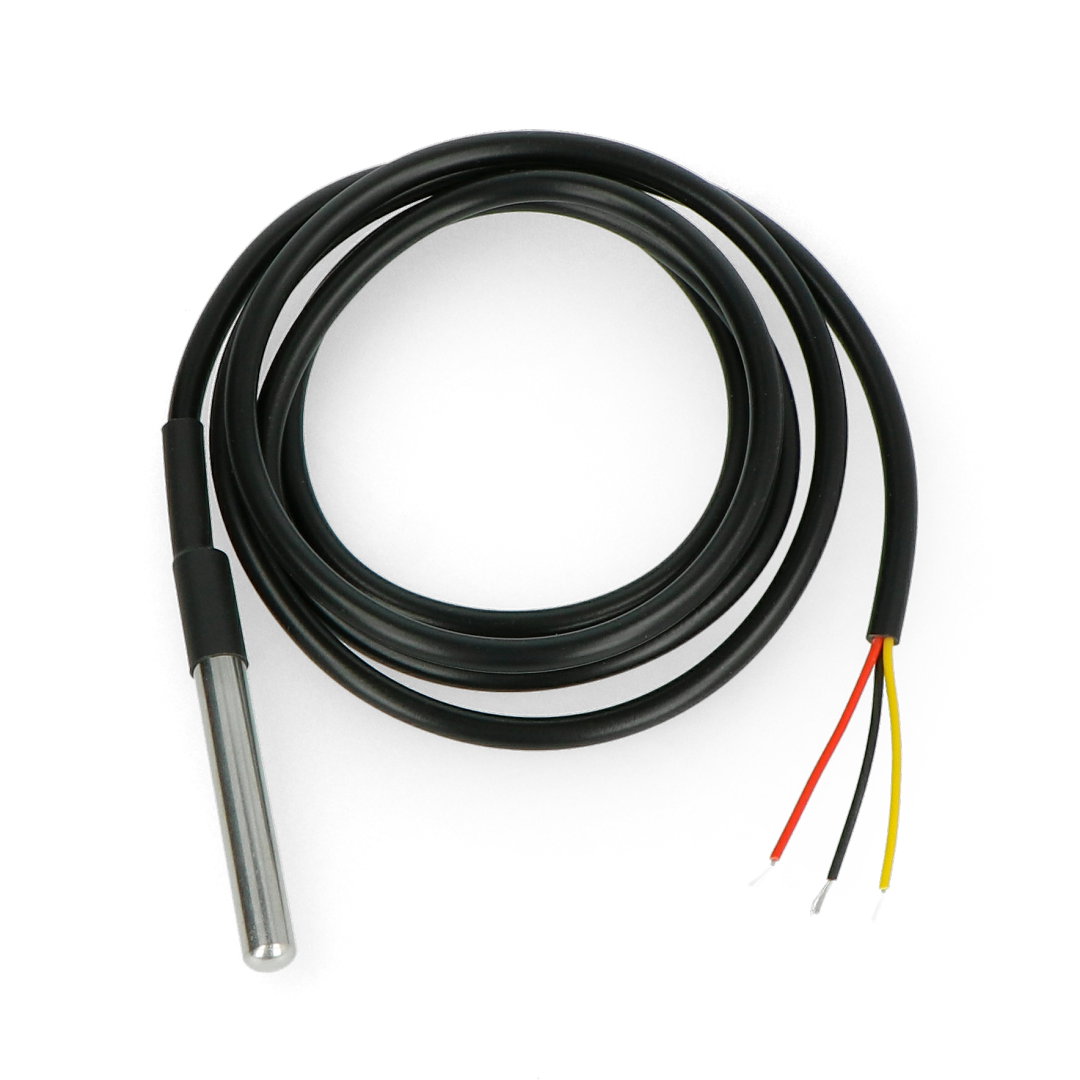

Waterproof probe with temperature sensor DS18B20 - Okystar - 1 m.
Probe specification
- Manufacturer: Okystar
- Probe with temperature sensor DS18B20
- Waterproof probe
- Stainless steel housing
- Supply voltage: 3 V to 5.5 V
- Operating temperature: -55°C to 125°C
- Accuracy from -10°C to + 85°C: ± 0,5°C
- Interface: 1-Wire
- Dimensions of the housing: 6 x 50 mm
- Cable length: 1 m
