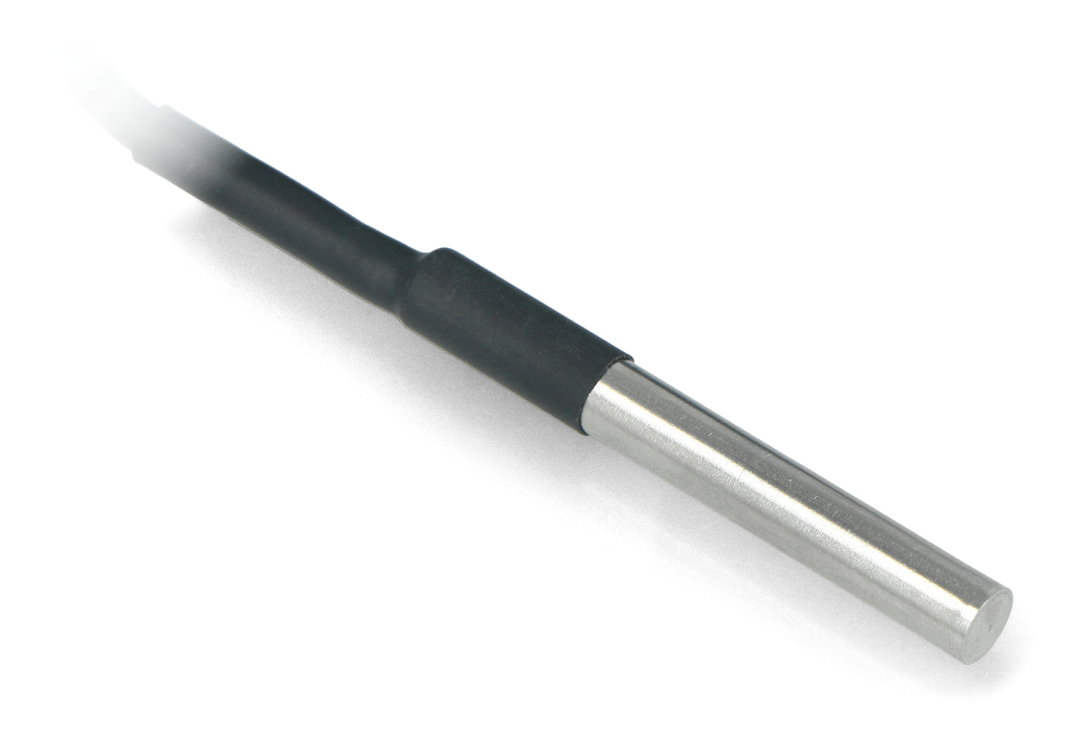

Product description: Waterproof probe with DS18B20 temperature sensor SENT0002 - 2 m
WaterproofprobewithDS18B20digital sensor.Designed for temperature measurement in the range from -55°C to +125°C. Measuring accuracy in the temperature range from -10°C to +85°C is ±0.5°C. The probe's dimensions are 6 x 50 mm and the cable length is2 m. The probe is terminated with three wires with the insulation removed.
Main features of the probe
- The probe has a DS18B20 temperature sensor
- The probe is waterproof
- Stainless steel head with a diameter of 6 mm and a length of 50 mm
- DC power supply from 3.0 V to 5.5 V
- Wide temperature measurement range from -55°C to +125°C
Product compatible with Arduino andRaspberry Pi
User guide forArduinois available atthis address.
The sensor can also be operated viaRaspberry Piby connecting as described inthis article.
Waterproof probe with DS18B20 SENT0002 temperature sensor - 2m.
The waterproof probe is powered from 3.0V to 5.5V.
Leads are insulated wires:
- Power VCC - red
- GND - black or green
- Data 1-wire - white or yellow
Probe specifications
- Supply voltage: from 3.0 V to 5.5 V
- Measuring range: from -55°C to 125°C
- Accuracy: +/- 0.5°C (from -10°C to 85°C)
- Resolution: 9 to 12 bits
- Probe dimensions:
- Diameter: 6 mm
- Length: 50 mm
- Cable length: 2 m
