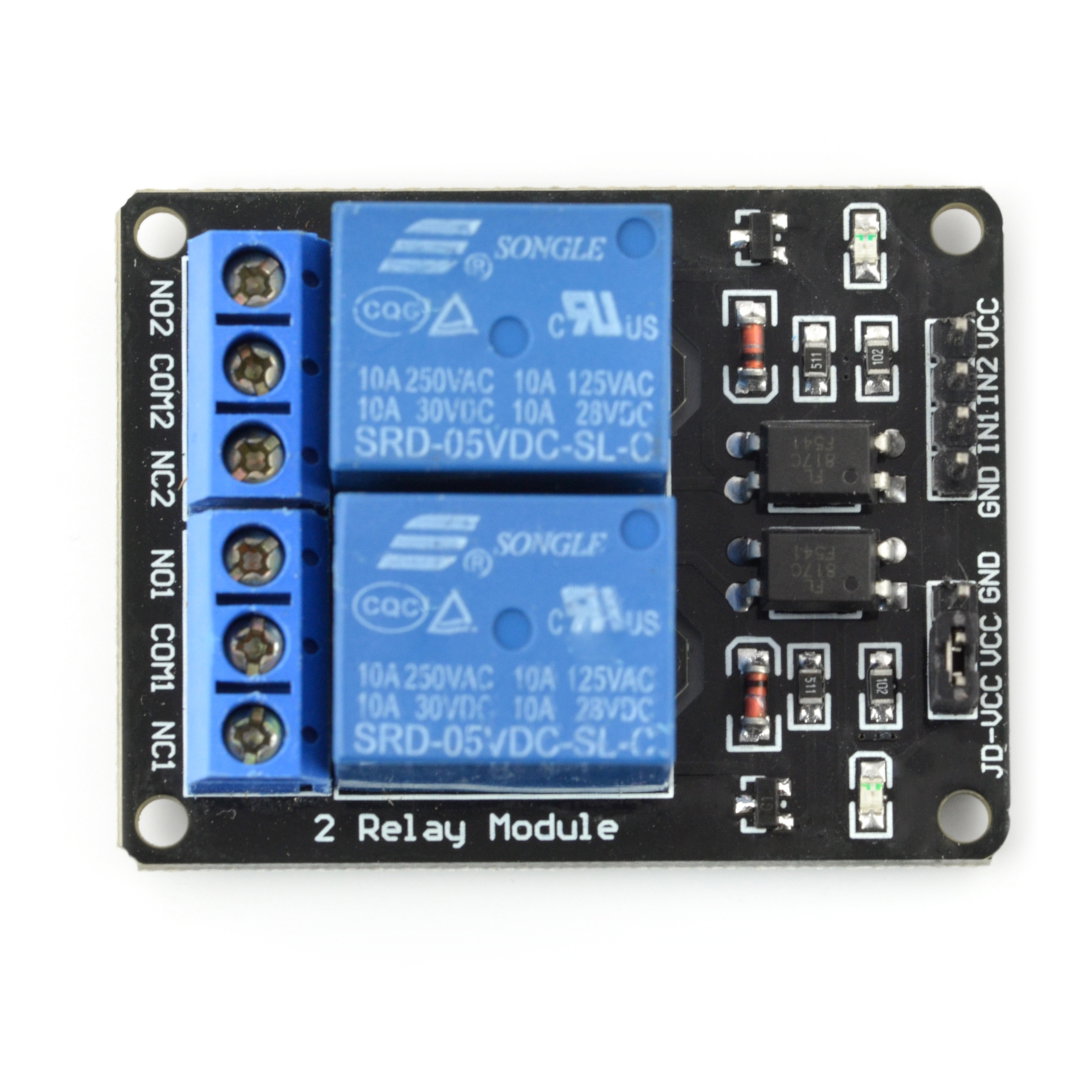

Relay 2 channel module with optoisolation - 10A/250VAC contacts - 5V coil

Index: MOD-02170 EAN: 5904422359126

The module has two relays SRD-05 with a coil powered with a voltage of 5 V with optical isolation of input and mounting holes. The system allows you to control the actuators with microcontroller ports or with any implementation set.

Relay 2 channel module with optoisolation - 10A/250VAC contacts - 5V coil
€1.93
€1.57 tax excl.
In stock, shipping 24 hours!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: OEM

Specification

  • The supply voltage VCC: 5 V
  • Enabled with low state
  • Relay: SRD-05VDC-SL-C (documentation)
    • Coil voltage: 5 V
    • The maximum voltage of contacts: 250 V AC, 110 VDC*
    • Maximum current: 10 A
  • Optoisolation EL817 (documentation)
  • Tile sizes: 50 x 38 mm
  • Diameter of mounting holes: 3 mm



* Maximum contact voltage depends on the type of load - details inthe documentationtab. 7. Contact Rating.

Description

The module allows to control the actuators that consumes the current up to 10 A using the microcontroller's ports or anyimplementation set (includingArduino,Rasbperry PiandSTM32Discovery). Optoisolation seperates the control signal from the part associated with the power of relay, thereby providing work safety of the management system.



Connection

For proper operation, it is sufficient to connect the power to the relay coil and the digital control signal. Leads are the standard strips goldpin with pitch 2.54 mm which enables connection via connecting cables.

The relay has the following leads:

  • VCC- power of the optoisolator
  • JD-VCC - the power of the relay coil, by default, in conjunction with the VCC through a jumper
  • IN1, IN2- control inputs of relays, indictaed by the low state
  • GND- mass of the system, all the GND leads are connected together
  • connectors KF (ARK)- the relay contacts are connected in accordance with the pattern on the board of the module.



Examples of application

  • Driver of lighting
  • The driver of actuators
  • Switch for electric devices, including motors



Channels 2
Interface Digital I / O
Test 3
