Description

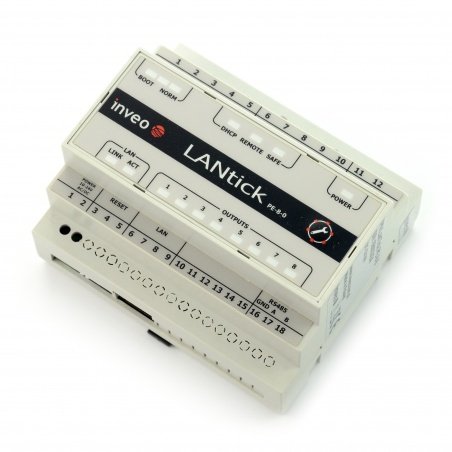

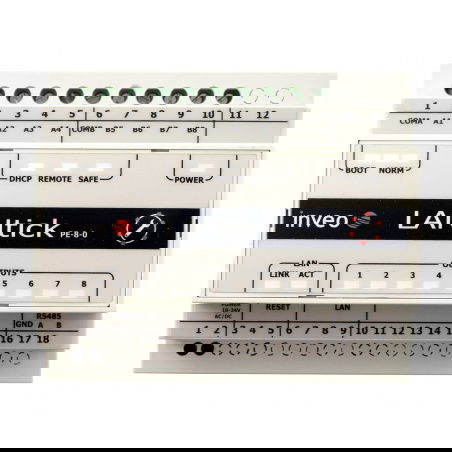

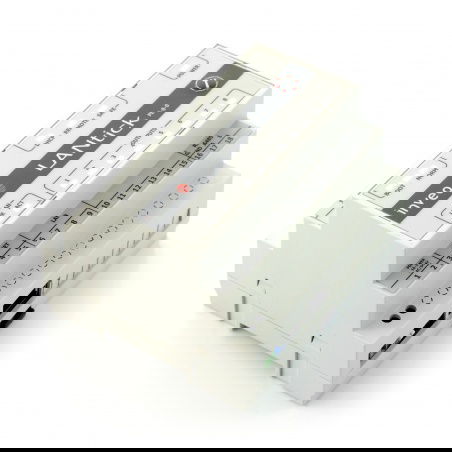

Inveo modules allow remote control of devices via Internet. It has 8 relay outputs of 250V and a built-in WEB server. It is adapted for mounting on a DIN rail.
Controlling and setting up the device can be accomplished in several ways:
- via the integrated WEB server with visualization
- using commands line
- a special software for Windows
- using the MODBUS TCP Protocol
- using the SNMP Protocol
- HTTP
- KNX-IP
- using Android device
| The manufacturer provides a detailedmanualof the LanTick module. |
Specification
- Supply voltage: 12 to 24V DC
- Number of outputs: 8
- Output type: relay
- Maximum voltage output: 250V AC / 30V DC
- Maximum load: 4A per channel
- Relay contacts: NO, COM (common for relays 1 to 4 and 5 to 8)
- Mode of operation:
- monostable
- bistable
- single release
- Switching time: 100 MS
- Interface: RJ45 (10Base-T)
- Supported protocols:
- HTTP
- TCP
- SNMP
- MODBUS TCP
- Operating temperature: 5°C to 50°C
- Mounting on DIN rail
- Dimensions: 90 x 65 x103mm
Included
- LanTick Pro PE-4-4
- Patchcord 30 cm
