BleBox windSensor Pro - WiFi wind sensor

Index: BOX-22834 EAN: 5900168580565
The BleBox windSensor Pro sensor allows you to measure the instantaneous, maximum and average wind speed from 0.5 m/s to 30 m/s (from 1.8 km/h to 108 km/h). Measurement data are available in the dedicated wBox application, which can also be conveniently exported. BleBox windSensor Pro can be connected to your home WiFi network to read data from anywhere in the world. In the application, you can also create automation that will automatically open or close roller blinds, awnings or blinds in strong winds. The sensor can be integrated into the Home Assistant home automation system.
BleBox windSensor Pro - WiFi wind sensor
€146.90
€119.43 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: BleBox

Product description: BleBox windSensor Pro - WiFi wind speed sensor

The BleBox windSensor Pro sensor allows you to measure the instantaneous, maximum and average wind speed from 0.5 m/s to 30 m/s (from 1.8 km/h to 108 km/h). Measurement data are available in the dedicated wBox application, which can also be conveniently exported. BleBox windSensor Pro can be connected to your home WiFi network to read data from anywhere in the world. In the application, you can also create automation that will automatically open or close roller blinds, awnings or blinds in strong winds. The wBox application allows you to set the unit in m/s, km/h and in knots . The sensor can be integrated into the Home Assistant home automation system.

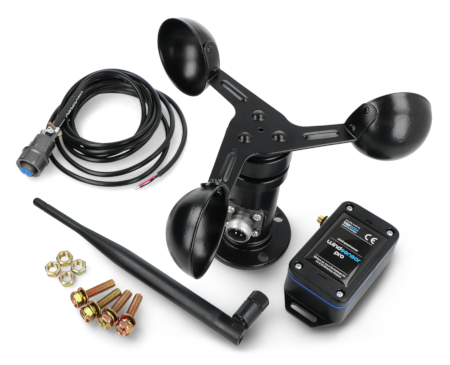

Kit contents Contents of the BleBox windSensor Pro kit.
charts and historical data


Charts and data available in the wBox app.

Charts and historical data

In the dedicated wBox application, it is possible to view graphs and historical data from the windSensor Pro sensor, e.g. are data such as:

  • average wind speed
  • maximum wind speed (in gusts)

BleBox windSensor Pro will also work as a measuring station before setting up a wind farm. It will make it possible to check whether there are winds above 5 m/s (and for how many days a year) so that the wind farm has a raison d'être. For more advanced users, it is possible to export measurement data to a file.

Notifications, alerts and automations

The BleBox windSensor Pro wind sensor allows you to set notifications / warnings to mobile devices that will be sent in the event of e.g. strong winds:

  • If the average wind speed is greater than 40 km/h, send a notification
  • If there is a wind (gust) stronger than 70 km/h, send a notification

windSensor Pro allows you to wirelessly send control commands to up to 30 other BleBox devices. In combination with the BleBox shutterBox controller, it will be possible to automatically control blinds, roller blinds, windows or awnings at home. In this way, you will protect the slats of the blinds against damage, and the strong wind will not blow up and tear out the blinds or awnings.

Smartphone notifications
Smartphone notifications.
BleBox weather station
Create your own weather station with BleBox!

Create your own weather station!

The windSensor Pro sensor can be one of the elements of your own home WiFi weather station in combination with other BleBox sensors, including:

Weatherproof housing and external antenna

The windSensor Pro sensor has been enclosed in a sealed housing with increased resistance to weather conditions, it perfectly copes with rain or snow. In addition, it is equipped with an external antenna that increases the WiFi range. The WiFi antenna socket also allows you to replace the antenna with a directional antenna, which allows you to install the sensor in remote places from the router / AP, where there is a weak or insufficient WiFi signal.

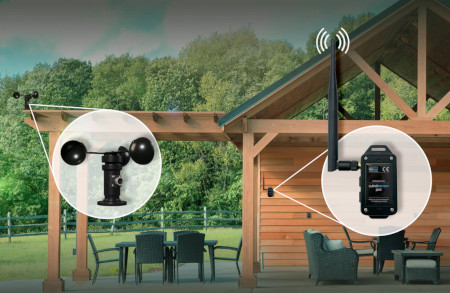

Weather resistant housing
Sensor in IP54 housing with external WiFi antenna.

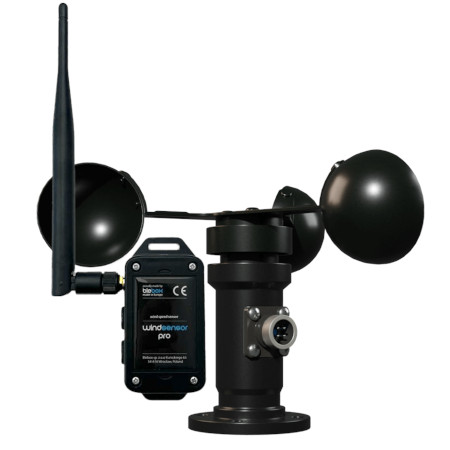

Wind sensor with BleBox controller WindSensor wind sensor with BleBox controller.

Specification of the BleBox windSensor Pro sensor

  • Supply voltage: 12 V to 24 V DC
  • Number of inputs: 1
  • Type of inputs: intended for connecting a dedicated wind sensor
  • Controller signaling: blinking blue diagnostic diode (can be switched off in the application)
  • Protections: reversed polarity, ESD
  • Antenna output: RP-SMA
  • Antenna: omnidirectional, gain 5 dB - included in the set
  • Communication standard: µWiFi, compatible with WiFi 802.11g
  • Transmission type: two-way, encrypted
  • Encryption: WPA2-PSK and Authenticated Encryption (AEAD)
  • Operating mode: direct WiFi connection (as an Access Point), WiFi connection (via a standard router), connection with access from anywhere in the world (only Internet access required)
  • Transmission frequency: 2.4 GHz
  • API: open
  • Compatible devices and systems: Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices supporting HTML5
  • Housing: plastic, flooded with halogen-free polyurethane composition, self-extinguishing for thermal class B (130°C)
  • IP Rating: IP54
  • Assembly method:
    • Controller: Two 18mm (W) x 3.5mm (H) oval mounting holes or adhesive (tape)
    • Sensor: 4 M5/M6 screws, holes described on a circle Φ50
  • Operating temperature: -20°C to 50°C
  • Dimensions:
    • Driver: 50 x 92 x 28 mm (without antenna), 85 x 230 x 28 mm (with vertical antenna), antenna length 197 mm
    • Sensor: Φ194 x 124mm (outer diameter, overall height)

Kit contents

  • BleBox windSensor Pro sensor
  • BleBox windSensor Pro sensor controller
  • Omnidirectional WiFi antenna

Smart Home Wind sensor
Package width 23 cm
Package height 20.7 cm
Package depth 15.5 cm
Package weight 0.619 kg

jacek

10/04/23

Question: what is the maximum range of wifi? because I have a router at home, but the device will stand outside. then up to what distance there should be no problem with the operation of the device?
Answer: The antenna should "catch" the range at a distance of several / several meters, but note that this depends on the terrain and type of construction. Unfortunately, the manufacturer does not specify the range of coverage.
The antenna can be replaced from omnidirectional to directional, for improved range.
Oskar

08/22/23

Question: Hi. Will this device record data when it is connected to wifi but the app is not running? I need to measure wind speeds before installing a wind turbine. I would like to read them once in a while and export them to excel.
Answer: The sensor will record the data. It does not have to be active.
