Product description: BleBox controlPanelM - smart screen/control panel 5'' WiFi - black
The BleBox controlPanelM is a modern WiFi control panel designed for convenient operation of a smart home, office, conference room, or wellness & spa area. The device is equipped with a 5-inch color IPS screen with a resolution of 800 x 480 pixels , ensuring high image readability at wide angles. The capacitive multitouch touchscreen enables smooth and intuitive operation, while dedicated built-in software ensures fast interface operation. From a single screen, users can control up to 10 BleBox smart-home and BleBox inside devices, selecting functions according to needs and individual preferences. The black color version, compact design, and the option of mounting using dedicated accessories such as frames make the BleBox controlPanelM a perfect fit for interiors of various styles.

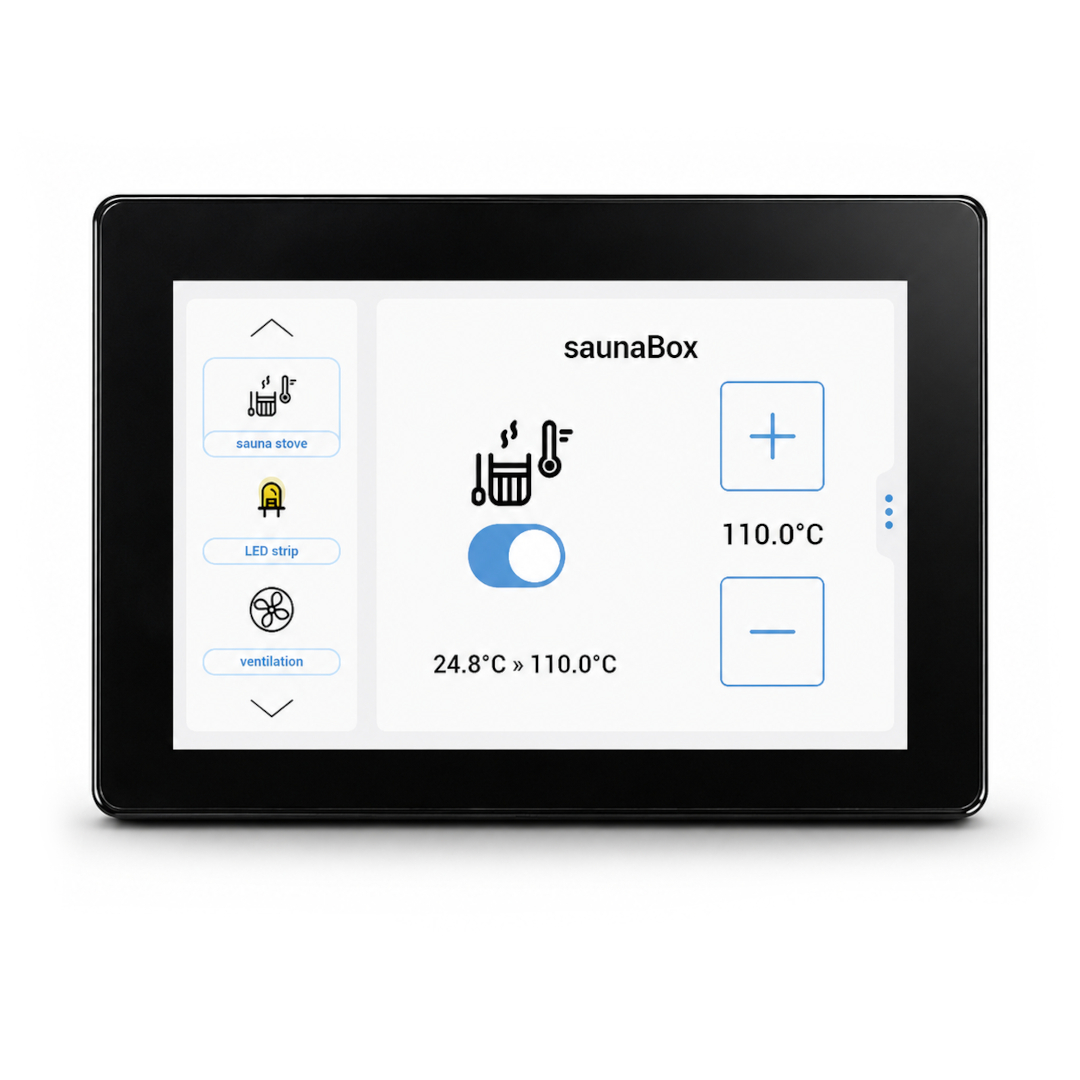

BleBox controlPanelM - smart screen/control panel 5'' WiFi - black.

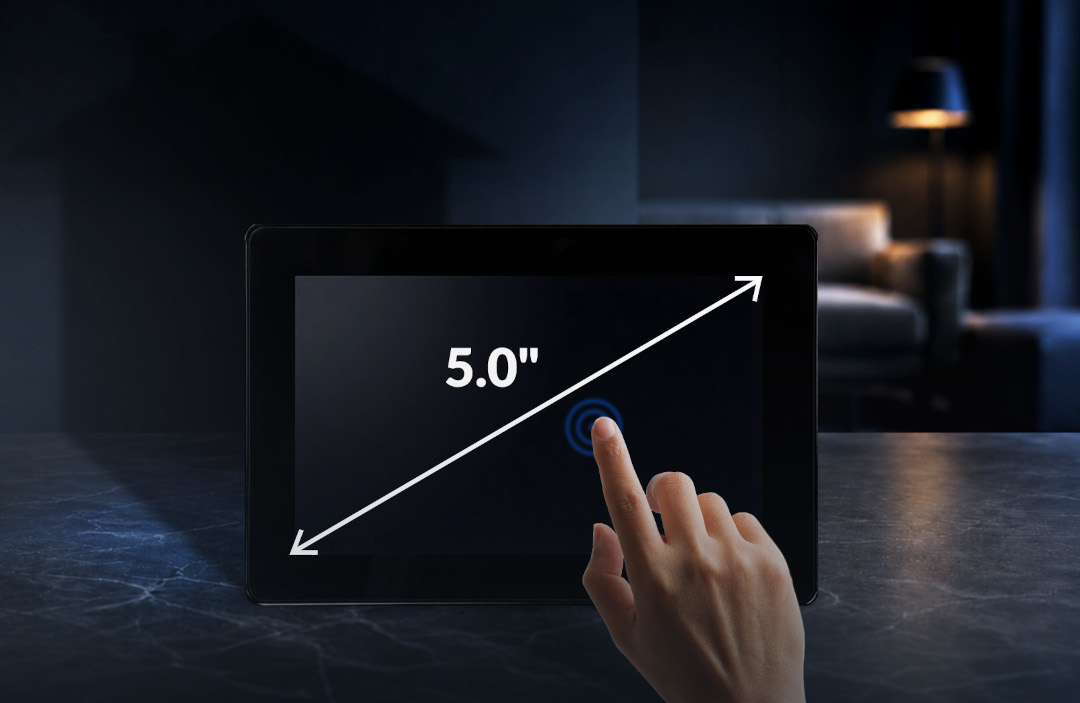

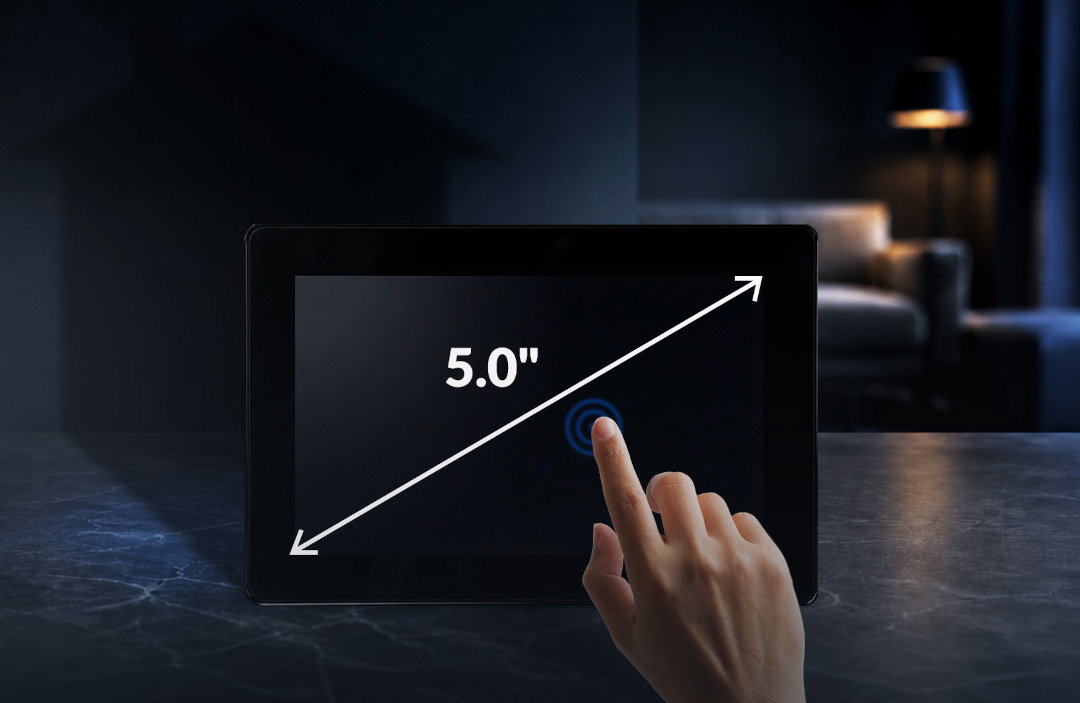

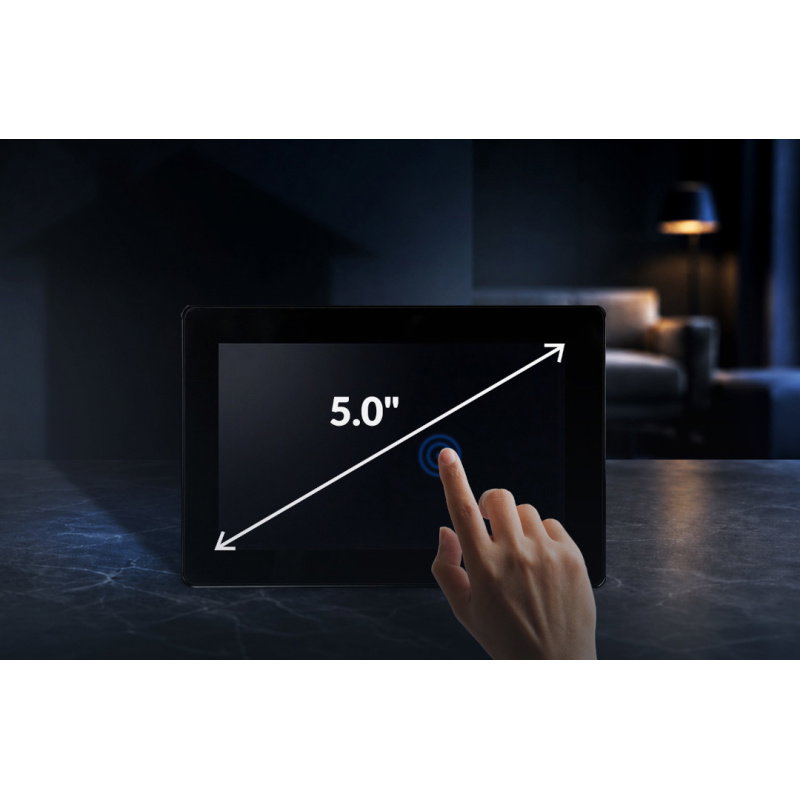

The IPS technology used in the 5-inch BleBox panel ensures a wide viewing angle and therefore excellent image readability from any perspective.
Main features of BleBox controlPanelM
- 5" screen: IPS color display with a resolution of 800 x 480 pixels
- WiFi control: local communication with BleBox devices on the same network
- Multiple device support: ability to control up to 10 BleBox smart-home and BleBox inside controllers
- Multitouch: capacitive touch panel for precise operation
- Touch feedback: confirm interaction via vibration and built-in buzzer
- PIN lock: securing access to the interface against unauthorized use
- Flush mounting: aesthetically pleasing placement of the panel in the wall
- Mounting accessories: surface mounting possible with framePanelM frame
- Black color: elegant, universal finish that suits various types of interiors
Smart panel as a WiFi control center
The BleBox controlPanelM is unique in that it can control up to 10 BleBox smart-home and BleBox inside devices from a single 5-inch IPS touchscreen with a resolution of 800 x 480 pixels. Users choose which controllers appear on the screen, and customizable icons make it easy to quickly find the right function without using a smartphone, remote control, or traditional switches. The panel operates over a local Wi-Fi network, without the need for the manufacturer's cloud, making control faster, more reliable, and possible even when internet access is limited. The device uses dedicated software, supports open APIs, μWiFi communication compatible with WiFi 802.11 b/g/n, bidirectional encrypted transmission, and WPA2-PSK and AEAD security. Power supply from 12 V to 24 V DC, low power consumption of less than 4 W, a PIN lock, haptic and audible alarms, and a tempered glass front make the panel ideal for both residential and commercial installations.

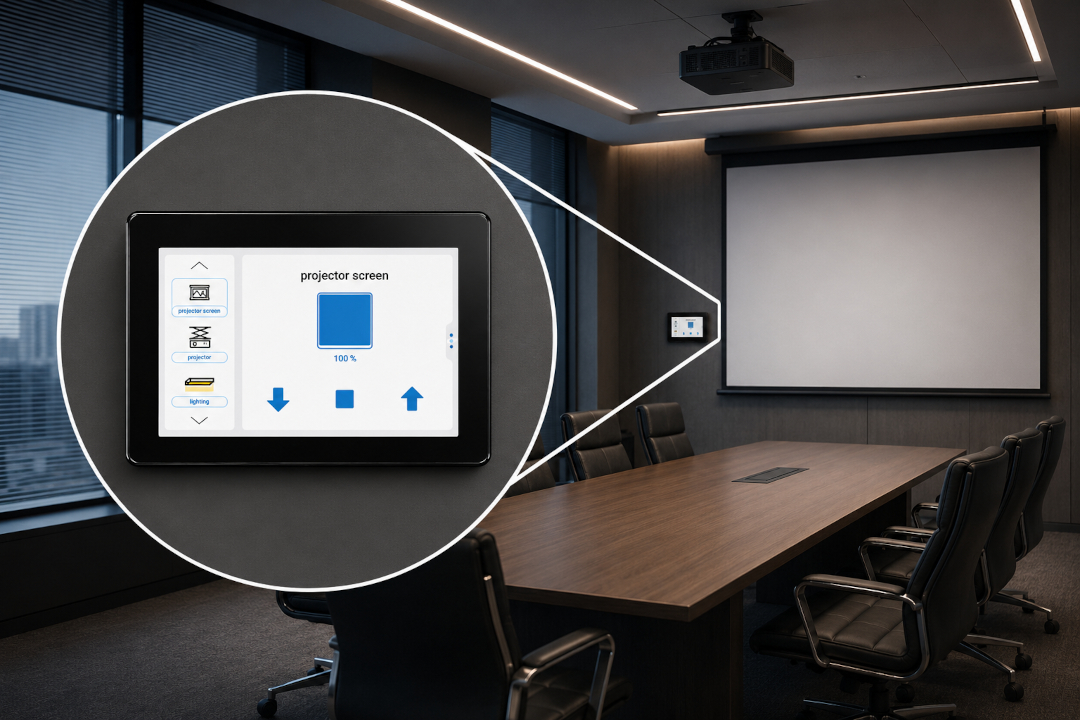

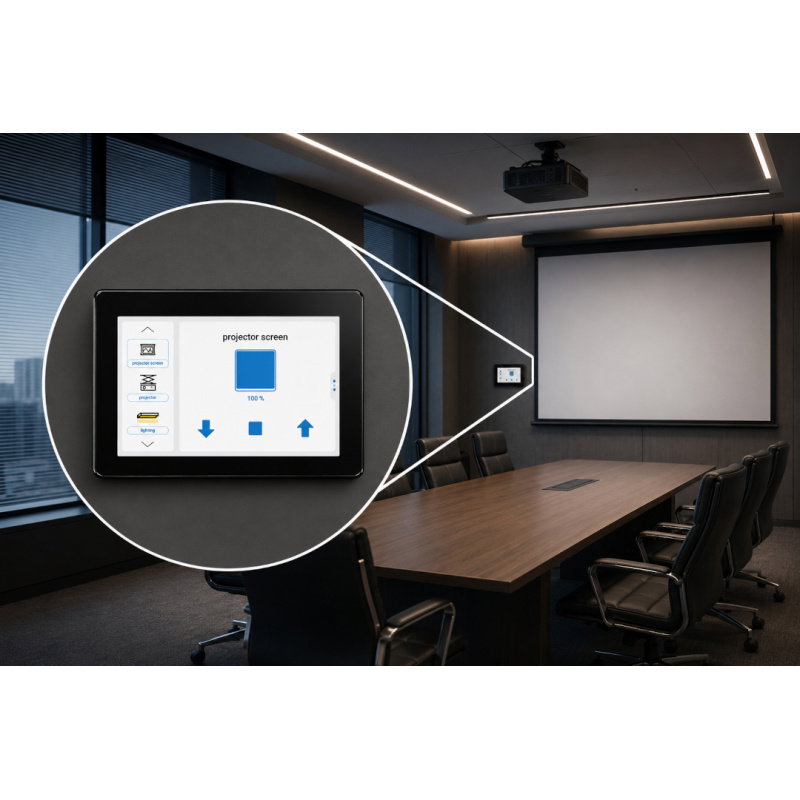

BleBox controlPanelM enables convenient control of lighting, projector screens and window blinds in offices and conference rooms, without the need to look for a remote control or install an application on the phone of each person who would like to have access to the functions.

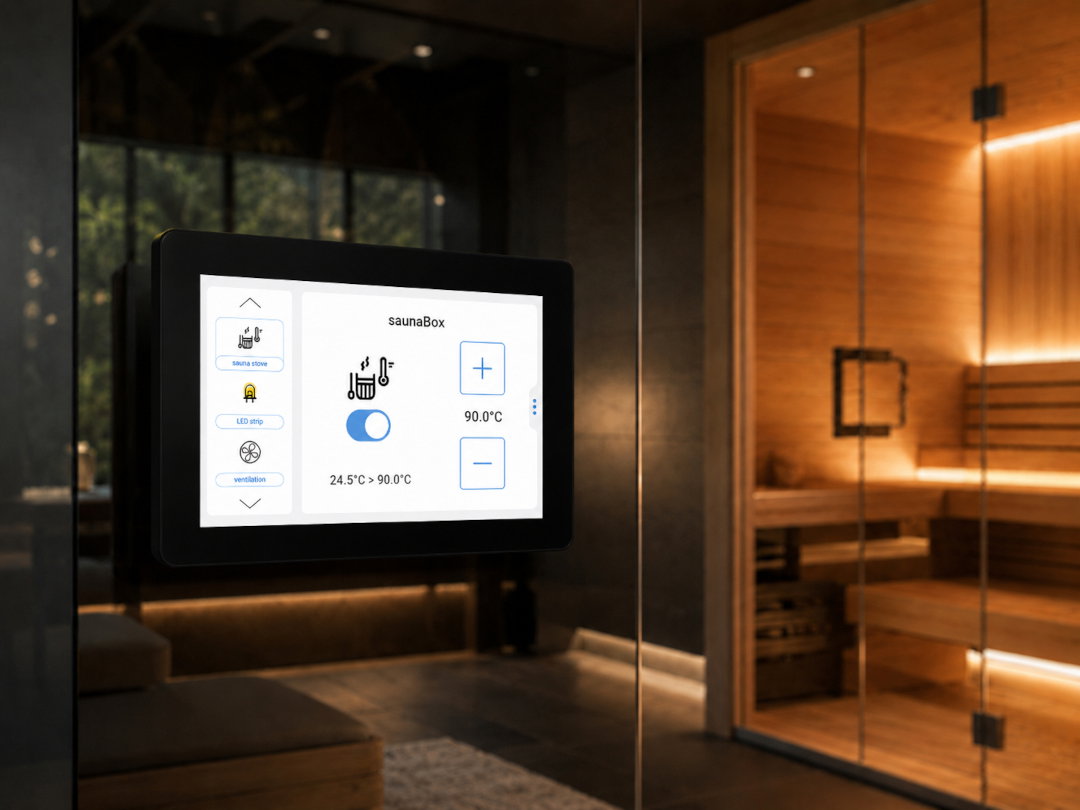

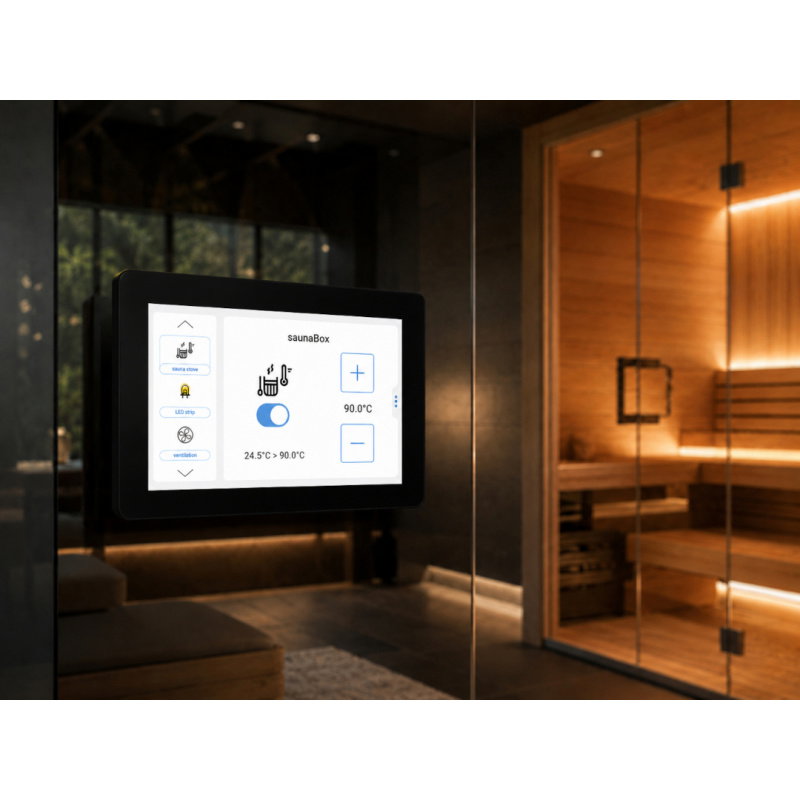

In wellness & spa areas, saunas and relaxation spaces, the panel can act as a central controller, allowing you to regulate temperature, ventilation and LED lighting with colors and light effects.
Versatile application possibilities in any space
The BleBox controlPanelM touch panel is perfect for any space requiring a convenient yet aesthetically pleasing automation control center. In the home, it can replace a set of traditional buttons in the living room, bedroom, kitchen, child's room, garage, or home office, allowing you to operate lighting, blinds, ventilation, and other Smart Home components. In a conference room, it allows you to quickly control lighting, projector screens, and window coverings without having to search for a remote control or install an app on the phone of each person who needs access to the functions. In wellness & spa areas, saunas, and relaxation spaces, the panel can act as a central controller, enabling the regulation of temperature, ventilation, and LED lighting with colors and lighting effects. The panel can also function as an HMI screen for monitoring parameters from BleBox sensors, such as temperature, humidity, wind, precipitation, sunlight, air quality, and the status of windows, doors, gates, and other installation components. Additionally, compatible mounting frames are available and can be purchased separately. These make it easy to match the panel to the interior design and other equipment.
Technical specifications of the BleBox controlPanelM
- Supply voltage: 12 V to 24 V DC
- Power consumption in idle mode: < 1 W
- Maximum power consumption: < 4 W
- Protection: short circuit, reverse polarity
- Connection method: integrated cables 2 x 0.5 mm², 15 cm long
- Screen diagonal: 5.0"
- Screen resolution: 800 x 480 pixels
- Matrix type: IPS, glossy coating
- Panel type: capacitive, touch - multitouch
- Brightness: manually adjustable
- Screen saver: automatic shutdown, configurable time
- Screen lock: automatic or manual, PIN code unlocking, option to disable the function
- Touch signaling: haptic and audible
- Installation method: flush-mounted / recessed
- Mounting accessories: framePanelM for surface mounting on a wall or electrical installation box Ø 60 mm
- Housing: tempered glass front, metal back cover, electronics in plastic cover
- Color: black
- Degree of protection: IP20
- Operating temperature: from 0°C to +40°C
- Operating humidity: 20% to 80% RH, non-condensing
- Operating system: dedicated firmware
- Maximum number of supported BleBox devices: 10
- Communication: local WiFi network
- Communication standard: μWiFi, compatible with WiFi 802.11 b/g/n
- Transmission frequency: 2.4 GHz
- Transmission type: two-way, encrypted
- Operating modes: direct connection as an Access Point, WiFi connection via a router, connection with access from anywhere in the world
- Encryption: WPA2-PSK and AEAD
- Compatibility: iOS, Android, macOS with ARM M1 processors or newer
- Dimensions: 134 x 90 x 12 mm
Contents of the set
- 1 x BleBox controlPanelM - smart screen/control panel 5'' WiFi - black

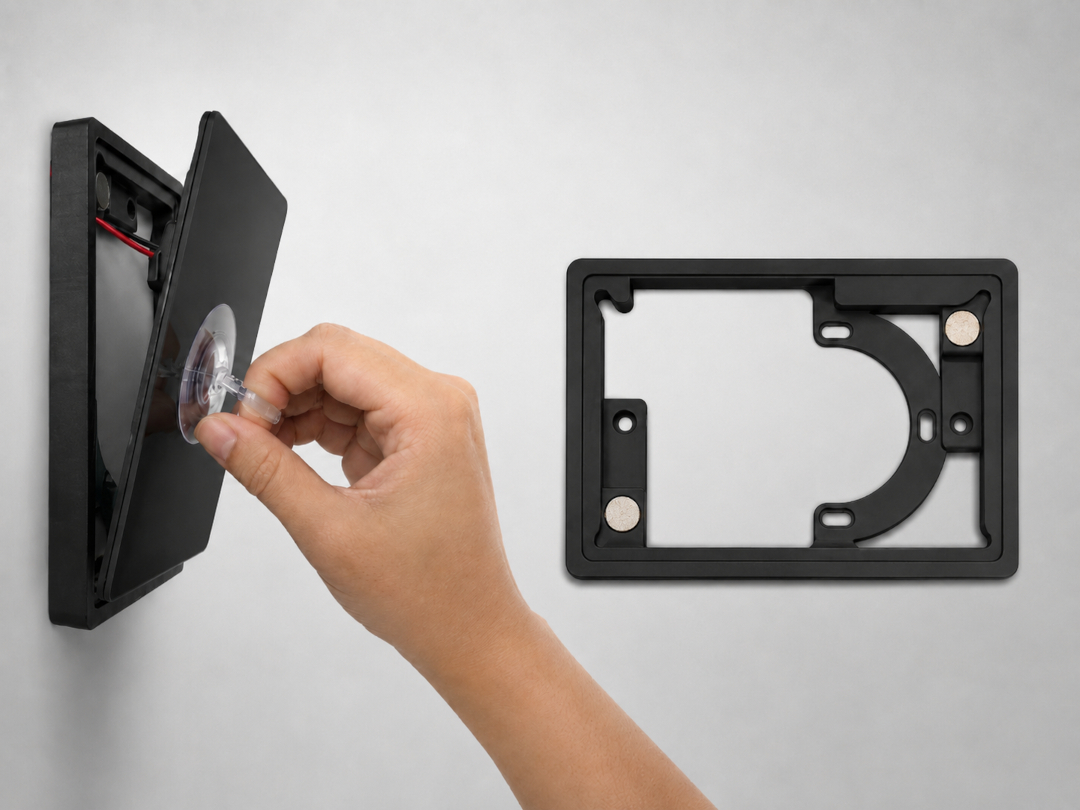

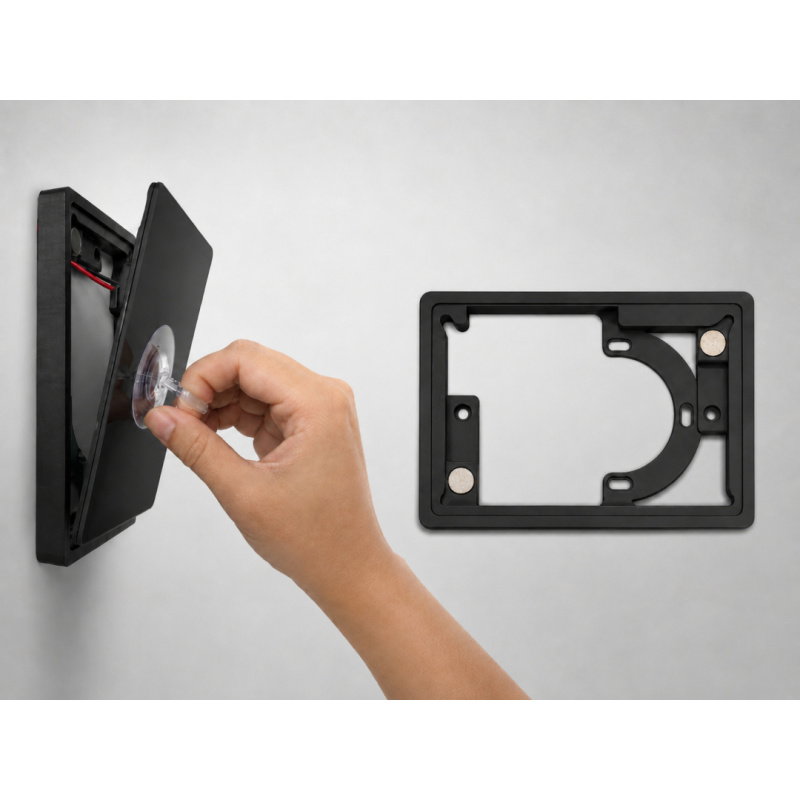

The BleBox framePanelM frame enables quick and aesthetic surface mounting using a standard Ø 60 mm electrical installation box.
The frame is not an accessory included in the set, it must be purchased separately.
