BleBox AmpBox - 4-channel 12-24V LED amplifier

Index: BOX-09734 EAN: 5900168580220

Complete module of a 4-channel LED amplifier, designed for installation with voltage of 12V to 24V and electric power up to 480W. It guarantees safety thanks to a galvanic isolation between the input and the output. Its compact size enable you to put the unit in a junction box.

BleBox AmpBox - 4-channel 12-24V LED amplifier
€19.31
€15.70 tax excl.
Available
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: BleBox

Description

Complete module of a4-channel LED amplifier, designed for installation with voltageof 12V to 24V and electric power up to480W. It guarantees safety thanks to a galvanic isolation between the input and the output. Compact dimensions enable you to put the unit in a junction box. The device hasscrew terminal block connectors for connecting the wires. Its compact size enable you to put the unit in a junction box.

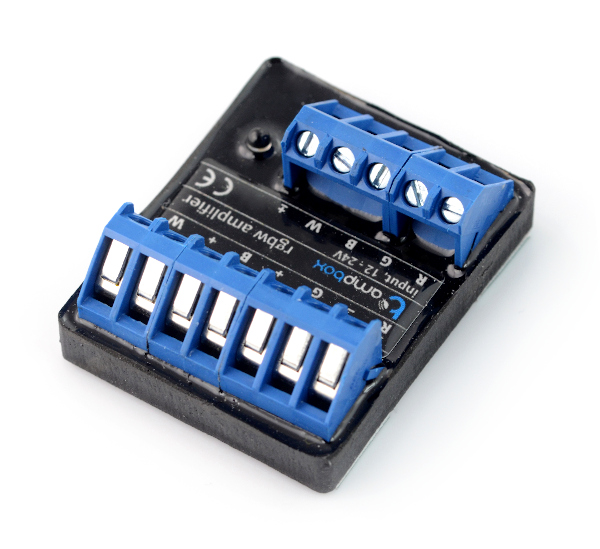

BleBox AmpBox - 4-kanałowy wzmacniacz LED 12-24V

The device hasscrew terminal block connectorsfor connecting thewires. Its compact size enable you to put the unit in a junction box.

Connection

The module has an input in the form of screw terminal clock connectors, to which can connect the wires using a screwdriver:

An example of installing a 3-channel LED tape.

Specification

  • Supply voltage: from 12V to 24V DC
  • The maximum current: 20A
  • Maximum current per channel: 5 A
  • Number of channels: 4
  • Maximum power: 480W
  • Input signal: PWM, common VCC or GND
  • Output signal: PWM, common VCC
  • Built-in screw terminal block connectors
  • The body is made from a polyurethane composition containing no halogen - self-extinguishing for the B insulation class (130°C)
  • Dimensions: 48 x 40 x 19mm

UC - Microcontroller BleBox
Smart Home Lighting controller
