Product description: BleBox wLightBoxS v2 - LED WiFi driver - Android / iOS application
A small, ready-made module for controlling single-colourLED stripsvia WiFi network from anywhere in the world, using the wBox application for mobile devices. The controller is poweredfrom 12 V to 24 Vand supports a maximum power of120 W.BleBox wLightBoxS v2 also allows you to control the lighting usinga traditional wall switch.The device can be integrated with the Google Home and Amazon AlexaVoice Assistant, as well as theHome Assistant, a smart building system. The small size of the module allows it to be closed in a flush-mounted box.

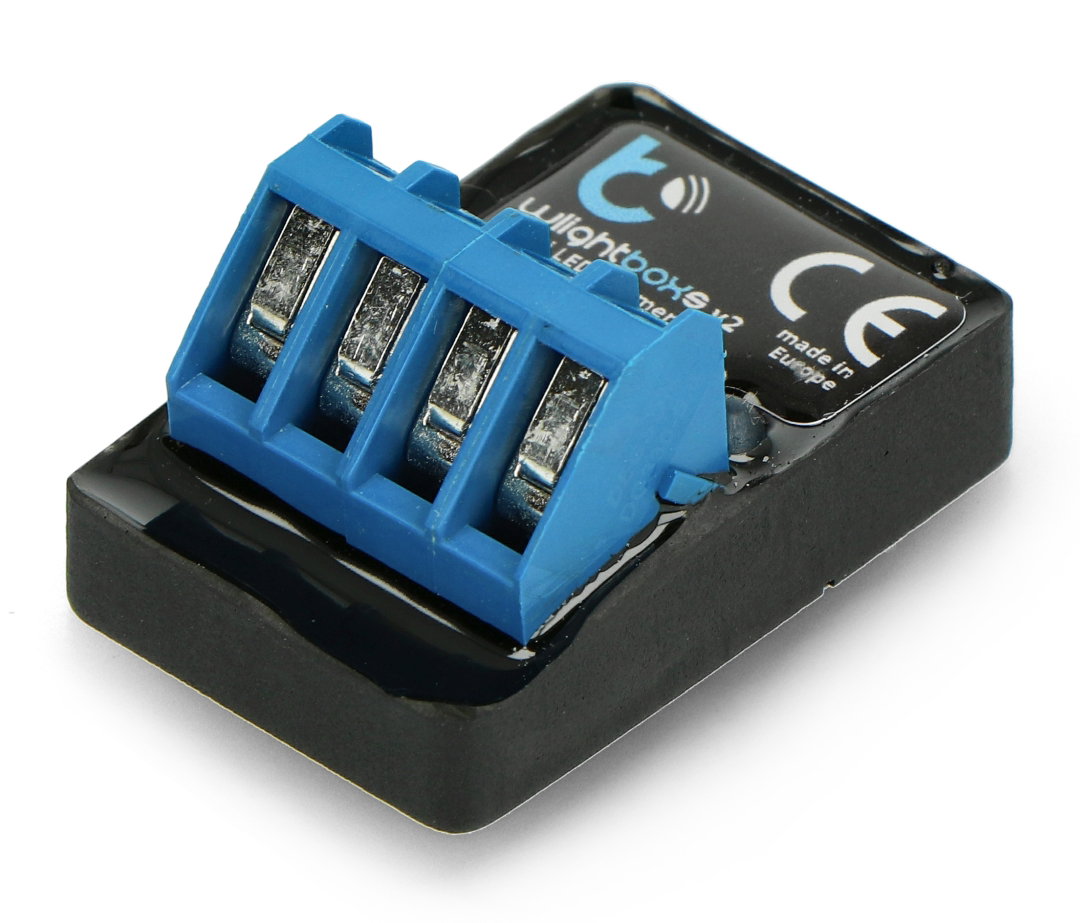

Single-colour LED strip controller wLightBoxS v2.The module is equipped with screw connectors for easy connection of cables.
Wiring diagram of the module.
Wiring diagram of the BleBox wLightBoxS v2 module
Before installing the unit, disconnect the voltage in the circuit to which the unit will be connected. The module should be mounted in a place protected against external conditions, protected against access by third parties.
The BleBox wLightBoxS v2 is equipped with screw terminals to which the cables must be connected using a screwdriver:
- +- supply voltage from 12 V to 24 V, shared with the LED bar.
- IN- input for connecting an external button.
- -- system ground.
- O- control signal connected to the negative pole of the LED bar.
BleBox wLightBoxS v2 controller configuration
In order to configure the driver, download the wBox application for Android or iOS devices and then connect to the driver's WiFi network called "wLightBoxS-xxxxxxxxxx" where "xxxxxxxx" is the serial number of the device. After starting the application you will see the wLightBoxS device, next to the name there will be a "+" sign. In order to pre-configure the driver, click on its default name.
The configuration can also be done through a web browser. In order to do so, enter in the address field the IP address of the device which has been assigned by the DHCP server, e.g.http://192.168.4.1.A configuration page will appear, where you should select your home WiFi network.
Specification of the BleBox wLightBoxS v2 controller
| Supply voltage | 12 V to 24 V DC |
| Energy consumption | up to 1 W |
| Number of outputs | 1 |
| Type of outputs | PWM |
| Supported types of lighting | single and multicolour LED strips, low-voltage LED luminaires |
| Maximum intensity | 5 A |
| Maximum load | 120 W |
| PWM frequency | 1 kHz |
| Color mode | mono |
| Safeguards | reverse polarity, ESD |
| Broadcast | bi-directional with confirmation, encrypted |
| Frequency of transmission | 2.4 GHz |
| Transmission standard | μWiFi, WiFi compatible |
| Communication mode | Direct connection (as Access Point), WiFi connection via standard router, connection with access from anywhere in the world (only Internet access required) |
| Compatible devices | Android and iOS devices, as well as other devices supporting HTML5 |
| Case | made of polyurethane composition without halogens, self-extinguishing for thermal class B (130°C) |
| IP class | IP20 |
| Case | 35 x 24 x 15 mm |
