Description
The IR receiver from the Gravity series, operating at a frequency of 38 kHz with a voltage of 5 V. The module allows to receive commands from the IR transmitter.

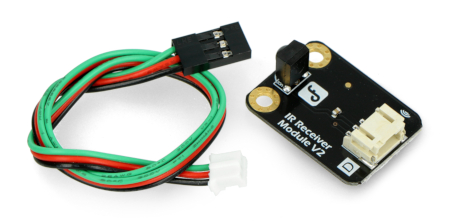

To the module added is the 3-pin cable for direct connection to the board IO Expansion Shield for Arduino.
Specification
- Supply voltage: 5 V
- Operating frequency: 38 kHz
- Communications: digital signal
- Radius: 3 m
|
The product is compatible with Arduino The manufacturer provides a user manual and library for Arduino. |

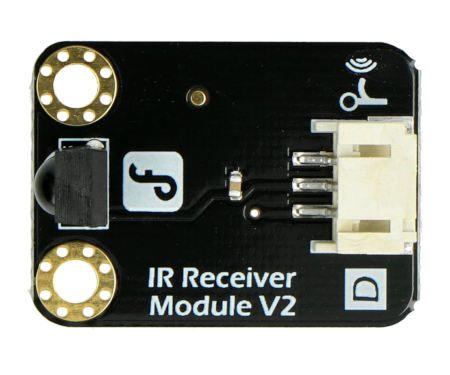

Connection
The sensor communicates with the microcontroller in digital form. It has the following pins:
| Pin | Description |
|---|---|
| GND | The ground of the system. |
| VCC | The supply voltage of 5 V. |
| D | Digital output. |
