Product description: Gravity - ambient light and color sensor - I2C / UART - DFRobot SEN0611
DFRobot brand sensor designed for professional photographers and videographers. It offers factory-calibrated color temperature (CCT) measurements from 2700 K to 6500 K and accurate illuminance readings from 10 lux to 10000 lux , making it an indispensable tool in various lighting conditions. Its compact size (26 x 24 mm) and low power consumption (2.8 mA) ensure efficiency in mobile applications. The sensor is compatible with a supply voltage from 3.3 V to 5 V and supports two communication methods: I2C and UART.

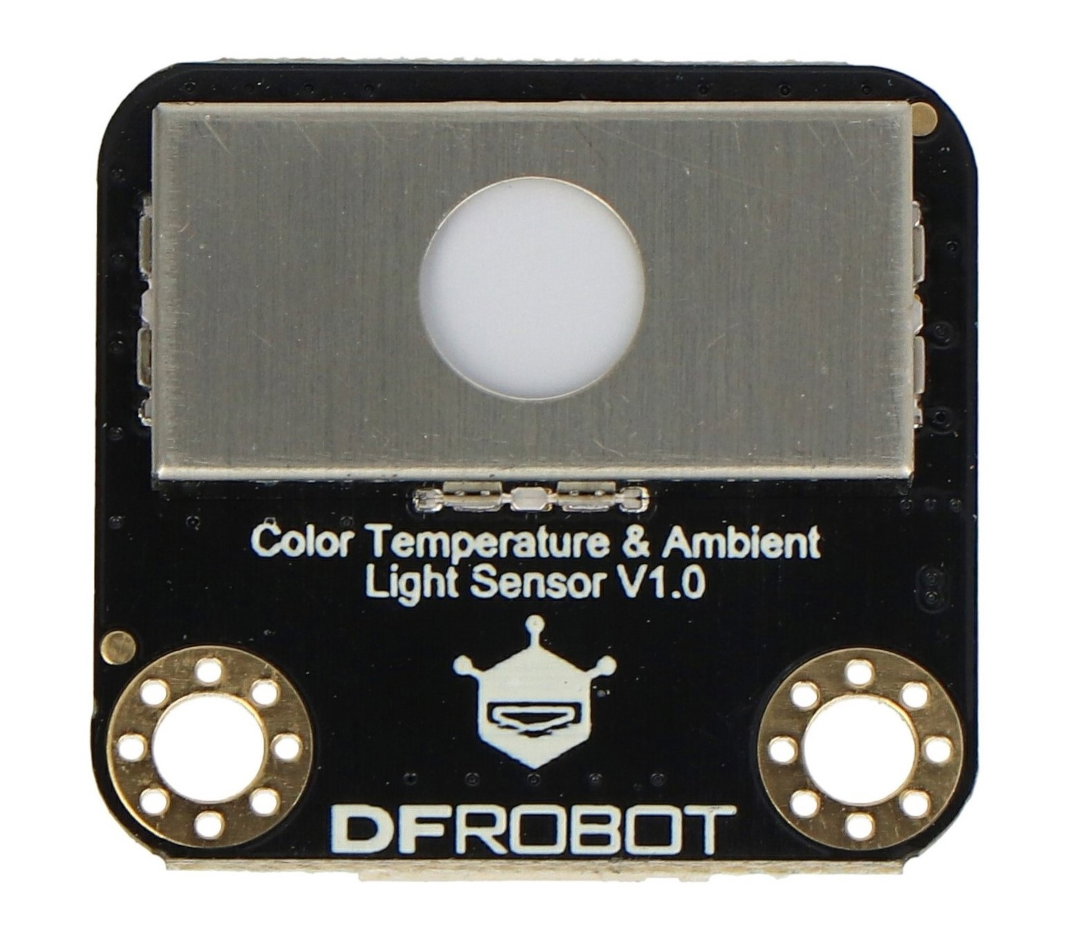

Gravity - ambient light and color sensor - I2C / UART - DFRobot SEN0611.
It offers an illumination measurement range of up to 10,000 lux with a margin of error of ±5 lux.
Main features of the DFRobot SEN0611 module
- Measurement of color temperature (CCT) and illuminance
- CCT measurement range: 2700 K to 6500 K
- Intensity measurement range: 10 lux to 10000 lux
- Compact size: 26 x 24mm
- Supports I2C and UART communication
- Low power consumption: 2.8 mA
- Compatible with voltages from 3.3V to 5V
Sensor Applications
The sensor is used in a variety of applications, including interior lighting systems, light quality control in museums and galleries, and lighting optimization in supermarkets and offices. It allows photographers to precisely adjust lighting conditions , which is crucial for achieving professional visual effects.
Pinout description and connection diagram
The Gravity Sensor has four main pins that allow it to be connected to a microcontroller.
- VCC - supply voltage from 3.3 V to 5 V
- GND - system ground
- D/R - I2C SDA or UART RXD bus data line
- C/T - clock line of the I2C SCL or UART TXD bus

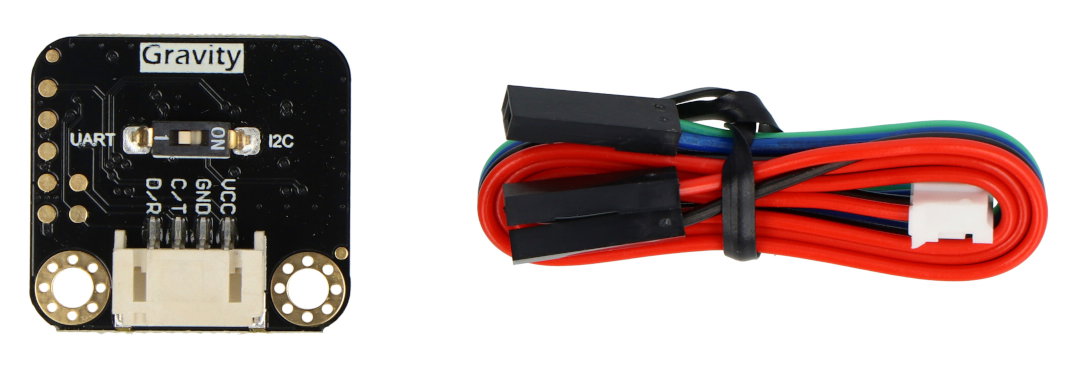

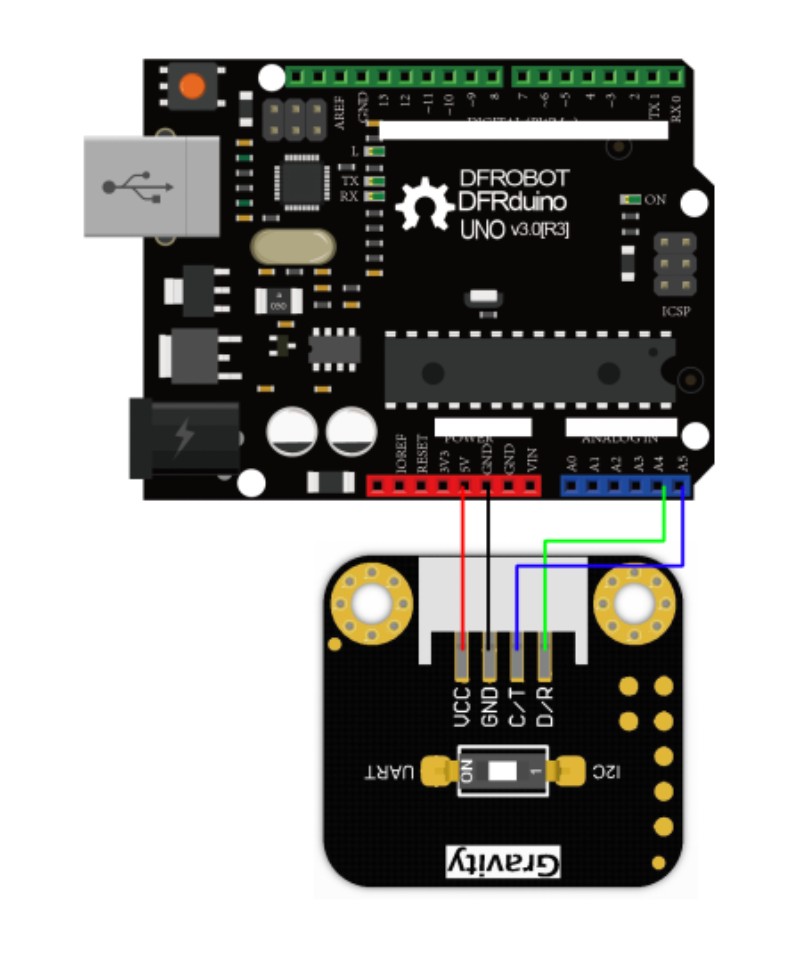

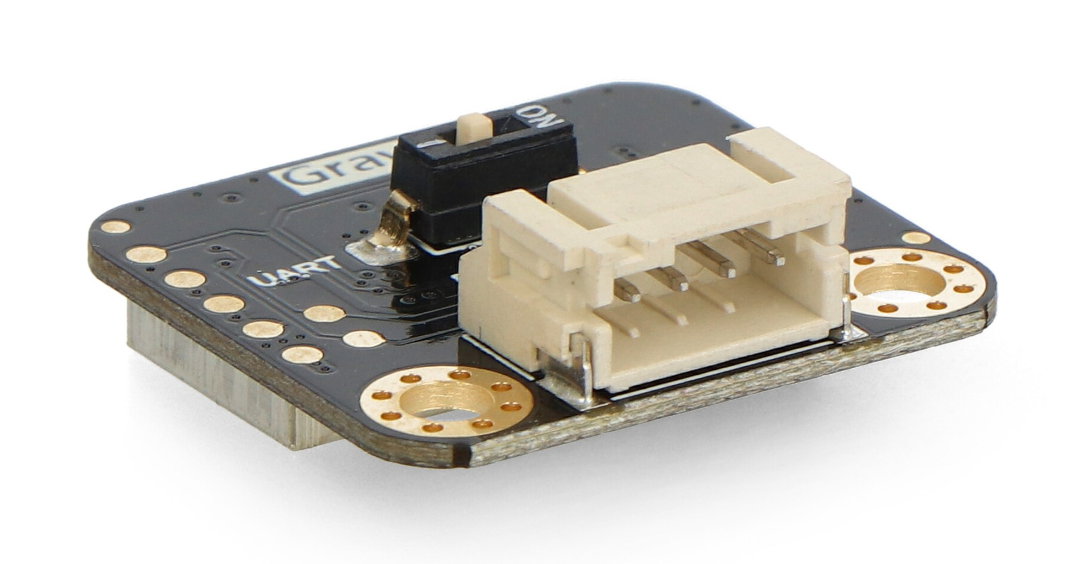

The sensor connection diagram is simple and intuitive. Simply connect the appropriate sensor pins to the microcontroller pins according to the described pinouts. It is recommended to use jumper wires to ensure a stable and reliable connection. Additionally, there is a communication mode switch on the board to choose between I2C or UART.
Arduino compatible product
A detailed user guide is available on the manufacturer's website, which makes it much easier to start working with the module.
Sensor Technical Specifications
- Supply voltage range: 3.3 V to 5 V
- Current consumption: 2.8 mA
- Communication interface: I2C bus, UART
- Illuminance measurement range: 10 lux to 10000 lux
- Illuminance measurement error: ±5 lux / ±10% lux
- Color temperature (CCT) measurement range: 2700 K to 6500 K
- CCT measurement error: ±10% K
- Light source measurement angle: 90°
- Operating temperature: -10°C to 60°C
- Dimensions: 26 x 24 mm
