Product description: Raspberry Pi AI Camera 12 MPx - original camera for Raspberry Pi with IMX500 intelligent vision sensor
The Raspberry Pi AI Camera, based on the Sony IMX500 12MPx intelligent vision sensor, is an innovative solution for projects requiring real-time image processing. With an integrated inference engine, the camera supports on-board processing for popular neural network models such as MobileNet, which significantly reduces the load on the Raspberry Pi processor. The camera offers a 76° viewing angle and manual focus adjustment, providing high flexibility in adapting to various applications. A dedicated 200mm cable allows easy connection to all Raspberry Pi minicomputer models. The camera is an ideal tool for projects in the field of machine vision, monitoring, image and object recognition.

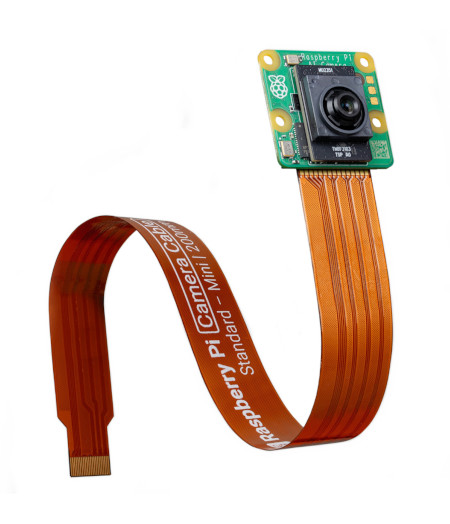

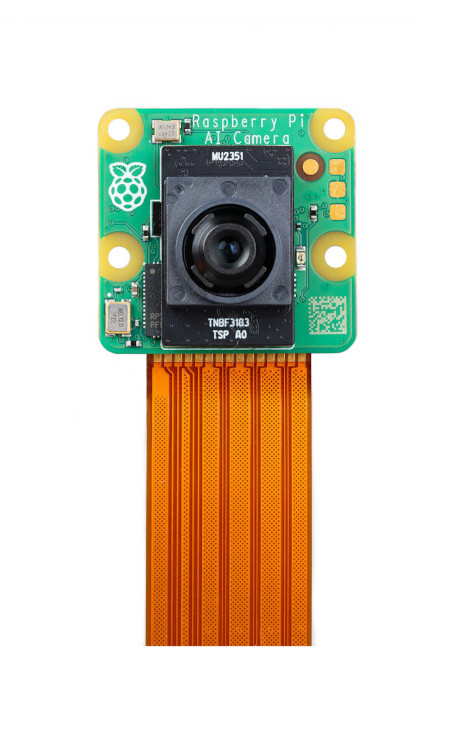

Raspberry Pi AI Camera 12 MPx - the original camera for Raspberry Pi with an intelligent IMX500 vision sensor.
The Raspberry Pi AI Camera supports built-in processing for a variety of popular neural network models.
Key Features of the Raspberry Pi AI Camera
- 12-megapixel Sony IMX500 sensor
- Image processing directly on the sensor, which relieves the Raspberry Pi processor
- Ready-to-use machine vision model, perfect for object recognition
- 76-degree viewing angle
- Precise image adjustment to specific project requirements
- The set includes a 200 mm long tape for easy connection to any Raspberry Pi model
Our store also offers housings, holders and connecting tapes of various lengths for Raspberry Pi cameras.

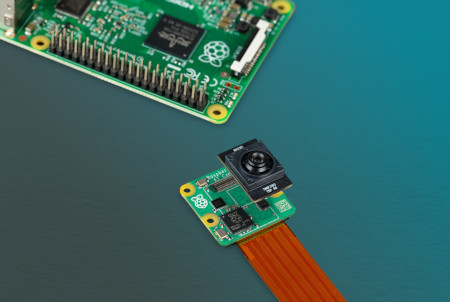

Simple setup and full compatibility with Raspberry Pi
The AI camera with the Sony IMX500 sensor is designed for full compatibility with the Raspberry Pi . Thanks to the supplied ribbon cable, connecting the camera to the Raspberry Pi is quick and easy, regardless of the device model. The pre-loaded MobileNet model allows you to immediately start working with neural networks, significantly reducing setup time and enabling rapid development of AI-based projects.
How to start a Raspberry Pi camera?
To run the camera from the Raspberry Pi minicomputer, connect it to the CSI connector on the board, run the camera interface via raspi-config and execute the appropriate command from the terminal.
The camera comes preloaded with the MobileNet machine vision model.
The set includes a cable for connecting the Raspberry Pi.
Raspberry Pi AI Camera Specifications
- Sensor: Sony IMX500
- Matrix resolution: 12.3 MPx
- Viewing angle: 76°, 66°±3° / 52.3°±3°
- Focus setting: manual
- Focus range: 20 cm to infinity
- Inference engine: integrated, supporting popular neural network models (MobileNet preloaded)
- Sensor size: 7.857 mm (type 1/2.3)
- Pixel size: 1.55 x 1.55 μm
- Resolution: 4056 x 3040 px
- IR cut filter: integrated
- Focal length: 4.74 mm
- Aperture: F1.79
- Infrared sensitivity: none
- Output: Image (Bayer RAW10), ISP (YUV/RGB), Roit, Metadata
- Tensor input size: 640 x 640 px
- Input data type: 'in8' or 'uint8'
- Memory Size: 8388480 bytes
- Frames per second:
- 2x2 binned: 2028 x 1520 px 10-bit 30 fps
- full resolution: 4056 x 3040 px 10-bit 10 fps
- Dimensions: 25 x 24 x 11.9 mm
- Tape length: 200 mm
- Ribbon Connector: 15 x 11mm FPC or 22 x 0.5mm FPC
- Compatibility: All Raspberry Pi models
Contents of the set
- Raspberry Pi AI Camera 12 MPx - the original Raspberry Pi camera with an IMX500 intelligent vision sensor
- CSI 15-pin 200mm tape
- CSI 22-pin 200mm tape
- Lens Adjustment Tool
