Product Description: Limit switch - M5Stack U145
The task of the limit switch is to warn about approaching an obstacle and when the switch lever is pressed, it will change the voltage signal from 3.3 V to 0 V, which will be sent to the microcontroller or other peripheral device. The sensor is used in many mechanical devices before a collision or before being extended too far.

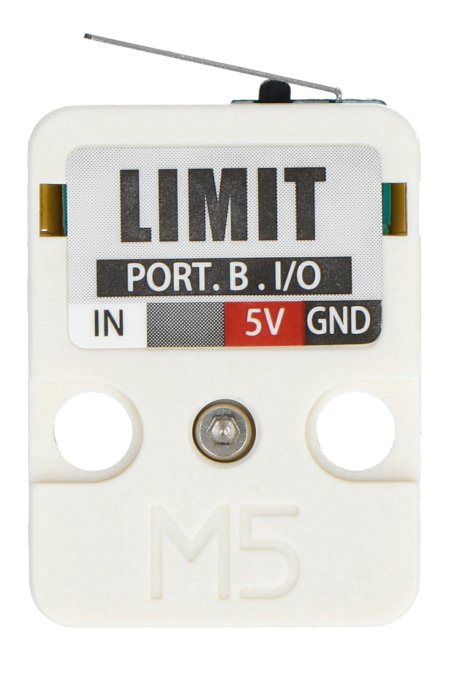

Limit switch - M5Stack.

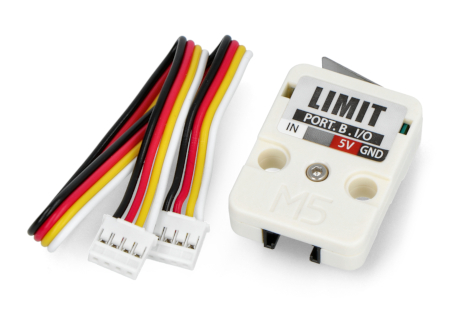

Limit switch.Product features
- Long service life, up to 400 thousand. to use
- Multiple Installation Methods
The product includes
- 1 x Limit switch - M5Stack
- 1 x HY2.0-4P cable (20 cm)
product specification
- Lever length: 16 mm
- Mechanical life: 400 thousand to use
- Power supply: DC 5V
- Logic signal output: DC 3.3V
- Current required: DC 5 V 3 mA
- Operating current: DC 5V 3mA
- Weight: 6.3 g
- Dimensions: 37 x 24 x 9.5 mm
Limit switch - rear.
