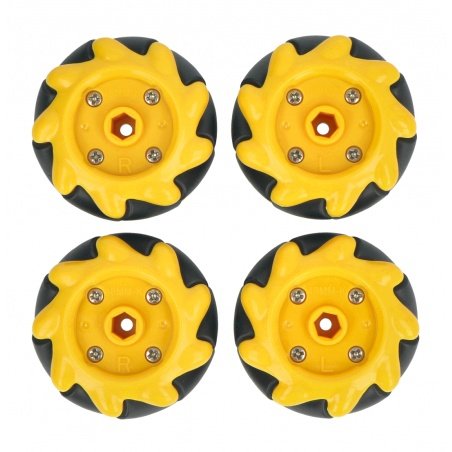

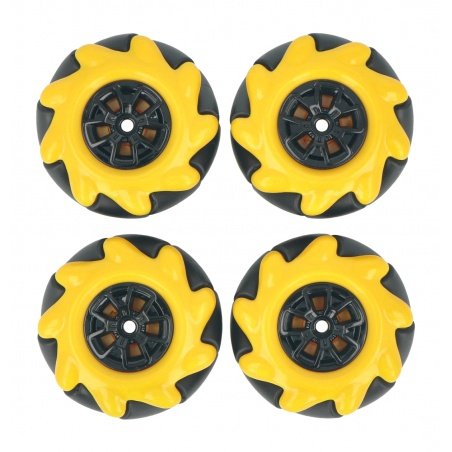

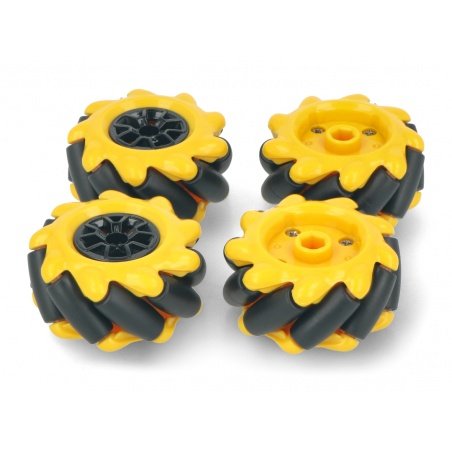

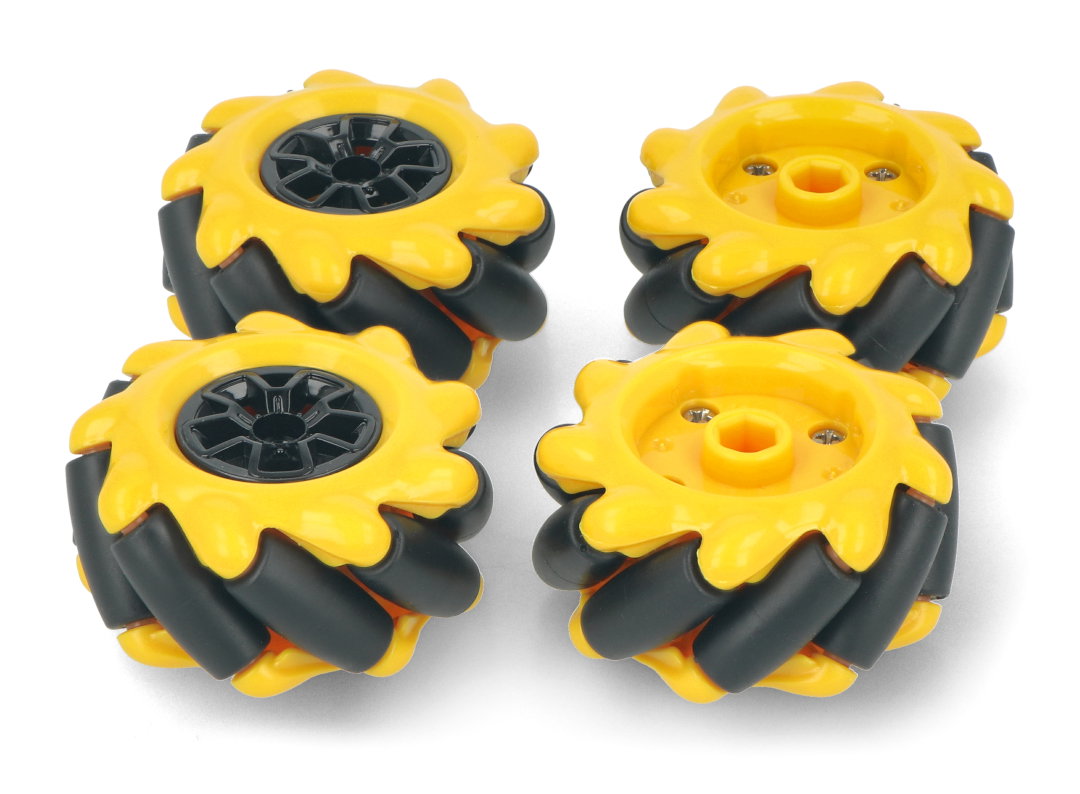

Set of Mecanum wheels - 48 mm - 4 pieces - black/yellow with rollers - DFRobot FIT0662-1

Index: DFR-19386 EAN: 5904422346539
Multidirectional Mecanum wheels from DFRobot included - 4 pieces with a diameter of 48 mm. Thanks to them, vehicles can move in any direction - it is possible to drive straight, diagonally, horizontally, slalom on the letter S. They also allow the vehicle to turn at any angle while maintaining a zero radius of movement. Each wheel consists of 9 rollers made of high quality plastic and covered with a protective layer of silicone rubber. The Mecanum wheels from DFRobot provide a stable ride and are distinguished by their low noise operation. The set includes 4 wheels - two right wheels and two left wheels.
Set of Mecanum wheels - 48 mm - 4 pieces - black/yellow with rollers - DFRobot FIT0662-1
€20.50
€16.67 tax excl.
Waiting time: 4-6 weeks
Temporarily unavailable
30-day returns
PayPal payment
Mecanum wheel set - diameter:
Manufacturer: DFRobot

Product description: Set of Mecanum wheels - 48 mm - 4 pieces - black/yellow with rollers - DFRobot FIT0662-1

MultidirectionalMecanumwheelsfrom DFRobot in set - 4 pieces with diameter of48 mm. Thanks to them, vehicles can move inany direction- it is possible to drive straight, diagonally, horizontally, slalom on the letter S. They also allow thevehicletoturnat any angle while maintaining azero radius of movement. Each wheel is made of9 rollersmade of high quality plastic and covered with a protective layer of silicone rubber, which is characterised by a high coefficient of friction. The rubber is verydurableand impact resistant. The Mecanum wheels from DFRobot providea stable rideand are distinguished by their low-noise operation. Thanks to their guaranteed manoeuvrability, they can be used in a wide range of projects. The wheels are based on hexagonal, omnidirectional drive technology, which makes it possible for users to control the robot even in extremely tight spaces. Set includes4wheels - two right and two left.

Zestaw zawiera cztery koła - dwa prawe R i dwa lewe L.

Set includes four wheels - two right-hand R and two left-hand L.

Attention!

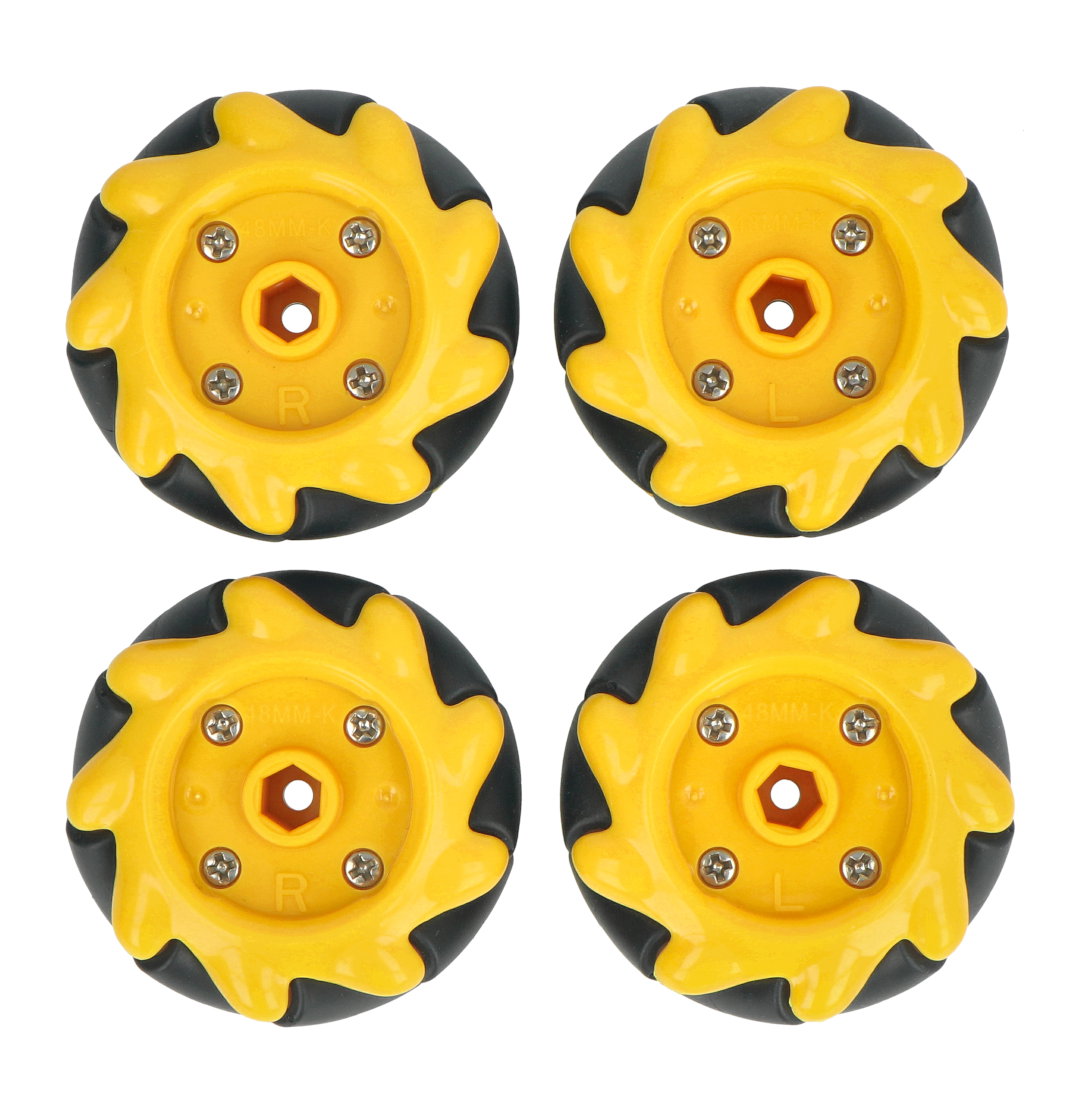

Set includes four wheels - tworightand twoleft. When installing the wheels, pay attention to the markings inside the product. The right hand wheel is marked with letter R and the left hand wheel with letter L.

Zestaw kół Mecanum - 48 mm - 4 sztuki - czarno-żółte z rolkami.Set of Mecanum wheels - 48 mm - 4 pieces - black/yellow with rollers.

Technical specification

  • Number of rollers per wheel: 9 pcs.
  • Angle: 45°
  • Markings:
    • right hand wheel - R
    • left hand wheel - L
  • Colour: black and yellow
  • Material: plastic + silicone rubber
  • Dimensions of one wheel:
    • diameter: 48 mm
    • thickness: 24.5 mm
    • hexagonal hole: 7 x 7 x 7 mm

Set contents

  • Mecanum - 48 mm right hand wheel - 2 pcs.
  • Mecanum 48 mm left hand wheel - 2 pcs.
Colour black
Colour yellow
Diameter 4.0 mm
Chassis - wheels 4
