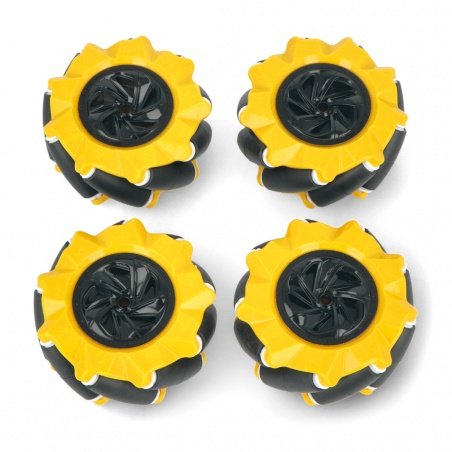

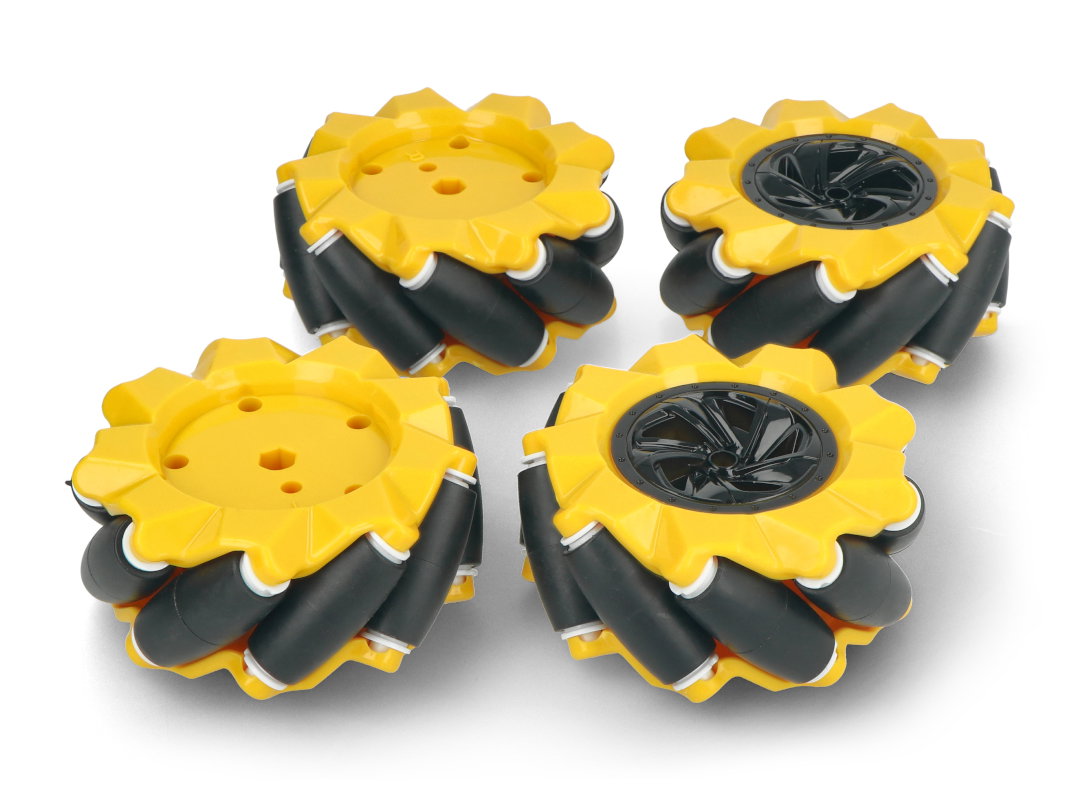

Product description: Set of Mecanum wheels - 80 mm - 4 pieces - black/yellow with rollers - DFRobot FIT0654-1
Mecanummultidirectionalwheelswith a diameter of80 mm, which allow vehicles to move inany direction- straight, diagonal, horizontal, S slalom. They also allow thevehicletoturnat any angle while maintaining azero radius of movement. Each wheel consists of9 rollersmade of plastic and covered with a protective layer of silicone rubber, which has a high coefficient of friction, isdurableand resistant to impacts. Mecanum providea stable ride, flexible use and are distinguished by low noise operation. The wheels are based on hexagonal, omnidirectional drive technology, which makes it possible for users to steer the robot even in extremely tight spaces. The set includes4wheels - two right and two left.
Set includes four wheels - two right-hand R and two left-hand L.
Attention!

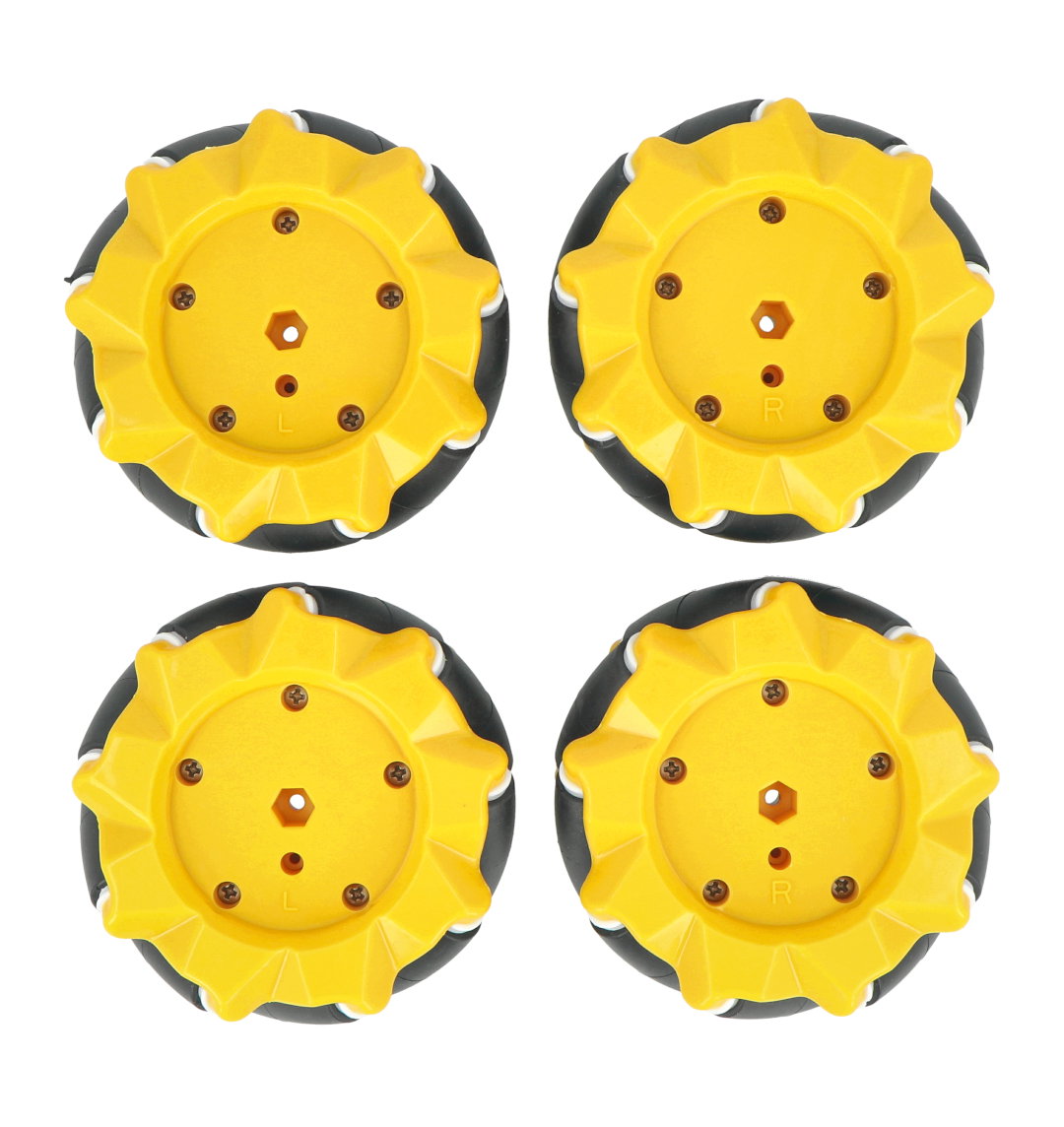

Set includes four wheels - tworightand twoleft. When installing the wheels, pay attention to the markings inside the product. The right hand wheel is marked with letter R and the left hand wheel with letter L.
Set of Mecanum wheels - 80 mm - 4 pieces - black/yellow with rollers.
Technical specification
- Number of rollers per wheel: 9 pcs.
- Angle: 45°
- Markings:
- right hand wheel - R
- left hand wheel - L
- Load capacity: 10 kg
- Colour: black and yellow
- Material: plastic + silicone rubber
- Dimensions of one wheel:
- diameter: 80 mm
- thickness: 37.5 mm
- hexagonal hole: 7 x 7 x 7 mm
Set contents
- Mecanum - right hand wheel 80 mm - 2 pcs.
- Mecanum - left hand wheel 80 mm - 2 pcs.
