Product description: Inductive proximity sensor E2S-H4N1 4 mm 10-30 V
TheE2S-H4NInductiveProximity Sensorallowsmetaldetectionup to 4 mm away.It has a 200 cm cable length. The response time is less than1 msand the switching frequency is1000 Hz. The sensor has an IP67 degree of protection and is powered from 10 V to 30 V. It is used, among others, in machine automation, safety devices, as well as in robot designs for speed detection.
Technical specification of the E2S-H4N1 sensor
- Supply voltage: 10 V to 30 V
- Power consumption: 150 mA
- Measuring range: up to 4 mm
- Output type: NPN - NO (normally open)
- Object to be detected: metal
- Type of detection: inductive
- Operating temperature: 0 -20°C to 65°C
- Switching frequency: 1000 Hz
- Response time: ＜ 1 ms
- Protection: IP67
- The exits:
- Black cable: signal line
- Brown wire: power supply
- Blue wire: GND system weigh
- Cable length: approx. 200 cm
- Dimensions: 27 x 10 x 6 mm

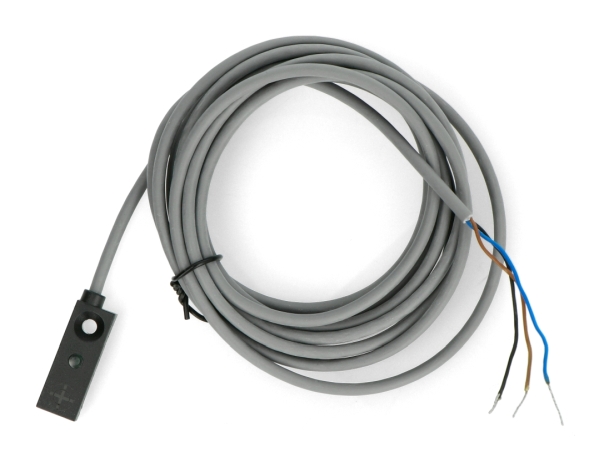

The sensor has an IP67 protection, so it can be used regardless of the prevailing weather conditions.
