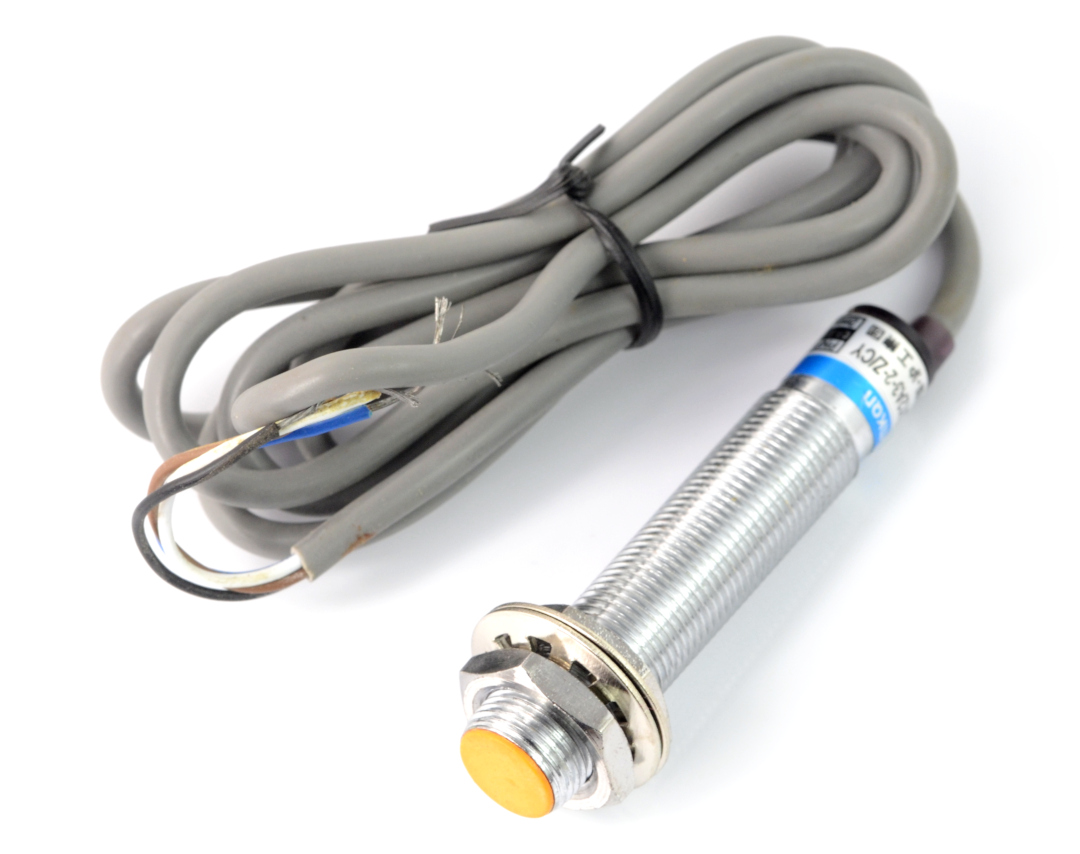

Product description: Inductive proximity sensor LJ12A3-2-Z/CY 2 mm 6-36 V
Inductive, digital proximity sensor with a 100 cm cable and nuts for easy installation. Detects metal up to 2 mm away . Powered by a voltage of 6 V to 36 V. Detection of an object is indicated by a high output (black cable) and a red LED .
Inductive proximity sensor LJ12A3-2-Z/CY 2 mm 6-36 V.
LJ12A3-2-Z/CY sensor specifications
- Supply voltage: 6 V to 36 V
- Current consumption: 10 mA
- Measuring range: 0 to 2 mm ± 10%
- Output signal: digital 300 mA
- Output state: default low, goes high when an object is detected.
- Output type: PNP - NO + NC
- LED indicating object detection
- Detected object: metal
- Response time: less than 2 ms
- Operating temperature: -25 ° C to +70 ° C
- Diameter: 12 mm
- Sensor length: 60 mm
Connection
- Brown wire - supply voltage
- Blue wire - ground - GND
- Black and white wire - digital output - OUT
- black - NO - 300 mA
- white - NC - 6-36 V
Inductive proximity sensor LJ12A3-2-Z/CY 2 mm 6-36 V
This inductive, digital, wired proximity sensor includes 100 cm of wire and nuts for easy installation. It detects metals up to 2 mm away. Detection of an object is indicated by a high output. Powered by a voltage of 6 V to 36 V. Type: PNP.
Product description: Inductive proximity sensor LJ12A3-2-Z/CY 2 mm 6-36 V
An inductive digital proximity sensor operates like a ferromagnetic metal detector. The detection range is the distance from the sensor's edge to the maximum distance at which the sensor can detect a target—this can vary depending on the metal. The sensor's output type is a two-state PNP NO (Normally Open) + NC (Normally Closed).
LJ12A3-2-Z/CY sensor specifications
- Supply voltage: 6 V to 36 V
- Current consumption: 10 mA
- Measuring range: 0 to 2 mm ± 10%
- Output signal: digital 300 mA
- Output state: default low, after detecting an object it goes to high state
- Output type: PNP - NO + NC
- LED indicating object detection
- Detected object: metal
- Response time: less than 2 ms
- Operating temperature: -25°C to +70°C
- Diameter: 12 mm
- Sensor length: 60 mm
Connection
- Brown wire – supply voltage
- Blue wire – ground – GND
- Black and white wire - digital output - OUT
- no object – poor condition
- object detection – high
