Inductive proximity sensor LJ12A3-2-Z/CY 4 mm 6-36 V
The presented inductive, digital, wired proximity sensor includes 100 cm long cables and nuts for easy installation. Detects metals at a distance of up to 4 mm. The detection of an object is signaled by the appearance of a high state at the output. The sensor is powered by voltage from 6 V to 36 V. Type: PNP.
Product description: Inductive proximity sensor LJ12A3-4-Z/BY 4 mm 6-36 V
The inductive, digital proximity sensor works as a ferromagnetic metal detector. Detection range is the distance from the tip of the sensor to the maximum distance at which the sensor can detect a target - it may vary depending on the metal. The sensor output type is binary PNP NO (normally open). It is characterized by a fast response time of less than 2 ms.

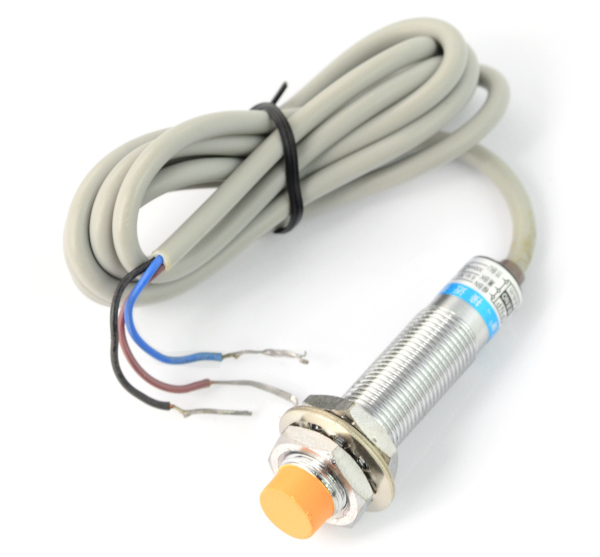

Inductive proximity sensor LJ12A3-4-Z/BY 4 mm 6-36 V.
LJ12A3-4-Z/BY sensor specifications
- Supply voltage: 6V to 36V
- Current consumption: 10 mA
- Measuring range: 0 to 4 mm ± 10%
- Output signal: digital 300 mA
- Output state: goes high when an object is detected
- Output type: PNP – NO (normally open)
- LED indicating object detection
- Detected object: metal
- Response time: less than 2 ms
- Operating temperature: -30 °C to +65 °C
- Diameter: 12 mm
- Sensor length: 56 mm
Connection
- Brown wire – supply voltage
- Blue wire – ground – GND
- Black and white wire – digital output – OUT
- no object – low status
- object detection – high status
