Product description: Grove AC-Voltage sensor - RMS AC voltage sensor - MCP6002 - Seeedstudio 101991032
The sensor is equipped with the MCP6002 system and is designed to measure the rms value of AC voltage . It has adjustable gain for various voltage inputs from 120 V to 240 V AC , and the module output has an analog signal, thanks to which the board is compatible with development boards such as Arduino, ESP32 or Wio Terminal. Thanks to the high measurement precision, it can be used to create smart energy meters.
Special features of the module
- High adaptability for various voltage inputs 120 V / 240 V AC (or lower)
- High compatibility thanks to the use of an analog output, the module can be used with many different development boards such as Arduino, ESP32 or Wio Terminal
- Accurate measurement of voltage changes generated by high-power loads
- High quality MCP6002 integrated circuit with analog output
- Easy to use with Grove connector (plug and play)
- Adjustable gain and manual calibration for custom adjustments

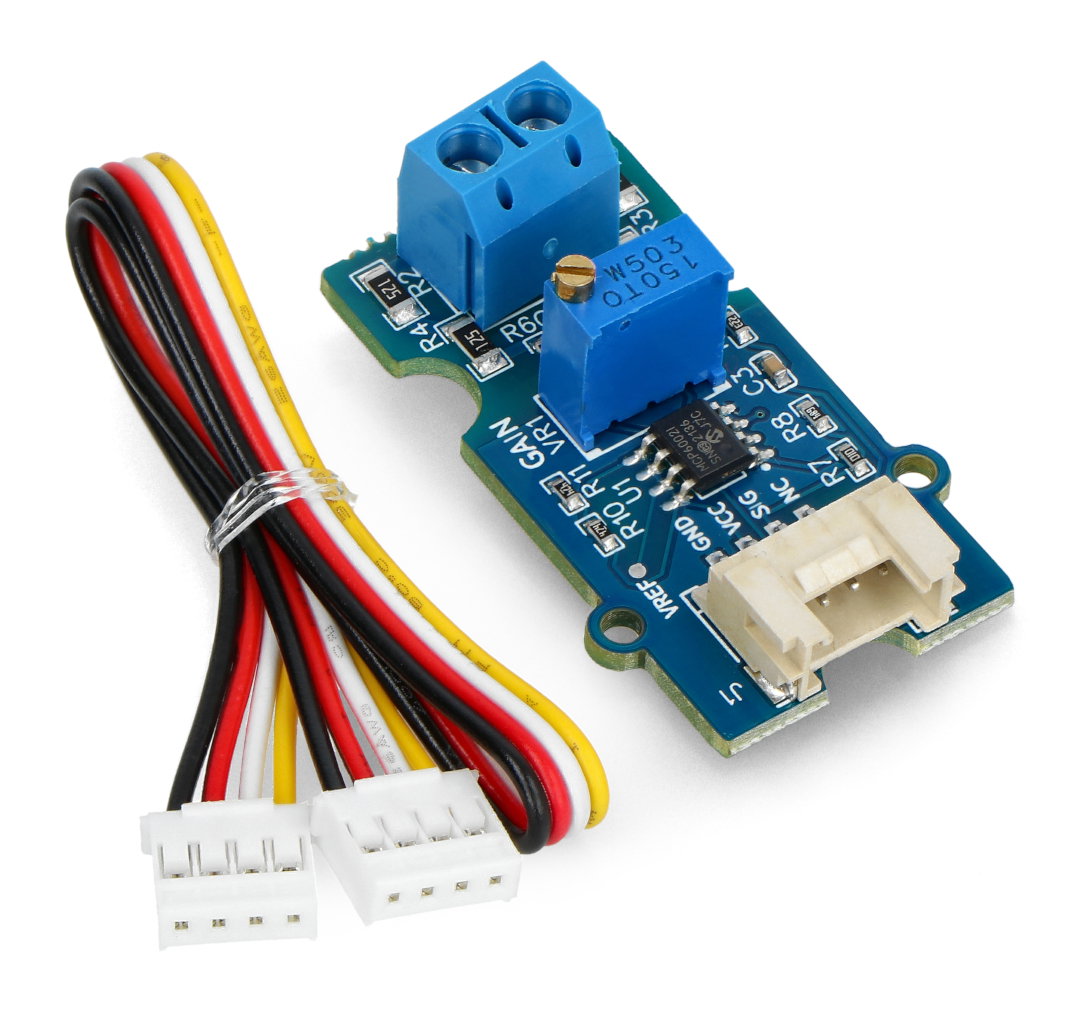

Components included in the set.

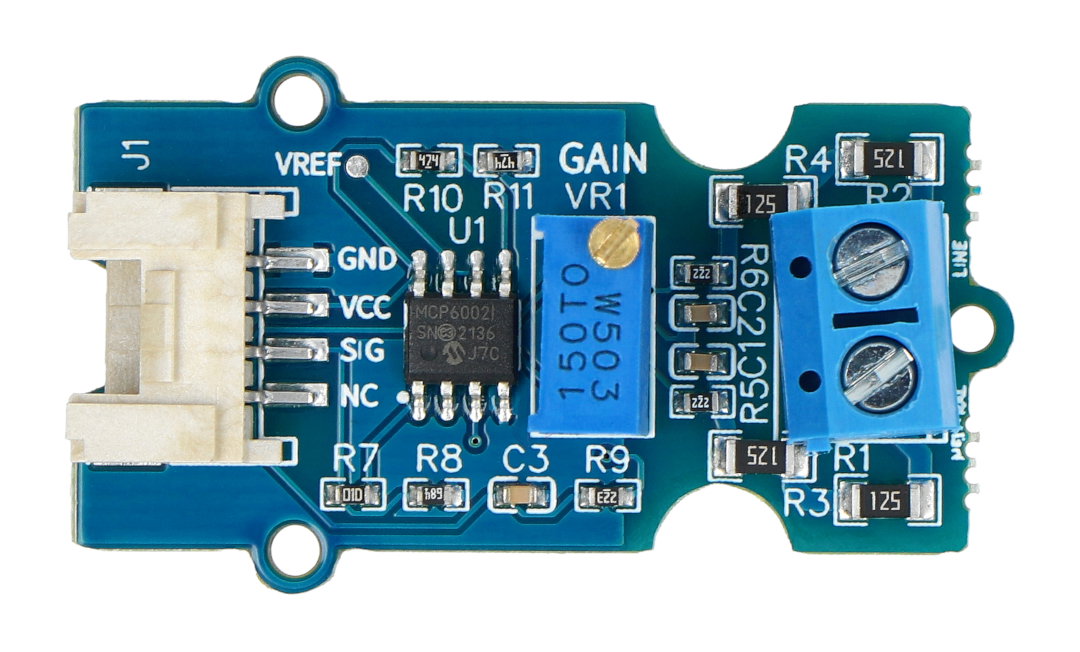

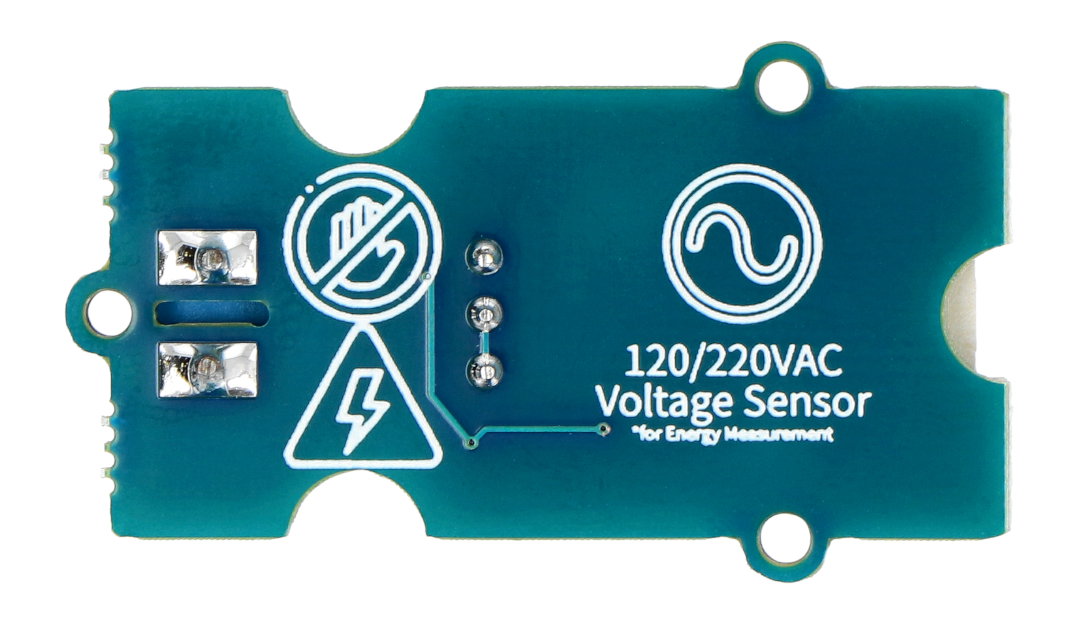

The board is equipped with a convenient Grove ecosystem connector.
Pin description
- GND - system ground
- VCC - input voltage in the range from 3.3 V to 5 V
- SIG - analog signal output
- NC - not connected
Suggested use
- AC voltage meter
- Intelligent energy monitoring
- machine learning
- Cargo identification
- home automation
- IoT projects
Technical specification of the Grove AC-Voltage sensor module
- Type: RMS voltage sensor
- Input voltage: 3.3V to 5V
- Output type: analog signal
- Built-in chip: MCP6002 (OPAMP)
- Adjustable Gain: Yes, from 120V to 240V AC
Kit contents
- Grove AC-Voltage sensor - RMS AC voltage sensor - MCP6002 - 1 piece
- Connection cable with Grove connector - 1 piece
Grove AC-Voltage sensor - RMS AC voltage sensor - MCP6002 - Seeedstudio 101991032.
