Product description: Raspberry Pi microcontroller - RP2040 - roll of 500pcs. - SC0908(7)
A roll containing500pcsof RP2040 microcontrollers created by the Raspberry Pi foundation. TheRP2040is the first microcontroller designed by theRaspberry Pifoundation. It was first used in theRaspberry Pi Picomodule and in modules from other manufacturers, including Arduino, which unveiled itsArduino Nano RP2040 Connectmodule. It is a very powerful chip, based on a dual-coreARM Cortex M0+processor clocked at133 MHz. It has 264 kB of built-in SRAM, uniqueprogrammable I/O (PIO)and other popular communication interfaces. Detailed documentation, a fine-tuned MicroPython port and the UF2 bootloader located in ROM allow even novice users and hobbyists to get started with the microcontroller. The RP2040 microcontroller has been manufactured using a modern40nmtechnology process. It provides high performance, low power consumption, with multiple low-power modes that allow the chip to run on battery power for long periods of time. The microcontroller is enclosed in aQFN-56enclosure.
Price includes a roll of 500 RP2040 microcontrollers.

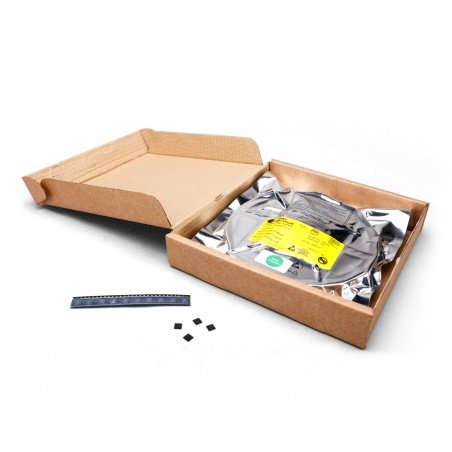

A roll of RP2040 Raspberry Pi microcontrollers.
Pinout of RP2040 microcontroller.Pinouts of the RP2040 microcontroller
The Raspberry Pi RP2040 chip comes with30 GPIO pinsalong with popular communication interfaces such as:
- 2 x UART
- 2 x SPI
- 2 x I2C
- 16 x PWM
- USB 1.1 and PHY controller
- 8 PIO
- 4 x analog inputs
With these interfaces, the RP2040 microcontroller can be used widely, from projects using machine learning to those that will control motors.The I/O interfaces operate at 3.3V.
Please refer to the RP2040documentationfor a detailed pinout.
RP2040 microcontroller specifications
- Processor: dual-core ARM Cortex-M0+
- Clock speed: 133 MHz
- SRAM: 264 kB
- Flash memory: optional up to 16 MB via dedicated QSPI bus
- Operating voltage: 1.8 V / 3.3 V
- Number of GPIOs: 30
- 2 x UART
- 4 x analog inputs
- 2 x SPI
- 2 x I2C
- 16 x PWM
- 1 x USB 1.1 and PHY
- 8 x PIO
- ADC: 12-bit
- Operating temperature: from -20°C to 85°C
- Housing: QFN-56
- Dimensions: 7.75 x 7.75 mm
Explanation of RP2040 chip designation.
