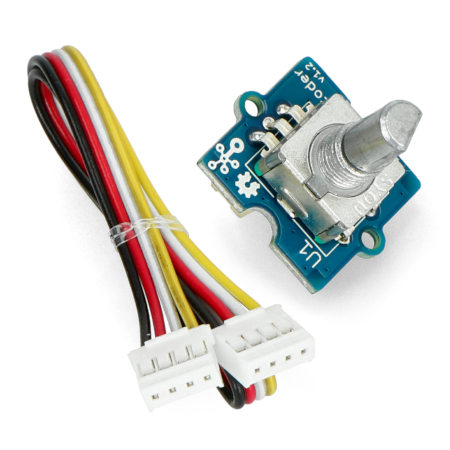

Knob in a form of an encoder with a button that allows you to create a simple user interface. The module sends a digital signal to the SIGA and SIGB outputs, depending on the direction of rotation. Operates from voltage of 5 V. The kit also includes a cable for Seeedstudio Base Shield v2.0.
Module supplied with 4-pin cable for Base Shield v2.0.

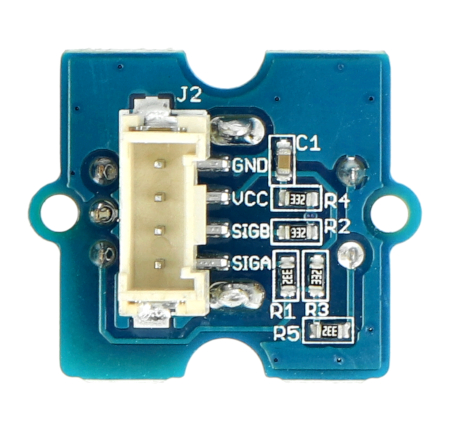

The sensor has a 4-pin Grove with digital outputs SIGA, SIGB, to be attached to the pin of the microcontroller, e.g. Arduino.
|GND||The ground of the system.|
|VCC||The supply voltage of 5 V.|
|A SIG||Signal And receiver.|
|SIG B||The signal B of the receiver.|
The product is compatible with Arduino
The manufacturer has prepared a user guide along with an exemplary program for Arduino.
The operation of this sensor
- Supply voltage: 4.5 V to 5.5 V
- 360° rotation
- Current consumption: 10 mA to 30 mA
- Dimensions: 20 x 20 mm
- Weight: 12 g
