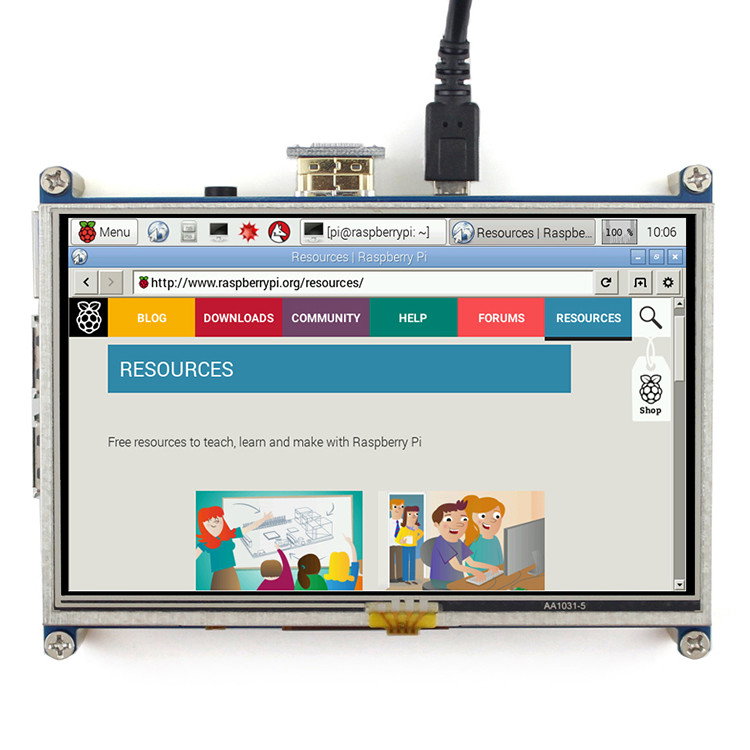

Touch screen - resistive LCD 5'' 800x480px - HDMI + GPIO for Raspberry Pi + case - Waveshare 11189
Waveshare resistive 5" touch screen for Raspberry Pi with a resolution of 800 x 480 px. It works any version of the Raspberyr Pi via the HDMI connector and the GPIO pins. The kit also includes black-and-white case for the minicomputer with a mounted screen.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
5" resistive touch screen for the Raspberry Pi with a resolution of 800 x 480 px. It works with any version of theRaspberry Pi via the HDMI connector and the pins GPIO - necessary hardware included in the package. The device also works with minicomputers:Banana PiandBeagle Bone Black. A special black-and-white case for the Raspberry and the screen included.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
Connect to Raspberry Pi
In order to start the screen, put the device on the GPIO pins of the Raspberry Pi and connect the HDMI connector.
In the kit you will also find a special case, which will allow you to install the Raspberry with the screen and set the screen at an angle of 45° or 60°.
Screenshot from the Win32 Disk Imager program. When you select the system, just press the Write button and wait until the installation process is completed.
Software
The manufacturer has prepared the operating system with the installed drivers. The system should be unpacked using a dedicated program such as WinZip and upload to the memory card usingWin32 Disk Imager.
A detailed description of the connection and installation of drivers without changing the Raspberry Pi, Banana Pi and Beagle Bone Black systemscan be found inour guideor onthe manufacturer's website. |
GPIO
| Pin GPIO | Symbol | Description |
|---|---|---|
| 1, 17 | 3.3 V | Power Supply 3.3 V. |
| 2, 4 | 5V | Power Supply 5 V. |
| 3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 | NC | Not connected. |
| 6, 9, 14, 20, 25 | GND | Ground. |
| 19 | TP_SPI | SPI input data for the touch panel. |
| 21 | TP_SO | SPI output data for the touch panel. |
| 22 | TP_IRQ | Cutting off the touch panel, recognizing touch sets the low state. |
| 23 | TP_SCK | SPI clock signal for the touch panel. |
| 26 | TP_CS | Chip select for touch panel. |
Specification
- Screen type: resistive touch
- Diagonal: 5 "
- Resolution: 800 x 480 px
- Works with:Raspberry Piin version 4B, 3B, 2B and B+ (works directly withsystem from manufacturer)
- Screen uses 26 GPIO pins
- 4 mounting holes (screws included in the package)
- Screen dimensions: 121 x 76 mm
- External frame dimensions: 133 x 95 mm
- Case in black and white
- The possibility of setting at an angle of 45 ° or 60 °
- Material: acrylic
Case assembly
The case allows you to install the screen along with minicomputerem Raspberry Pi in the back.

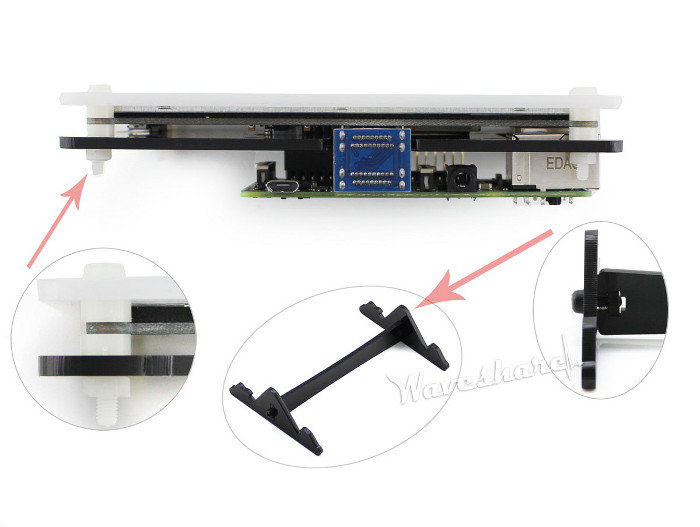

An example of a mounting the screen in the case.
Set includes
- 5" screen and resistive touch
- Connector HDMI
- Mounting screws
- Stylus touch pen
- Case for Raspberry and screen - black-and-white
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD TFT |
| Screen - diagonal | 5'' |
| Screen - interface | HDMI+GPIO |
| Screen - touch | yes |
| Screen - resolution | 800x480px |
| Colour | white |
| Case - module | Pi 4B/3B+/3B/2B |
| Case - Screen space | yes |
| Width | 15.2 cm |
| Height | 4.5 cm |
| Depth | 10.5 cm |
| Weight | 0.255 kg |
