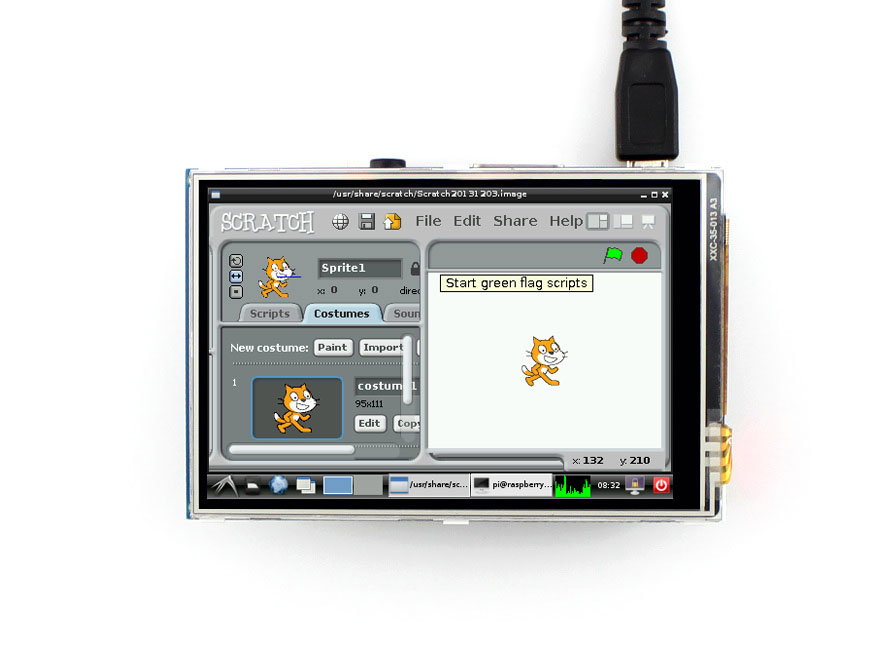

Touch screen A - resistive LCD 3,5" 320x480px GPIO for Raspberry Pi 4/3/2/B+/Zero - Waveshare 9904
Waveshare touchscreen, resistive 3.5" for the Raspberry Pi with a resolution of 320 x 480 px. Works with Raspberry Pi, version 3, 2, B+, Zero, and Zero W via the GPIO pins.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Touch screen, resistive 3.5" for the Raspberry Pi with a resolution of 320 x 480 px. Works withRaspberry Pi, version 3B, 2B, B+, Zero and Zero W via the GPIO pins - as cap for minicomputer.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
The Raspberry Piis sold separately.
The device communicates through GPIO pins - as a cap for minicomputer.
Example of connecting the screen to the Raspberry Pi.
Connection to the Raspberry Pi
In order to run the screen, you need to put a screen on the GPIO pins of the Raspberry Pi.
Software
The manufacturer has prepared the operating system with the installed drivers. The system should be unpacked using an appropriate program such as WinZip and upload to the card usingWin32 Disk Imager.
Screenshot of the programWin32 Disk Imager, when you select the system, just press the Write button and wait until the installation process is completed.
A detailed description of the connection to install drivers, without changing the Raspberry Pi, and the image of the finished system can be found onthe manufacturer's website |
GPIO interface
| Pin GPIO | Symbol | Description |
|---|---|---|
| 1, 17 | 3.3 V | Power Supply 3.3 V. |
| 2, 4 | 5V | Power Supply 5 V. |
3, 5, 7, 8, 10, 12,13,15,16 | NC | Not connected. |
| 6, 9, 14, 20, 25 | GND | Mass. |
| 11 | TP_IRQ | An interruption from the touch panel. |
| 18 | LCD_RS | Choice: commands or data to LCD panel. |
| 19 | LCD_SI/ TP_SPI | Input of data of SPI interface for the touch panel and LCD screen. |
| 21 | TP_SO | The data output of SPI interface for the touch panel. |
| 22 | RST | Reset. |
| 23 | LCD_SCK/ TP_SCK | Clock signal SPI for the touch panel and LCD screen. |
| 24 | LCD_CS | Chip select for the LCD screen. |
| 26 | TP_CS | Chip select for touch panel. |
Specification
- Screen type: resistive touch
- Diagonal: 3,5 "
- Resolution: 320 x 480 px
- SPI communication
- Works with:Raspberry Piin version 3B, 2B, B+, Zero, and Zero W (working directly with system from the manufacturer)
- Screen dimensions: 85 x 56.5 mm
The external dimensions of the screen.
Set includes
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD TFT |
| Screen - diagonal | 3.5'' |
| Screen - interface | GPIO |
| Screen - touch | yes |
| Screen - resolution | 480x320px |
| Width | 8 cm |
| Height | 10 cm |
| Depth | 2 cm |
| Weight | 0.073 kg |
