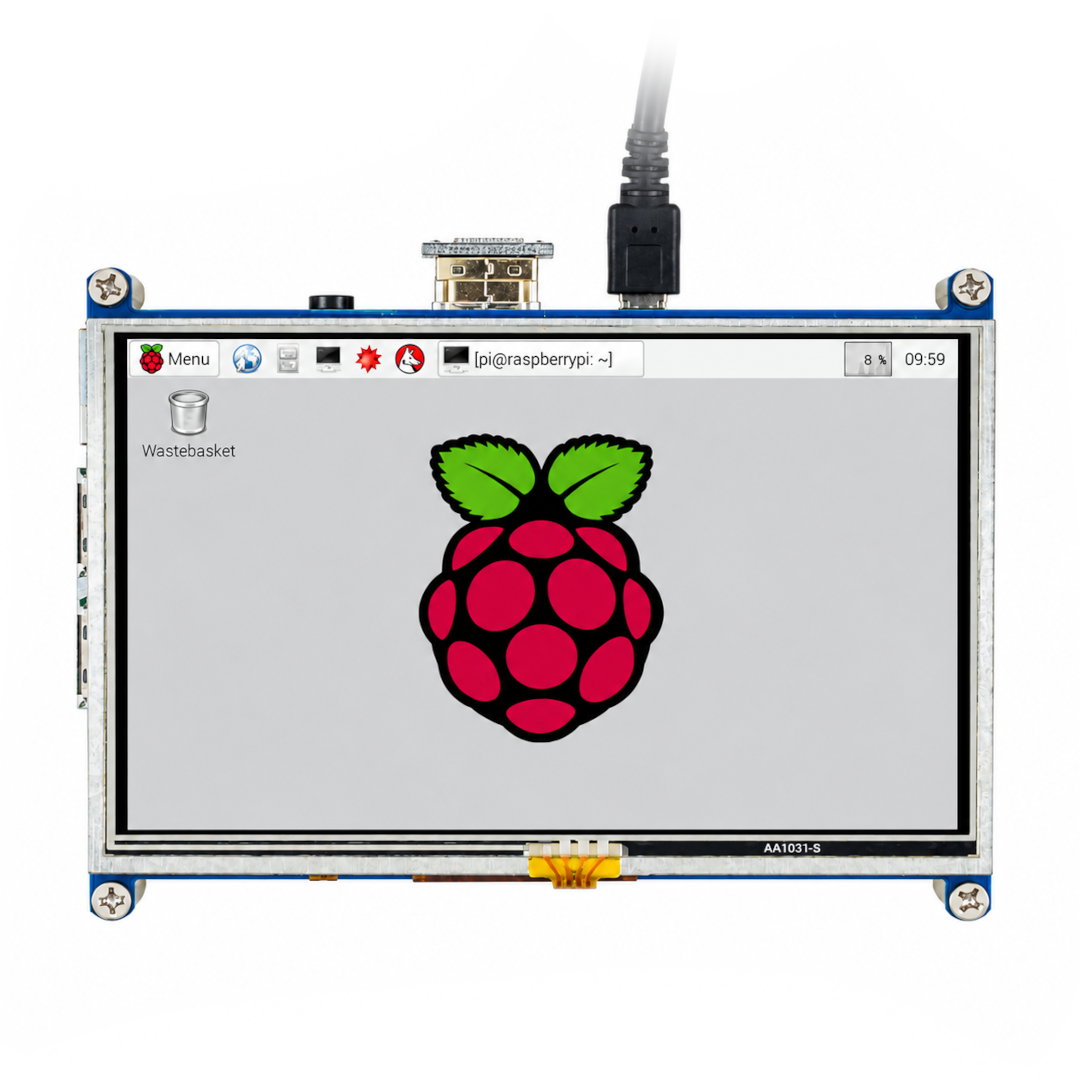

Touch screen 800x480px for Raspberry Pi - Joy-IT RB-LCD-5 5''
A compact 5" touch screen designed for projects based on Raspberry Pi. The maximum resolution of 800 x 480 px lets you conveniently display user interfaces, measurement data, control menus and basic multimedia content. The kit includes HDMI adapters for Raspberry Pi and a stylus for operating the screen.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Joy-IT RB-LCD-5 touch screen
A compact 5" touch screen designed for projects based on Raspberry Pi. The maximum resolution of 800 x 480 px lets you conveniently display user interfaces, measurement data, control menus and basic multimedia content. The manufacturer includes a dedicated HDMI adapter that lets you connect the screen directly to the Raspberry Pi. Mounting holes make it easy to fix the module securely in an enclosure or your own design. The kit includes HDMI adapters for Raspberry Pi and a stylus for operating the screen.
Touch screen 800x480px for Raspberry Pi - Joy-IT RB-LCD-5 5''.
A compact 5" touch screen designed for projects based on Raspberry Pi.
Key features
- 5" touch screen: a compact format suitable for control panels and mobile projects
- 800 x 480 px resolution: a clear image and convenient interface operation
- High image contrast: makes the displayed information easy to read
- HDMI adapter included: enables a direct connection to the Raspberry Pi
- Mounting holes: allow the screen to be fixed securely in a device or enclosure
- Designed for Raspberry Pi: the screen is prepared for easy integration with popular single-board computers
Practical applications
- Operator panels for Raspberry Pi
- Home automation projects
- IoT systems
- Robots and mobile devices
- Interfaces for measurement systems
- Small information terminals
- Multimedia and educational projects
Technical specifications
- Model: 5 Inch HDMI LCD V2 / RB-LCD-5
- Type: touch screen
- Diagonal: 5" / 12.7 cm
- Resolution: 800 x 480 px
- Touch technology: resistive
- Touch support: single touch
- Brightness: 350 cd/m²
- Viewing angle: 45°
- Compatibility: Raspberry Pi 3B, Raspberry Pi 3B+, Raspberry Pi 4B
- Operating systems: Raspbian, Ubuntu
- HDMI-HDMI adapter: 1 pc.
- HDMI-microHDMI adapter: 1 pc.
- Power interface: microUSB
- microUSB connector function: power only
- Operating temperature: 0°C to 70°C
- Dimensions: 120 x 79 x 7 mm
- Weight: 159 g
Kit contents
- Joy-IT 5 Inch HDMI LCD V2 display
- HDMI-HDMI adapter for Raspberry Pi 3B / 3B+
- HDMI-microHDMI adapter for Raspberry Pi 4B
- Stylus for the touch screen
The kit includes HDMI adapters for Raspberry Pi and a stylus for operating the screen.
| Name | Value |
|---|---|
| Screen - type | LCD TFT |
| Screen - diagonal | 5'' |
| Screen - interface | HDMI |
| Screen - touch | yes |
| Screen - resolution | 800x480px |
| Weight | 0.24 kg |
