65K RGB LCD IPS Display - 240x240px 1.54'' SPI - Waveshare 18079
IPS LCD display manufactured by Waveshare and equipped with ST7789 driver. The screen diagonal is 1.54'' and the resolution is 240 x 240 px. The module uses a 4-pin SPI interface to communicate with the controller module. It presents images in as many as 65 thousand colors of the RGB gamut. Despite the small size of the module, the displayed image is clear and legible.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: 65K RGB IPS LCD Display - 240 x 240 px 1,54'' SPI - Waveshare 18079
IPS LCD displaymanufactured byWaveshareand equipped with ST7789 driver. The screen diagonal is1.54'' and the resolution is240 x 240 px. The module usesa 4-pin SPI interfaceto communicate with the controller module. It presents images in as many as 65 thousand colors of the RGB gamut. Despite the small size of the module, the displayed image is clear and legible.

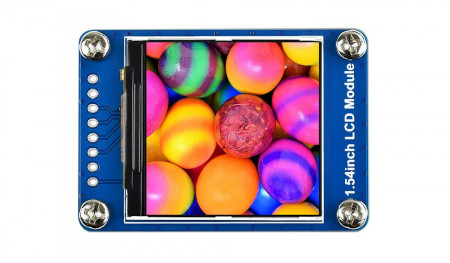

LCD IPS 65K RGB display - 240 x 240 px 1,54'' SPI.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
Product compatible with Arduino, Raspberry Pi and STM32.
The manufacturer provides aWiki page for the product, which contains a detailed user guide to make getting started with the display significantly easier. The ST7789VW driver documentation can also be found there.

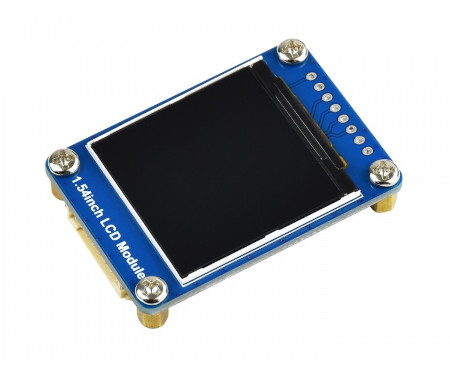

The display uses a 4-pin SPI communication interface.
Technical specification of the display
- Type: LCD IPS
- Display diagonal: 1.54 mm
- Display resolution: 240 x 240 px
- Display colors: 65K RGB
- Communication interface: SPI bus (4-wire)
- Embedded controller: ST7789
- Compatible with controllers such as Raspberry Pi / Arduino / STM32
- Supply voltage: 3.3 V / 5 V
- Display size: 27.72 x 27.72 mm
- Pixel size: 0.1155 x 0.1155 mm
- Module dimensions: 50 x 35 mm
Set contents
- IPS 65K RGB LCD display - 240 x 240 px 1,54'' SPI
- Grove 8-pin connection cable - 20 cm long
Leads description and connection diagram
The displayhas two connection options - usingGrovestandard connectors or throughsolder fieldswith a 2.54 mm pitch. Each lead on the board has been described, so you will not have any problems with the proper connection. You should connect the display module with the controller according to the following dependencies:
- VCC - power supply pin 3.3 V or 5 V
- GND - system ground
- DIN - SPI interface data line input pin
- CLK - SPI clock input pin
- CS - Chip Select
- DC - data / command select pin (high state: data; low state: command)
- RST - RESET pin
- BL - pin responsible for backlight

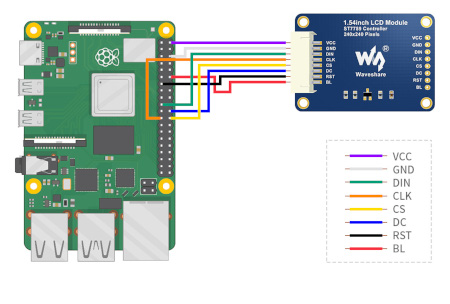

Connection diagram using Raspberry Pi minicomputer, to be purchased separately.
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD IPS |
| Screen - diagonal | 1,54'' |
| Screen - interface | SPI |
| Screen - touch | no |
| Screen - resolution | 240x240px |
| Width | 7 cm |
| Height | 2 cm |
| Depth | 5 cm |
| Weight | 0.03 kg |
