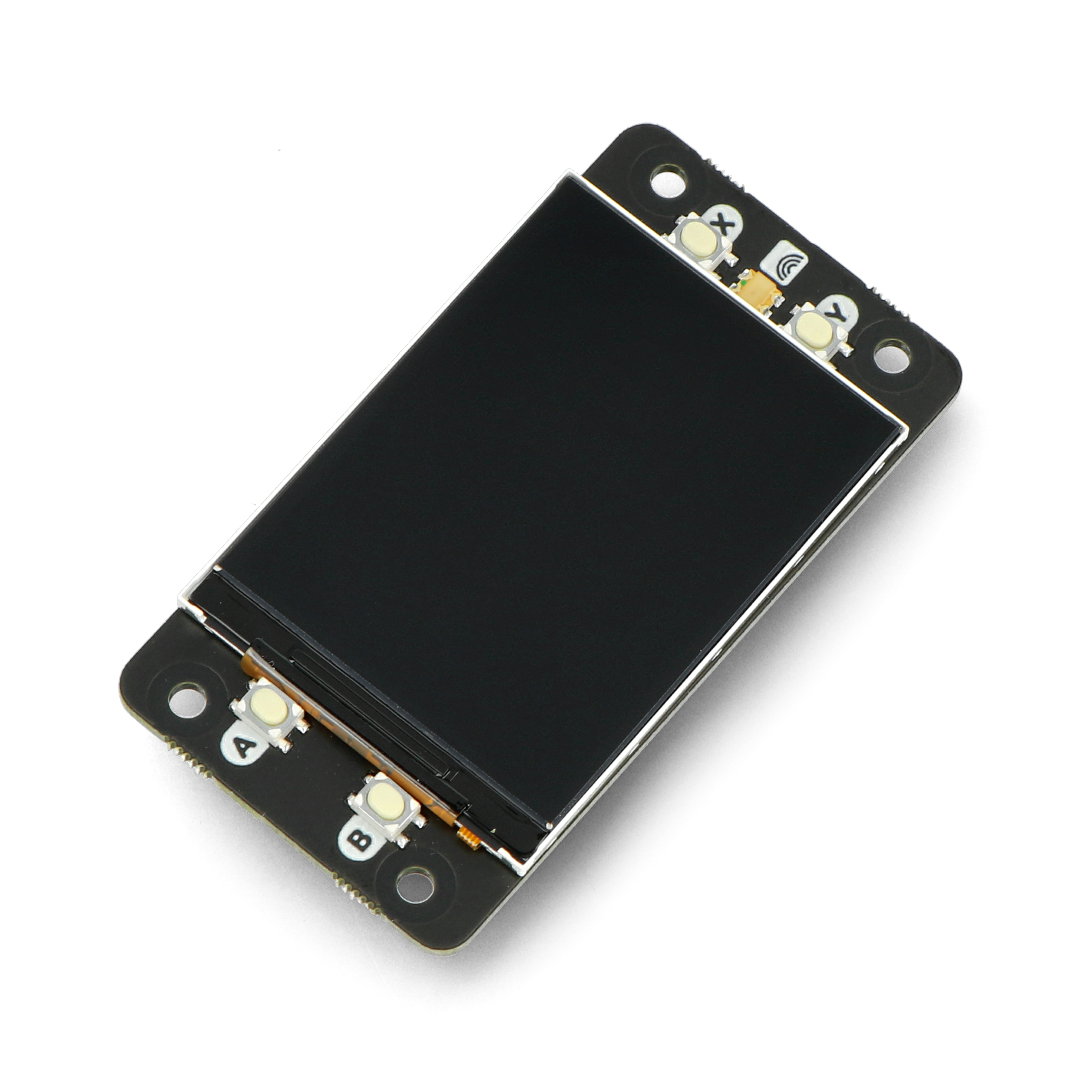

Display HAT Mini - HAT with IPS LCD 2'' 320x240px for Raspberry Pi - PiMoroni PIM589

Index: PIM-20895 EAN: 769894020548
The Display HAT Mini from Pimoroni is a display overlay designed for any 40-pin version of the Raspberry Pi. The bright, 18-bit, 2" IPS display with a resolution of 320 x 240 px communicates via an SPI interface. There are also four buttons on the module that can be used to create a simple user interface, as well as an RGB LED for notifications. The Qwiic / STEMMA QT and Breakout Garden connector allows you to connect additional modules via the I2C interface.
Display HAT Mini - HAT with IPS LCD 2'' 320x240px for Raspberry Pi - PiMoroni PIM589
€24.00
€19.51 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: PiMoroni
Compatibility: Raspberry Pi

Product description: Display HAT Mini - IPS LCD 2" 320x240px display overlay for Raspberry Pi - PiMoroni PIM589

Display HAT Mini from Pimoroni is a display overlay designed for any 40-pin version of Raspberry Pi. The bright, 18-bit, 2" IPS display with a resolution of 320 x 240 px communicates via an SPI interface. There are also four buttons on the module that can be used to create a simple user interface, as well as an RGB LED for notifications. The Qwiic / STEMMA QT and Breakout Garden connector allows additional modules to be connected via the I2C interface. The display overlay is larger than the standard mini HAT and pHAT and is about 5 mm longer than the Pi Zero, but can still be used with this model. The Display HAT Mini allows you to create a simple IoT panel, photo frame or gif-box, as well as a monitor to display news, tweets or information from other APIs. The display has a 3:2 aspect ratio, perfect for retro gaming.

Nakładka z wyświetlaczem Display HAT MiniOverlay with display and buttons - Display HAT Mini for Raspberry Pi.
Nakładka Do Raspberry PiGPIO display for Raspberry Pi.

Main features of Display HAT Mini

  • IPS LCD display with 2.0" diagonal and 320 x 240 px resolution
  • Communication: SPI
  • Colors: ~220 PPI, 65K
  • 4 x tact-switch button
  • Qw/ST (Qwiic / STEMMA QT) connector
  • Breakout Garden / I2C connector
  • Soldered connector for Raspberry Pi 40-pin GPIO
  • Fully assembled
  • No soldering required
  • Dimensions: 65.5 x 35 x 9 mm
  • Usable space size: 40.8 x 30.6 mm

Overlay software

Product has provided a Display HAT Mini library to help you get started with the module. The library contains several sample programs using the display, buttons, and LED from Pygame. You can also use the Python ST7789 library, which shows you how to write and draw on the screen using PIL to display shapes, text and gifs.

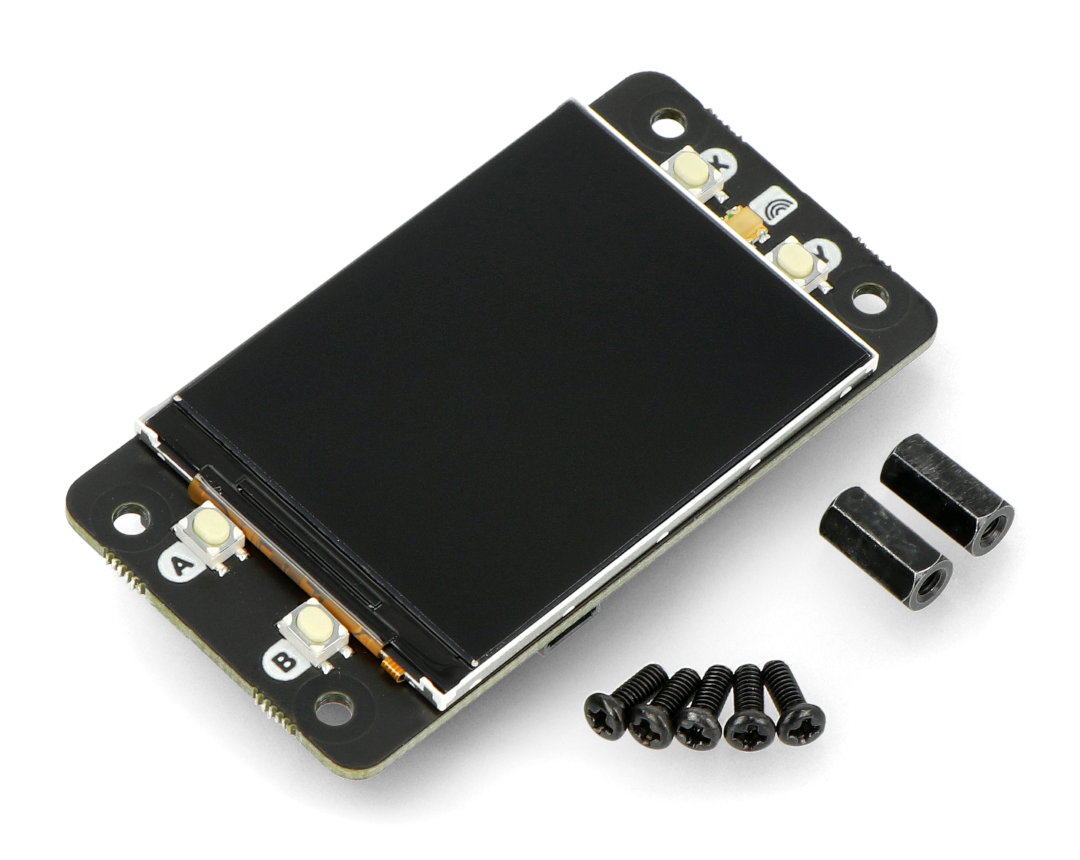

The kit includes

  • Display HAT Mini overlay
  • 2 x spacer 10 mm
Zawartość zestawuKit contents.

Screen - type LCD IPS
Screen - diagonal 2.0''
Screen - interface GPIO
Screen - touch no
Screen - resolution 320x240px
Package width 8 cm
Package height 12 cm
Package depth 1 cm
Package weight 0.025 kg
