Product description: Display 2.8 '' for Raspberry Pi Zero - Argon POD
The 2.8 '' display designed by Argon40 is compatible with Raspberry Pi Zero , Zero W , Zero 2 W and other modules from the Argon POD series. Display 2.8 '' connects directly to the Argon POD housing using a 40-pin GPIO connector. The display has four function buttons located in the lower part of the housing, which is made of aluminum for better protection of the display. The black construction with cut corners and a minimalist design make the housing highly aesthetic and look great in ready-made projects.
The 2.8 '' display is part of the 5-piece Argon POD set. Other items can be purchased separately. The kit includes:
- HDMI-USB Hub module
- USB-LAN module
- Argon POD housing
- UPS module
2.8 '' display for Raspberry Pi Zero - Argon POD.

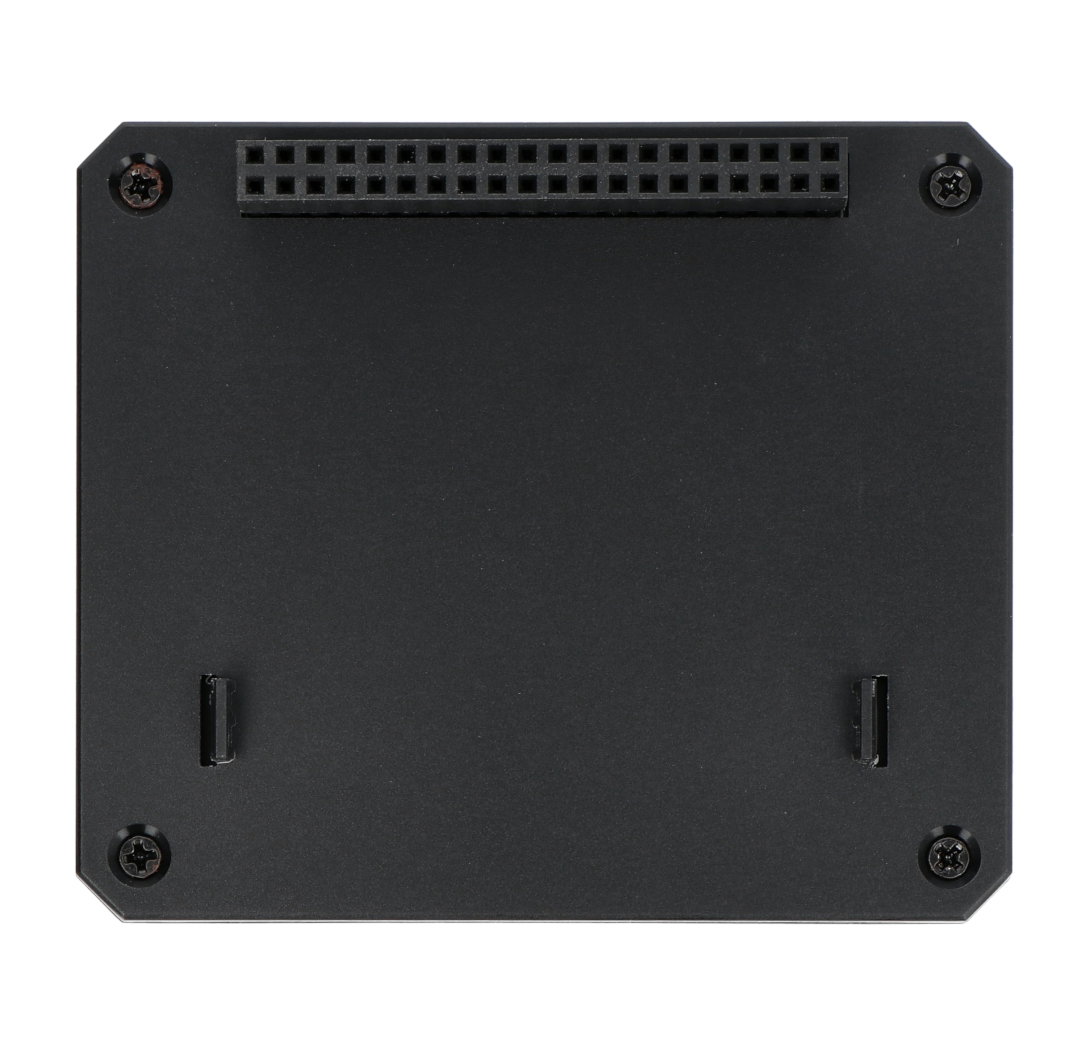

2.8 '' display for Pi Zero - bottom view .Connection with the Raspberry Pi
The connection of the screen to the Raspberry Pi is possible thanks to the GPIO connectors located on the back wall of the display housing.
Installation of drivers for the 2.8 '' Argon POD display
- Open a terminal on the Raspberry Pi, this can be done via SSH or by connecting another display and keyboard.
- An internet connection is required.
- Enter the command "curl https://download.argon40.com/podsystem.sh | bash" to start the driver installation.
- Select the appropriate menu settings, then restart your computer.
- Enter "argonpod-config" to enter POD SYSTEM
CONFIG. - The command "argonpod-uninstall" is used to uninstall the POD script
Technical specification of the display
- Product model: A22-005 AR-POD-LAN
- Display diagonal: 2.8 ''
- Interfaces:
- 4x GPIO button
- 1x 40 pin female connector
- Power supply: 5V / 3A
- Compatible with:
- Raspberry Pi Zero
- Raspberry Pi Zero W
- Raspberry Pi Zero 2 W
- Case for Raspberry Pi Zero from the Argon POD series
- Housing material: aluminum
- Dimensions: 80 x 68 x 23 mm

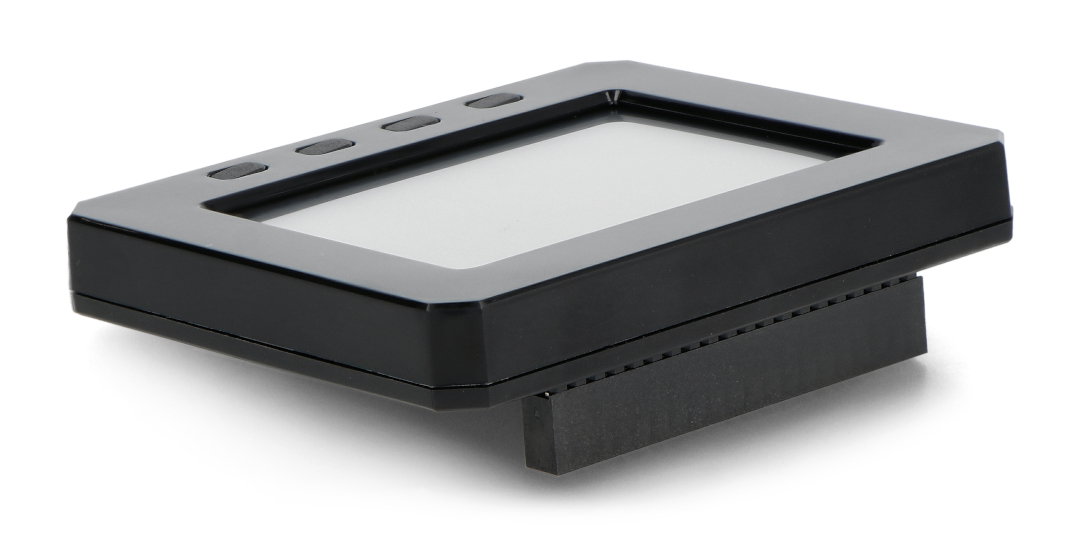

2.8 '' display for Raspberry Pi Zero - side view .
