Touch screen C - capacitive LCD 7'' 1024x600px HDMI + USB for Raspberry Pi 3/2/B+/Zero - Waveshare 11199

Index: WSR-04688 EAN: 5904422333010

Capactive touchscreen Waveshare 7 " for Raspberry Pi with a resolution of 1024 x 600 px. Works with Raspberry Pi in versions 4B, 3B+ 3B+ 2B, 1B+, 1B, 1A and Zero and Zero W via HDMI and USB cable.

Touch screen C - capacitive LCD 7'' 1024x600px HDMI + USB for Raspberry Pi 3/2/B+/Zero -...
€46.00
€37.40 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Description

Capacitive touch screen 7" for Raspberry Pi with a resolution of 1024 x 600 px. Works withRasbperry Pi in versions 4B, 3B+, 3B, 2B and B+with HDMI connector and microUSB - cables are included in the package. The device also works with minicomputers:Banana PiandBeagle Bone Black.



The device communicates via HDMI cable (picture) and microUSB port (touch). Both wires are included in the package.



Connecting to Raspberry Pi

In order to run the screen, you must connect the device to a Raspberry Pi via the supplied wires: HDMI and microUSB. HDMI connector transmits the image and USB port receives data of the touch interface.

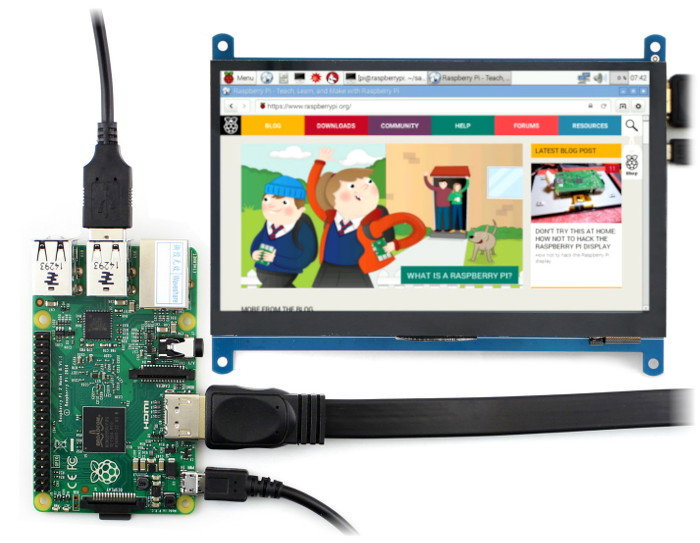

Example of connecting the screen to Raspberry Pi.





Software

The screen works with the latest operating system Raspbian without the need to install drivers. However, in order for the screen to display the picture properly, you have to change the resolution in the configuration file. To do this, open the file config.txt command:

  • sudo nano /boot/config.txt

and then at the end add the following statements:

  • max_usb_current=1
  • hdmi_group=2
  • hdmi_mode=87
  • hdmi_cvt 1024 600 60 6 0 0 0
  • hdmi_drive=1



After saving the file and rebooting the Raspberry, the screen and the touch function should work fine.

A detailed description can be found onthe website of the manufacturer.





Specification

  • Screen type: IPS touch, capacitive
  • Diagonal: 7 "
  • Resolution: 1024 x 600 px
  • Standard HID Protocol integrating itself with the system
  • Works with:
  • The display also works with PCs with Windows 7/8/8.1/10 without the need to install drivers
  • Also works with all other HDMI devices (touch function not available)
  • 4 mounting holes (screws included in the package)
  • Screen size: 165 x 107 mm

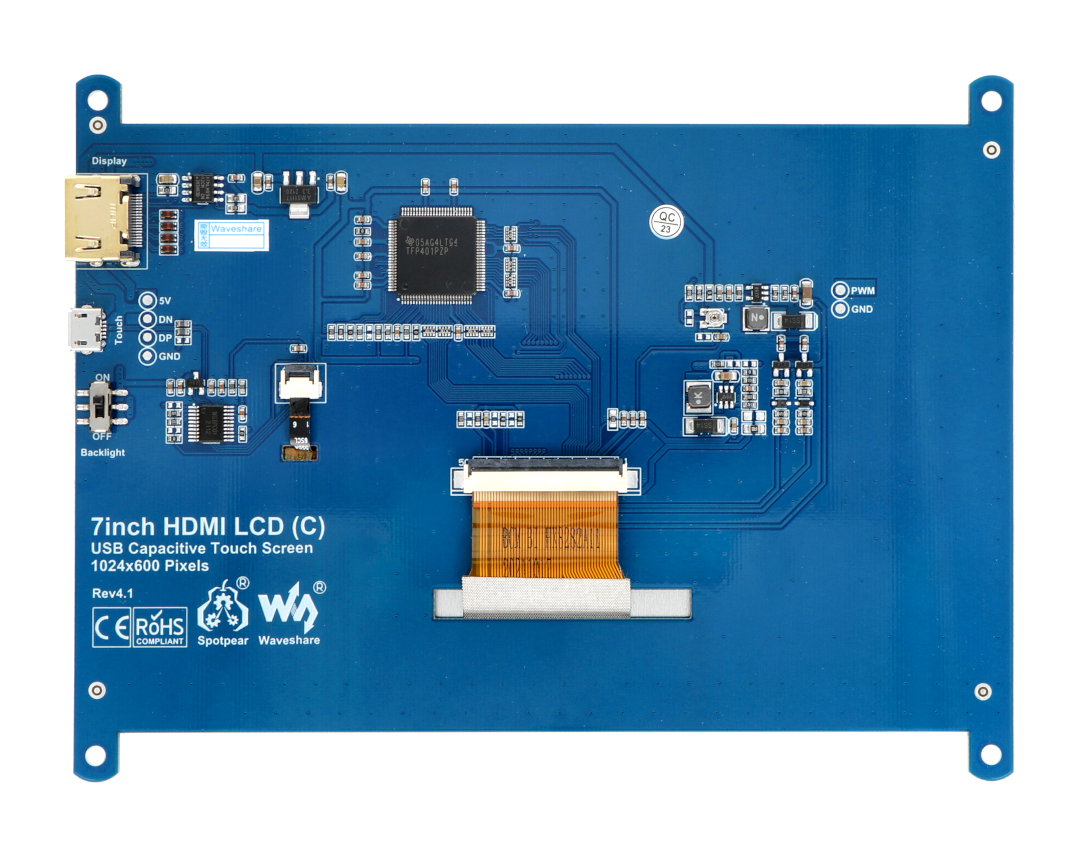

The screen has mounting holes.



Set includes

  • Touchscreen 7" capacitive
  • HDMI cable
  • Adapter HDMI - microHDMI
  • Screws for mounting
  • USB cable - microUSB for touch interface
  • Screen protective fiol
  • Screen cleaning cloth



Case

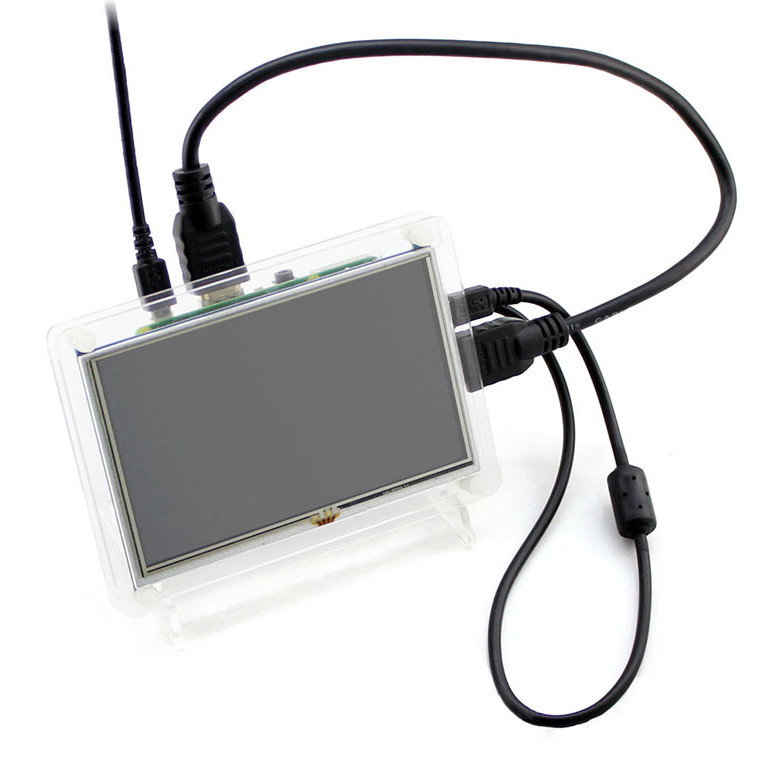

In our offer you willalso find a special case and a full kit containing the 7" screen and case.



In our offer you will also find a kit containing a screen 7" and a special case.



Advantages

  • High-quality display with a resolution of 1024 x 600 px.
  • Capacitive touchscreen with good touch sensitivity, similar to a smartphone.
  • Compatible with multiple Raspberry Pi versions and other minicomputers like Banana Pi and Beagle Bone Black.
  • No need for additional drivers when used with Raspbian or Windows PCs.
  • Includes all necessary cables (HDMI and microUSB) and mounting hardware.
  • Supports standard HID protocol, integrating seamlessly with systems.
  • Comes with useful accessories such as a screen protective foil and cleaning cloth.

Disadvantages

  • Requires minor configuration changes in the config.txt file for proper resolution display on Raspberry Pi.
  • Some users find the pinout of the connectors to be inconvenient.

AI generated based on user reviews

Screen - type LCD IPS
Screen - diagonal 7''
Screen - interface HDMI+USB
Screen - touch yes
Screen - resolution 1024x600px
Package width 15 cm
Package height 5 cm
Package depth 20 cm
Package weight 0.368 kg

Marek

11/02/21

Question: Hello, what is the difference between touch screen C and touch screen H ??
Answer: The H version is richer with a jack connector and power and function buttons.
