Product description: Raspberry Pi Touch Display 2 Portrait - 5'' 720 x 1280 px capacitive DSI touchscreen for Raspberry Pi
The Raspberry Pi Touch Display 2 is a 5-inch touchscreen that allows for convenient operation of Raspberry Pi minicomputers. Its native portrait orientation makes it ideal for applications where portrait content is a priority, such as control panels, information systems, or IoT terminals. The screen offers a 720 x 1280 px resolution, 24-bit color, and a wide 85° viewing angle , ensuring clear images from almost any perspective. The built-in capacitive touchscreen recognizes the touch of up to five fingers simultaneously, enhancing user comfort.

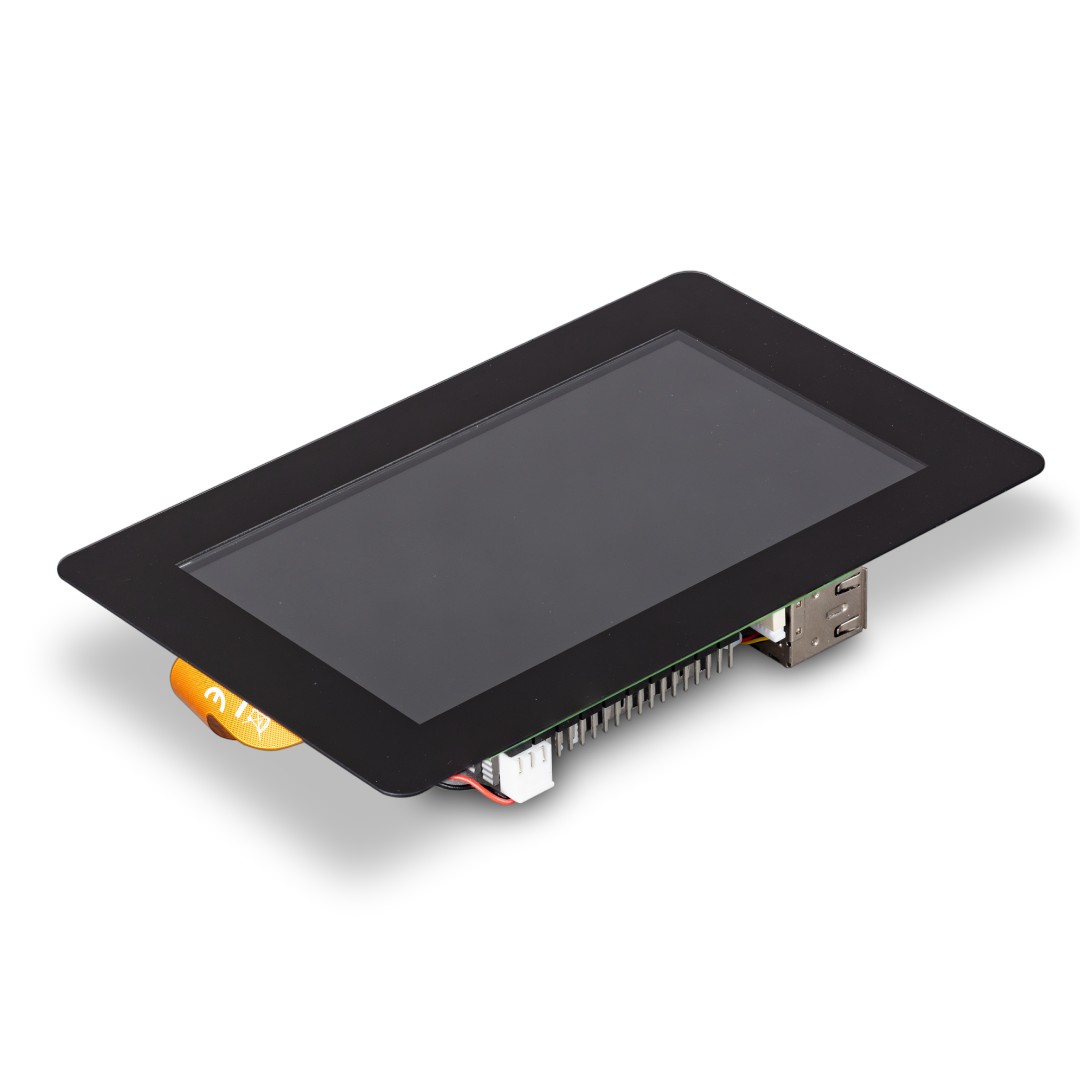

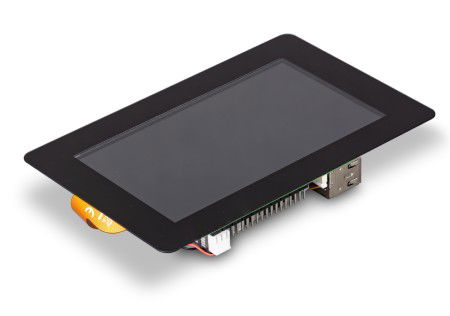

Raspberry Pi Touch Display 2 Portrait - 5'' 720 x 1280 px capacitive DSI touchscreen for Raspberry Pi.
The official Raspberry Pi touchscreen.
Main features of the Raspberry Pi screen
- Native portrait orientation : perfect for dashboards, information kiosks, and IoT devices
- 5'' IPS matrix : 5-inch display ensuring natural color reproduction
- Resolution 720 x 1280 px : high image detail
- Wide viewing angle of 85° : clear image regardless of perspective
- Five-point touch support : precise control and high responsiveness
- Full compatibility with Raspberry Pi : seamless integration via DSI connector
Modern design in vertical orientation
The Raspberry Pi Touch Display 2 (5'' Portrait) is a screen designed to maximize the capabilities of the Raspberry Pi in applications requiring portrait orientation . The 5-inch display with a resolution of 720 x 1280 pixels provides detailed and sharp image reproduction, which is especially important for control panels, automation systems, and IoT projects. Its compact dimensions make it easy to integrate into a variety of designs , even with limited mounting space.
Exceptional image quality and responsive touch
The 24-bit RGB palette ensures rich, vibrant colors, while the wide 85° viewing angle allows for clear content regardless of the user's position. The built-in capacitive touch panel with five-point touch provides smooth and precise response, making the screen intuitive to use in both industrial and educational settings.

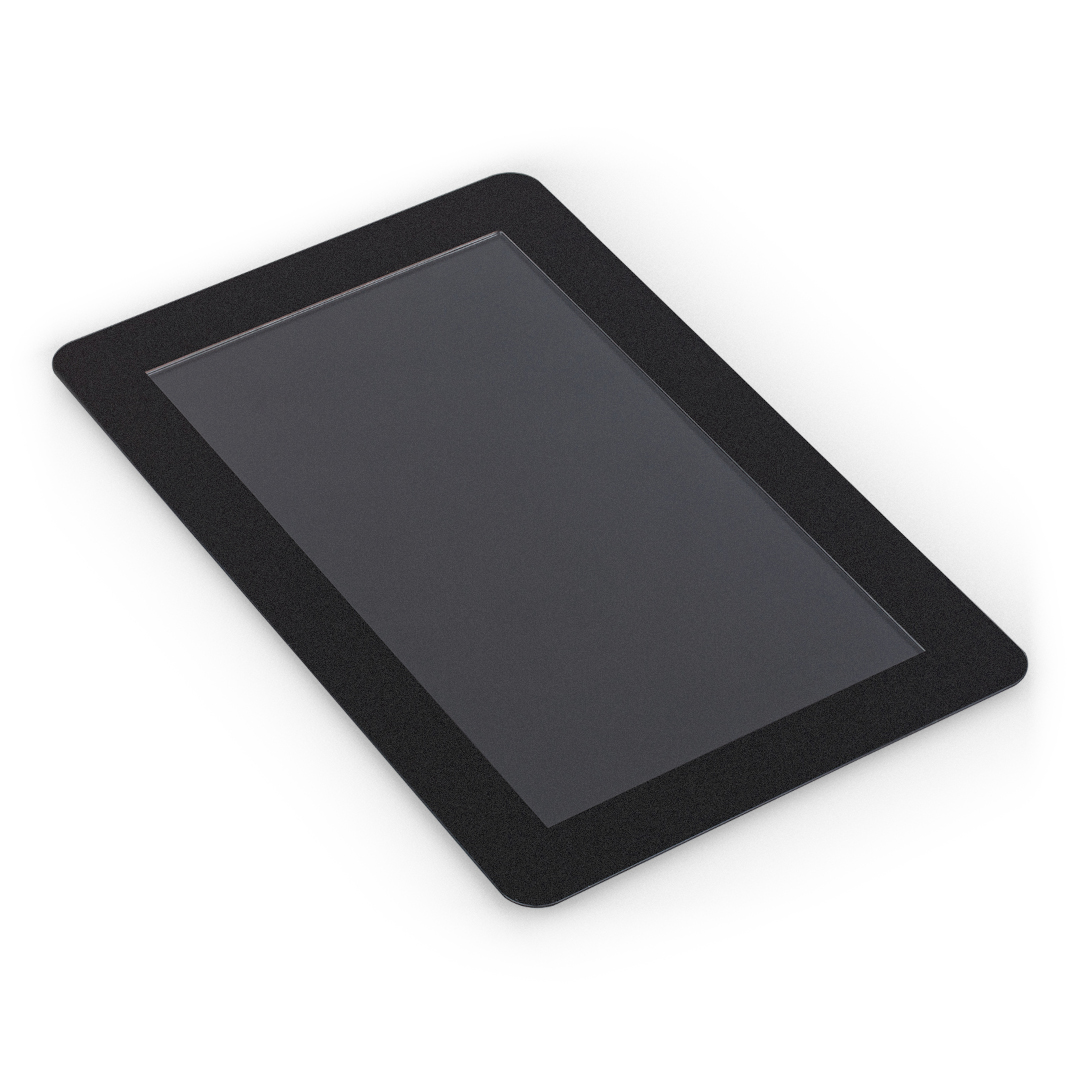

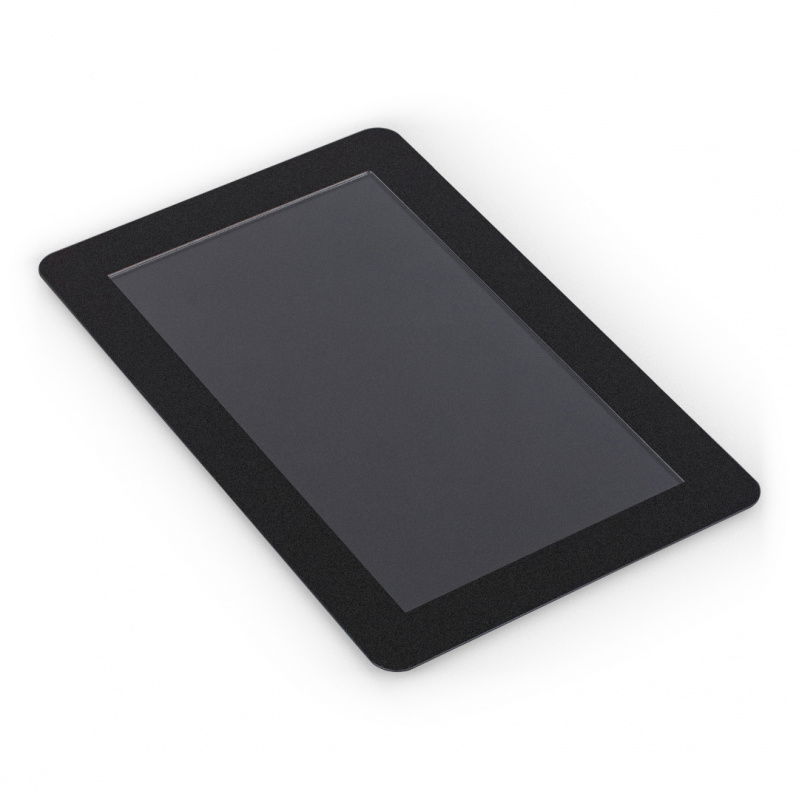

The screen offers a resolution of 720 x 1280 pixels, a 24-bit color palette and a wide viewing angle.

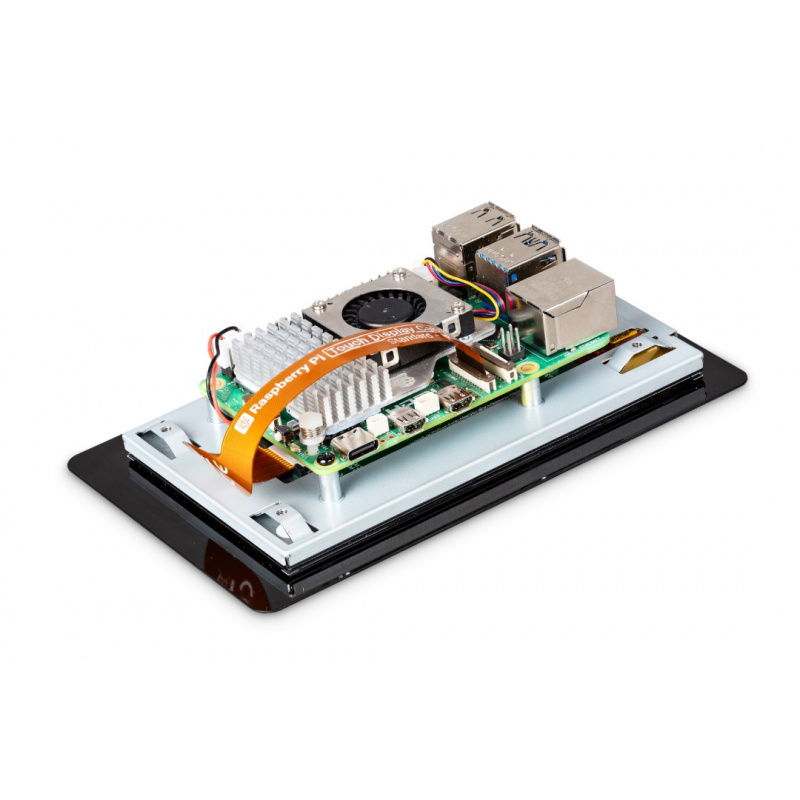

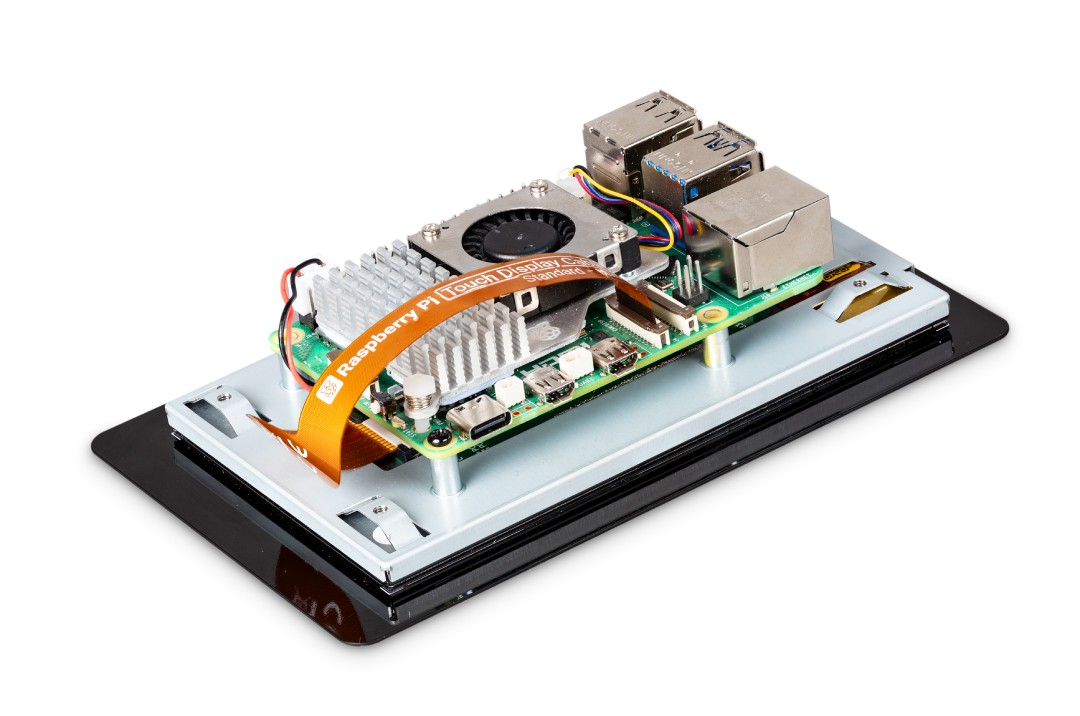

The screen connects seamlessly to the Raspberry Pu via the DSI connector.
Compatibility and easy integration with Raspberry Pi
The Raspberry Pi Touch Display 2 is designed for full compatibility with Raspberry Pi computers . Connecting via the DSI connector allows for quick setup without the need for additional drivers. Its lightweight (150g) and robust construction make it easy to install, and built-in mounting hardware allows for quick installation in the enclosure.
Versatility of applications
Thanks to the combination of compact size, high image quality and multi-touch, the screen is perfect for, among others,:
- Control panel for industrial automation and smart home systems
- Interactive information kiosk or sales terminal
- Educational display for learning programming and electronics
- Multimedia interface in video projects and interactive presentations
| Raspberry Pi Touch Display 2 Portrait Specifications | |
|---|---|
| LCD type | TFT |
| Diagonal | 5'' |
| Resolution | 720 x 1280 px |
| Viewing angle | 85° |
| Screen type | Capacitive panel with multi-touch function |
| Matrix | Anti-reflective |
| Number of supported touch points | 5 points |
| Color palette | 24-bit RGB |
| Communication | DSI |
| Dimensions | 143.5 x 92 x 10.5 mm |
| Mass | 150 g |
