Touch Screen (H) - capacitive LCD 13,3'' 1920x1080px HDMI+USB V2 for Raspberry Pi 4B/3B+/3B/Zero - Waveshare 16644

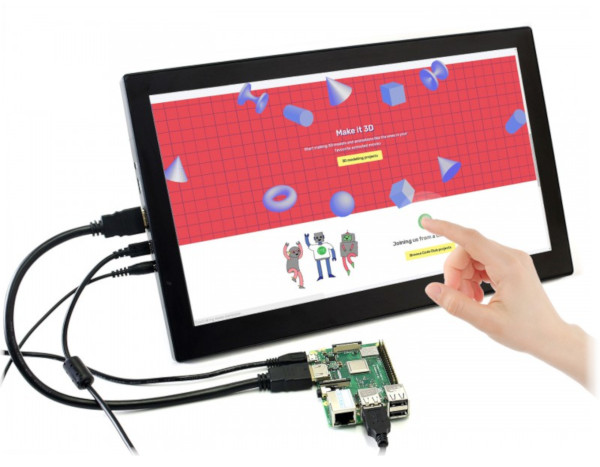

13.3" IPS screen with Full HD 1920 x 1080 px resolution and capacitive touch. The display communicates via HDMI and USB. It is covered with tempered glass of 6H hardness and closed in a black case. It is equipped with a high quality ferrite speaker and a 3.5 mm mini jack connector. The screen is compatible with Raspberry Pi 4B / 3B+ / 3B / Zero / Zero W.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
Product description: Waveshare 13.3'' IPS capacitive LCD touch screen (H) 1920x1080px HDMI+USB V2 for Raspberry Pi 4B/3B+/3B/Zero
A13.3"IPS screen withFull HD 1920 x 1080 pxresolution and capacitive touch. The display communicates viaHDMI and USB. It is covered withtempered glassof6Hhardness and closed ina black case. It is equipped with a high qualityferrite speakerand a3.5 mm mini jackconnector. The screen is compatible withRaspberry Pi 4B / 3B+ / 3B / Zero / Zero W. Also included is an HDMI cable, micro HDMI to HDMI adapter and 12V power supply.
The screen communicates through HDMI (image) and microUSB (touch), it also requires an additional 12V power supply. The cables and the appropriate power supply are included in the delivery.

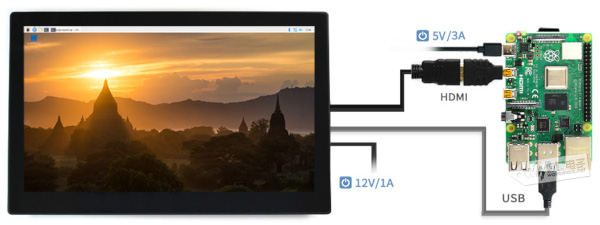

Connection diagram from Raspberry Pi 4B.
Connection with Raspberry Pi
Use the supplied cables for proper operation of the screen with the minicomputer: HDMI and microUSB. When using Raspberry Pi 4B, use the microHDMI - HDMI adapter, which is also included in the package.The HDMI connector transmits an image, the USB port receives the touch interface data.The screen requires an additional 12V power supply, the manufacturer has included a suitable power supply.
Screen software
The screen works with the latest Raspbian system without installing additional drivers. However, for the image to be displayed correctly, you need to change the resolution in the configuration file. To do so, open config.txt file with a command:
Instructions to open config.txt
- sudo nano /boot/config.txt
and then add the following instructions at the end:
Configuration Instructions
- max_usb_current=1
- hdmi_group=2
- hdmi_mode=82
- hdmi_cvt 1920 1080 60 6 0 0 0
After saving the file and restarting the raspberry, the image and touch function should work properly.
For a detailed description of the connection, seethe manufacturer's website. |
External dimensions of the screen.
Waveshare 13.3" screen specification
- Type: IPS
- Type: tactile, capacitive
- Diagonal: 13,3"
- Resolution: Full HD 1920 x 1080 px
- Power supply: 12 V (power supply included)
- Covering: tempered glass 6H
- Menu: multilingual - power, brightness, contrast control, etc.
- Audio: 3.5 mm mini jack, HDMI, Hi-Fi ferrite speaker
- Supports VGA (HDMI cable required - VGA, not included)
- Housing: black with 60° feet
- Mounting holes: 100 x 100 mm M4
- He works with: Raspberry Pi, Jetson Nano, BeagleBone Black, Windows, Xbox, PlayStation, Nintendo, etc.
- Dimensions: 329.5 x 208 mm
The set includes
- 13.3" touch screen, capacitive
- 12 V power supply
- HDMI cable
- HDMI to micro HDMI adapter
- USB cable A - microUSB
- Operating instructions
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD IPS |
| Screen - diagonal | 13.3'' |
| Screen - interface | HDMI+USB |
| Screen - touch | yes |
| Screen - resolution | 1920x1080 px |
| Width | 43.5 cm |
| Height | 5.9 cm |
| Depth | 24.5 cm |
| Weight | 1.5 kg |
