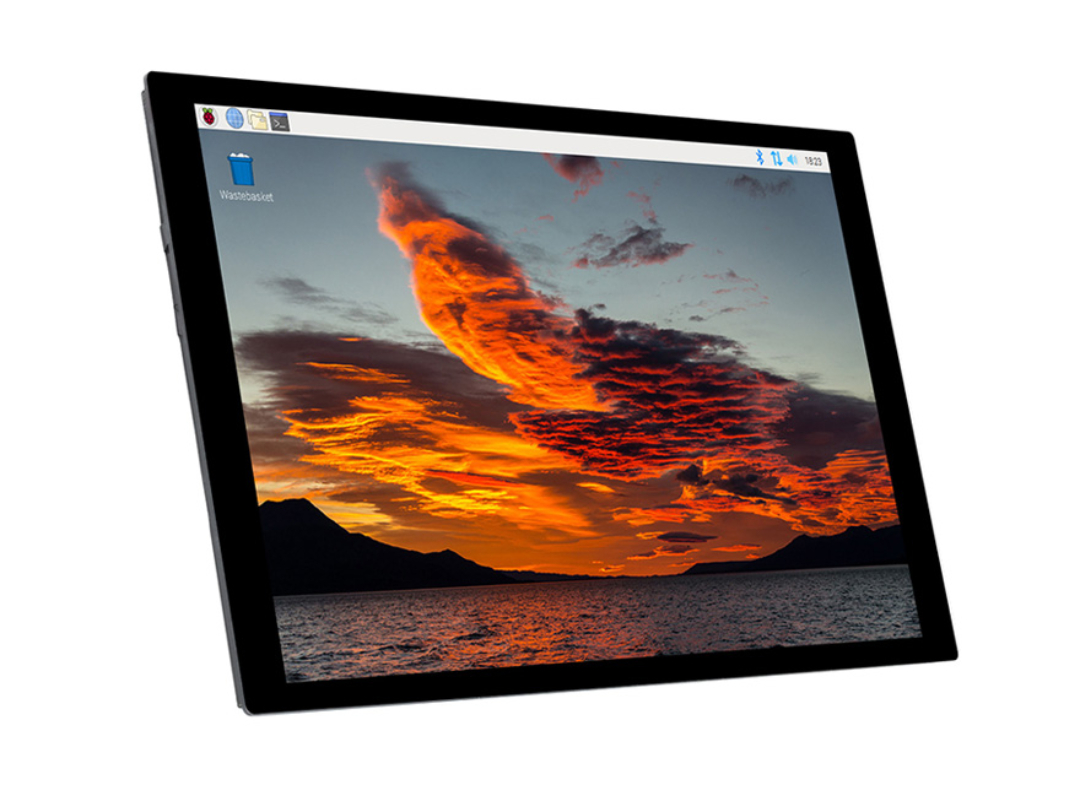

Product description: LCD IPS capacitive touchscreen 8'' 1280 x 800 px HDMI + USB for Raspberry Pi, Jetson Nano and PC - Waveshare 23741
The Waveshare display is a universal solution for embedded, educational, multimedia and commercial projects. The high-quality IPS matrix with a resolution of 1280 x 800 px provides vivid colors, a wide viewing angle (178°) and high image detail. The touch panel uses capacitive technology with support for 10 touch points (depending on the operating system) and optical bonding, which improves readability, eliminates reflections and prevents dust from settling. The outer layer is tempered glass with a hardness of 6H , which effectively protects the screen in difficult conditions. The display works with Raspberry Pi (all models), Jetson Nano and Windows PCs, without the need to install additional drivers. Brightness and contrast can be adjusted using the built-in on-screen menu (OSD).
LCD IPS capacitive touchscreen 8'' 1280 x 800 px HDMI + USB for Raspberry Pi, Jetson Nano and PC - Waveshare 23741.
The Waveshare display is a universal solution for embedded, educational, multimedia and commercial projects.Special features of the display
- High-resolution IPS screen - 1280 x 800 px at 8 inches and a wide viewing angle of 178° provides a clear, saturated image
- 10-point touchpad - support for multiple touch points on Windows and Raspberry Pi OS without installing drivers
- Tempered glass and optical bonding g - scratch-resistant surface and no light reflection effect, better protection and higher contrast
- Full compatibility - works with Raspberry Pi, Jetson Nano and computers with Windows 7 to 11
- Easy integration - HDMI for display and USB Type-C for touch enable quick setup
- Brightness and contrast adjustment - display configuration via OSD menu
IPS display with tempered glass - durability and aesthetics
In addition to excellent technical parameters, the screen is distinguished by its solid construction. Tempered glass with a hardness of 6H protects the surface from scratches and mechanical damage, which is particularly important in industrial and educational applications. Optical bonding not only improves visibility in bright environments, but also prevents dust from entering the screen layers, which translates into a longer lifespan of the device.
The high-quality IPS matrix with a resolution of 1280 x 800 px ensures vivid colors, a wide viewing angle (178°) and high image detail.
The display works with Raspberry Pi (all models), Jetson Nano, and Windows PCs without the need to install additional drivers. Display Technical Specifications
- Screen diagonal: 8"
- Resolution: 1280 x 800 px
- Matrix type: IPS
- Viewing angle: 178°
- Touch panel: capacitive, 10 points
- Bonding technology: optical bonding
- Touch Transmission: USB Type-C
- Image connector: HDMI
- Power supply: via USB Type-C
- Supported systems:
- Raspberry Pi OS (multi touch)
- Ubuntu / Kali / Windows 10 IoT (single-touch)
- Retropie (plug & play)
- Windows 7/8/10/11 (multi-touch)
- Ubuntu (Jetson Nano, single-touch)
- Parameter adjustment: OSD (brightness, contrast)
- Audio output: 3.5mm jack + 4-pin connector
- Dimensions: 194 x 119 x 11 mm
Kit Contents
- Touchscreen display
- USB cable for touch transmission
- HDMI cable
- Control Button Panel
- Cable for button panel
- USB to USB Type-C Adapter x2
- HDMI to microHDMI adapter
- HDMI adapter (full size)
- Set of mounting screws
