2,4'' 240x320px LCD display - SPI - 65K RGB - for Raspberry Pi, Arduino, STM32 - Waveshare 18366

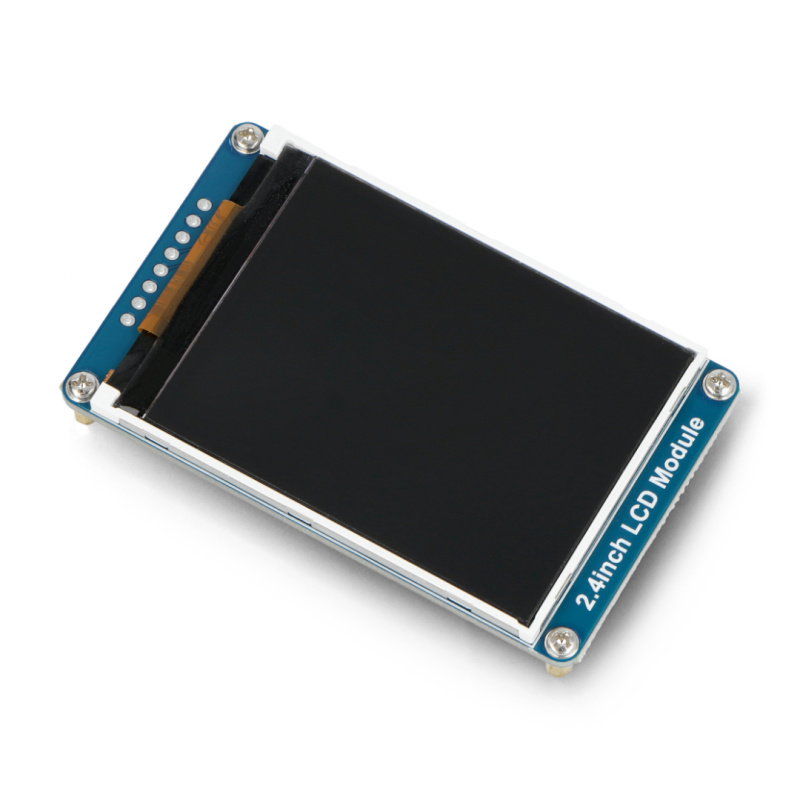

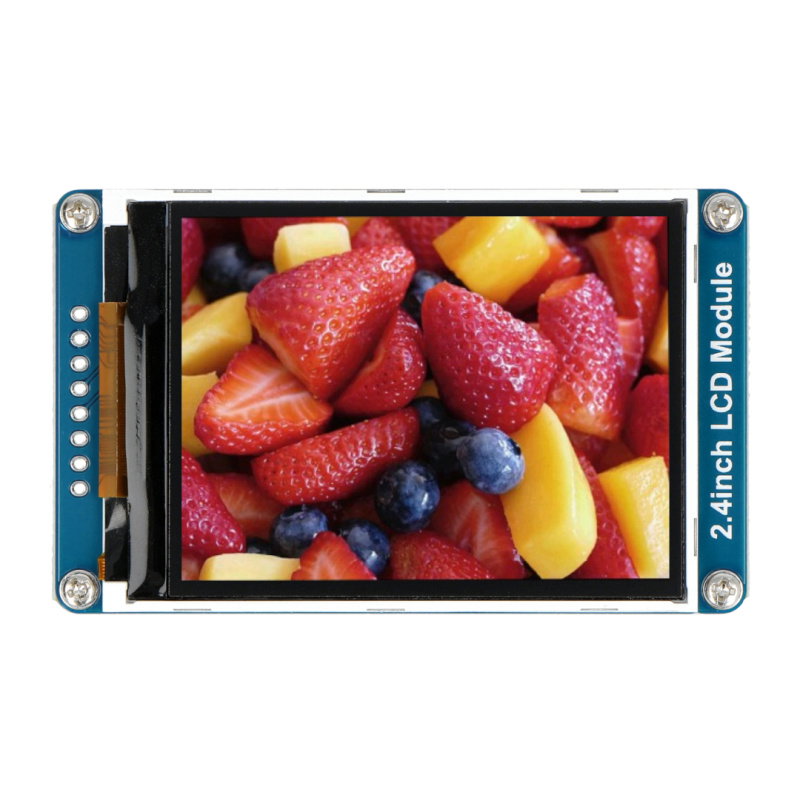

TFT LCD display designed to work with boards such as Raspberry Pi, Arduino or STM32. The module is equipped with the ILI9341 driver, it communicates via the SPI interface. The diagonal of the screen is 2.4 " , and its resolution is 240 x 320 px . The display presents an image in a range of 65,000 colors included in the RGB gamut. The size of a single pixel is 0.153 x 0.153 mm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 2.4'' LCD display 240 x 320 px - SPI - 65K RGB - for Raspberry Pi, Arduino, STM32 - Waveshare 18366
TFT LCD display designed to work with boards such as Raspberry Pi, Arduino or STM32. The module is equipped with the ILI9341 driver, it communicates via the SPI interface. The diagonal of the screen is 2.4 " , and its resolution is 240 x 320 px . The display presents an image in a range of 65,000 colors included in the RGB gamut. The size of a single pixel is 0.153 x 0.153 mm.
LCD display 2.4'' 240 x 320 px - SPI - 65K RGB - for Raspberry Pi, Arduino, STM32 - Waveshare 18366.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
The manufacturer provides a product wiki page , which contains information about the pinout of the module and a detailed user guide. You will also learn how to connect the display.
Diagram of connecting the display to the Raspberry Pi.

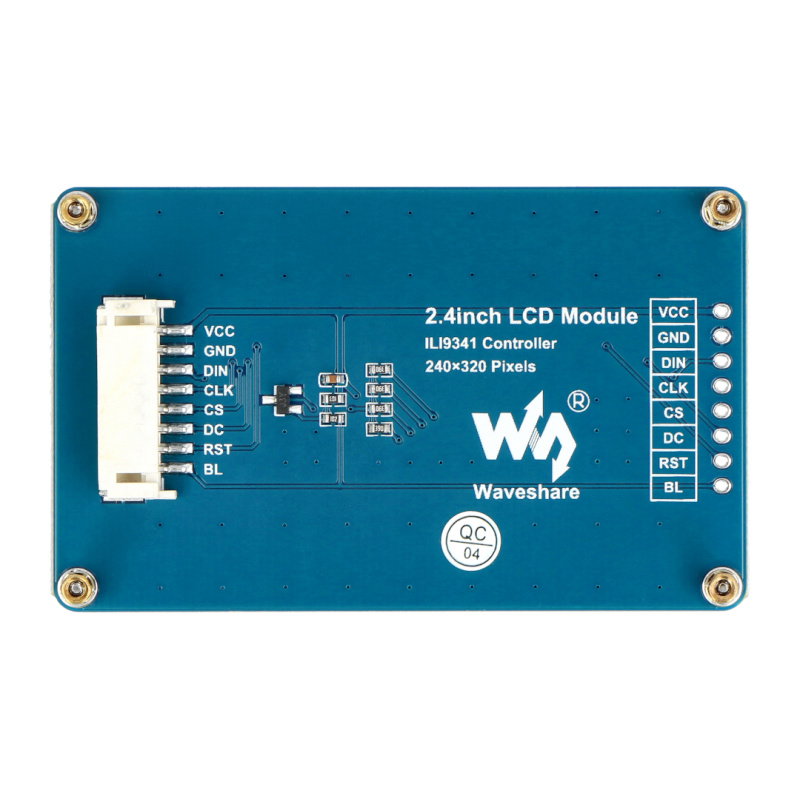

Display leads
The module is equipped with a connector to which the included cable should be connected. Among the pins of the display there are pins:
- VCC - supply voltage 3.3 V / 5 V
- GND - system ground
- DIN - SPI bus data input
- CLK - SPI bus clock input
- CS - Chip Select (activated low)
- DC - Data/command selection
- RST - reset pin
- BL - backlight
Display technical specification
- Supply voltage: 3.3V / 5V
- Communication interface: SPI bus, 4-wire
- Screen Type: LCDTFT
- Control chip: ILI9341
- Diagonal: 2.4"
- Resolution: 240 x 320 px
- Number of colors displayed: 65k RGB
- Dimensions of one pixel: 0.153 x 0.153 mm
- Display dimensions: 36.72 x 48.96 mm
- Module dimensions: 70.50 x 43.30 mm

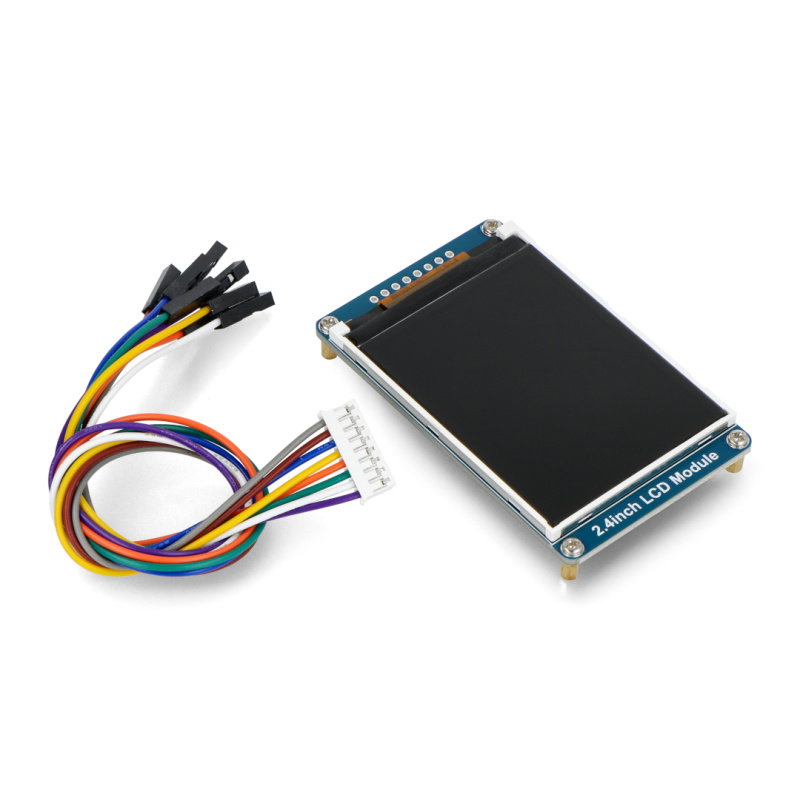

Kit contents
- LCD display 2.4'' 240 x 320 px - SPI - 65K RGB - for Raspberry Pi, Arduino, STM32 - 1 piece
- 8pin connection cable - pitch 2 mm - 20 cm - 1 piece
The subject of the sale is the display and the connection cable, other components can be purchased separately.
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD TFT |
| Screen - diagonal | 2.4'' |
| Screen - interface | SPI |
| Screen - touch | no |
| Screen - resolution | 240x320px |
| Width | 7 cm |
| Height | 8 cm |
| Depth | 2.8 cm |
| Weight | 0.042 kg |
